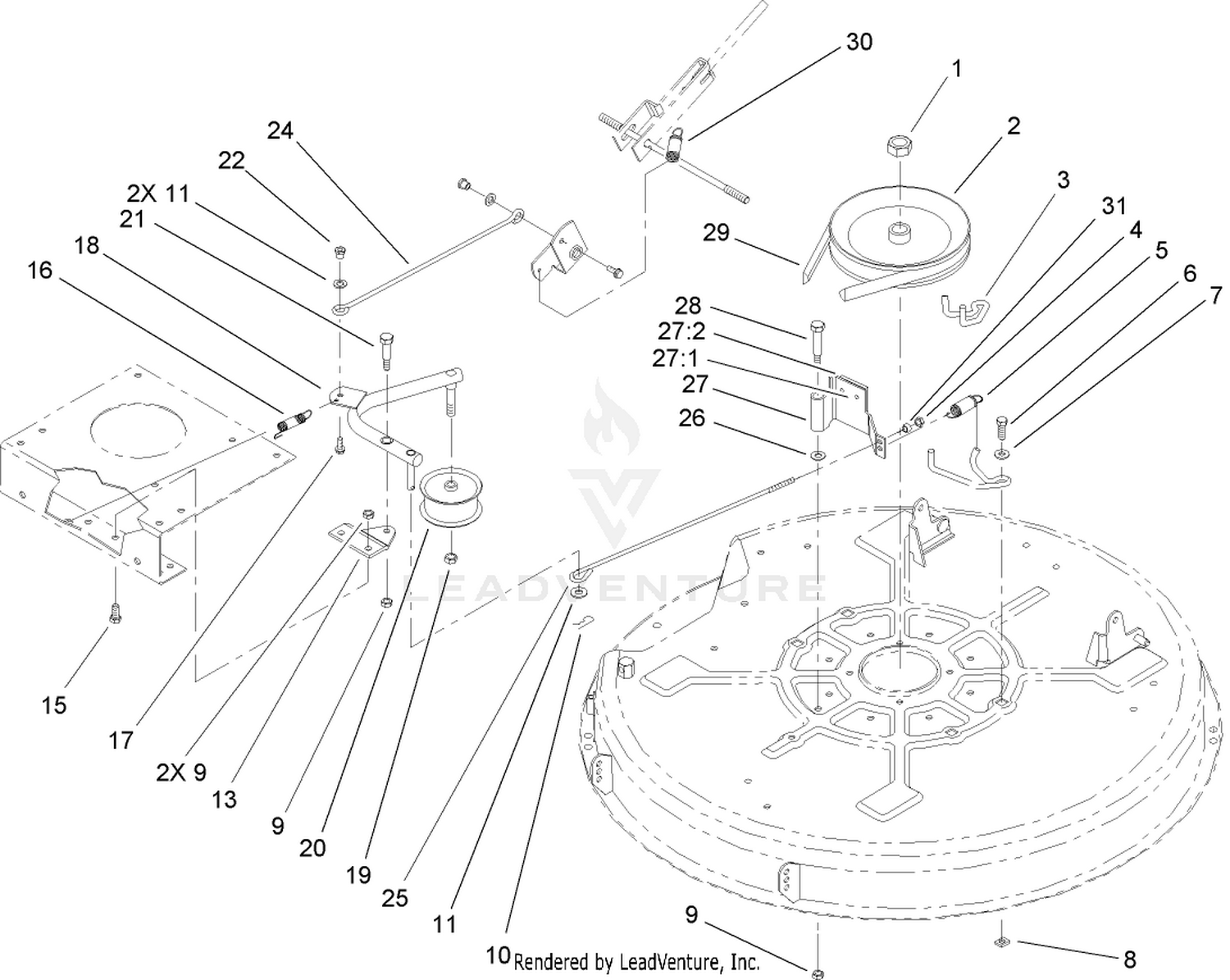

| Ref | Part Number | Description |
|---|
| 1 |
3219-7 |
NUT-HEX Price: $1.53 |
| 2 |
88-5060 |
PULLEY-DECK Price: $81.47 |
| 3 |
88-5760 |
GUIDE-BELT, DECK Price: $17.78 |
| 4 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 5 |
88-6330 |
SPRING-EXTENSION Price: $7.99 |
| 6 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 7 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 8 |
3290-496 |
NUT-RETAINER Price: $5.99 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
88-5370-03 |
PLATE-MOUNTING, IDLER Price: $8.17 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
26-6700 |
SPRING-RETURN, BRAKE Price: $13.72 |
| 17 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 18 |
88-5850-03 |
ARM-IDLER WA (BLACK) Price: $89.43 |
| 19 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 20 |
56-9870 |
PULLEY-IDLER Price: $30.44 |
| 21 |
7-0030 |
SCREW-SHOULDER, HH Price: $7.99 |
| 22 |
47-4990 |
POST-MOUNTING, LINKAGE Price: $15.58 |
| 24 |
88-5980 |
ROD-ENGAGE, DECK Price: $12.06 |
| 25 |
88-5690 |
ROD-BRAKE, DECK Price: $19.75 |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 27 |
88-6110 |
BRAKE ARM ASM Price: $47.50 |
| 28 |
88-4590 |
BOLT-SHOULDER Price: $10.99 |
| 29 |
88-6260 |
V-BELT Price: $39.39 |
| 30 |
88-6420 |
CABLE SPRING ASM Price: $28.65 |
