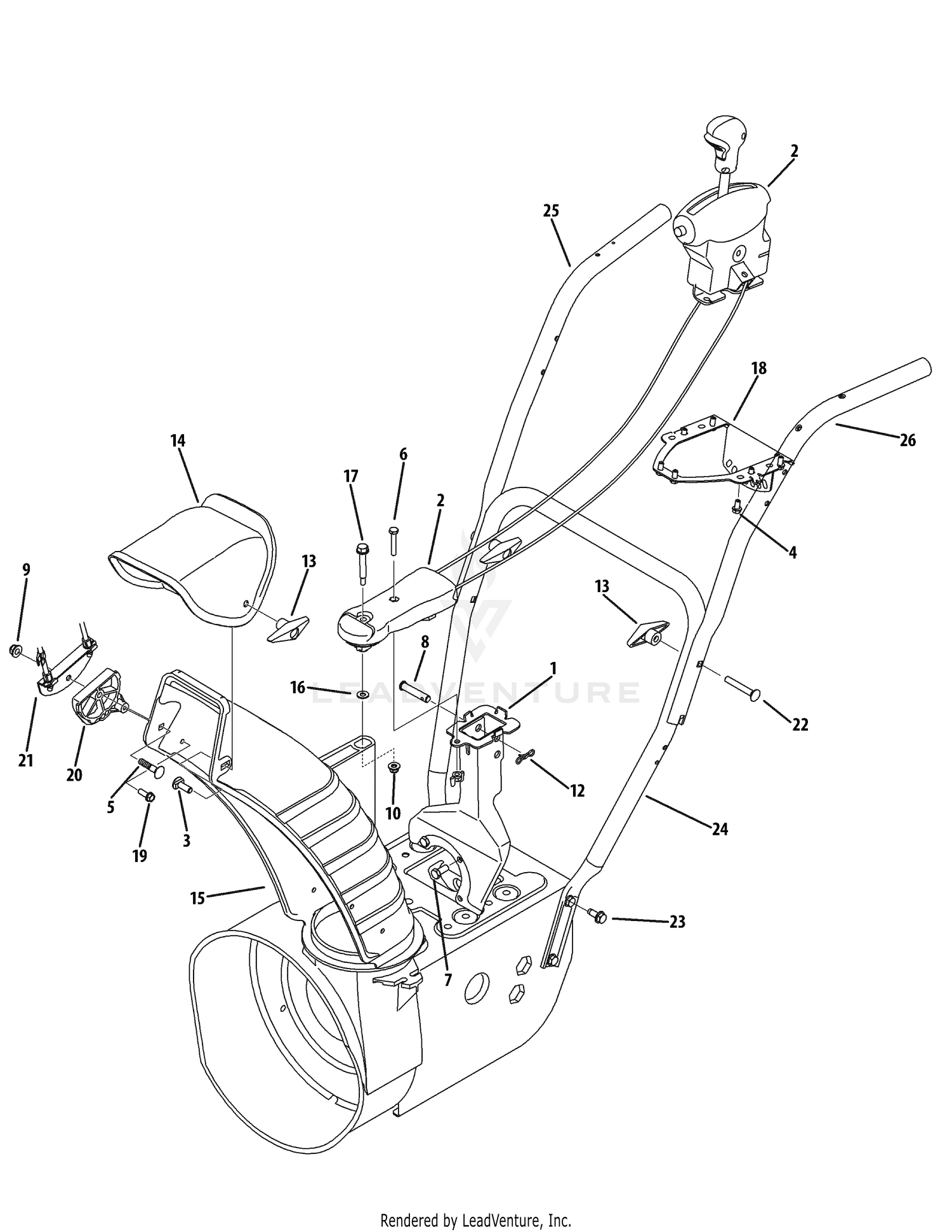

| Ref | Part Number | Description |
|---|
| 1 |
684-04311A-0637 |
CHUTE SUPPORT BRACKET ASSEMBLY This part replaces 684-04311. Price: $37.04 |
| 2 |
753-08391 |
KIT:SERVICE 4-WAY CHUTE CONT ASSEMBLY This part replaces 684-04331. Price: $250.82 |
| 2 |
984-04334 |
CHUTE CONTROL ASSEMBLY 2-WAY Not Available This part replaces 684-04334. Price: |
| 3 |
710-04071 |
Carriage Bolt, 5/16-18 x 1.00 Price: $3.94 |
| 4 |
710-04187A |
HEX SCREW 1/4-15 x .50 This part replaces 710-04187. Price: $5.99 |
| 6 |
710-0606 |
Hex Screw, 1/4-20 x 1.50 Price: $4.67 |
| 7 |
710-0627 |
Hex Screw, 5/16-24 x .750 Price: $3.68 |
| 8 |
711-04469A |
Clevis Pin, 3/8 -1.87 Price: $5.15 |
| 9 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 10 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 12 |
714-04040 |
Bow-tie Cotter Pin Price: $1.28 |
| 13 |
720-0284 |
Wing Knob, 5/16-18 Price: $4.08 |
| 14 |
731-04426C |
UPPER CHUTE (W/LBL MANUAL TILT) This part replaces 731-04426A. Price: $17.04 |
| 14 |
731-04427B |
UPPER REMOTE CHUTE WITH LABEL This part replaces 731-04427A. Price: $14.55 |
| 15 |
731-06440A |
LOWER CHUTE 5" DIA This part replaces 731-06440. Price: $45.59 |
| 16 |
736-0463 |
Flat Washer, .25 x .630 x .0515 Price: $3.91 |
| 17 |
738-04194 |
Shoulder Screw, .312 x 1.70 x 1/4-20 Price: $5.48 |
| 18 |
790-00131A-0637 |
LOCK CONTROL BRACKET Not Available This part replaces 790-00131A. Price: |
| 22 |
710-0572 |
Carriage Bolt 5/16-18 x 2.5" This part replaces 710-0449. Price: $3.75 |
| 23 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 24 |
749-04138A |
Lower Handle Price: $77.98 |
| 25 |
749-04190A |
Upper Handle, RH Price: $34.62 |
