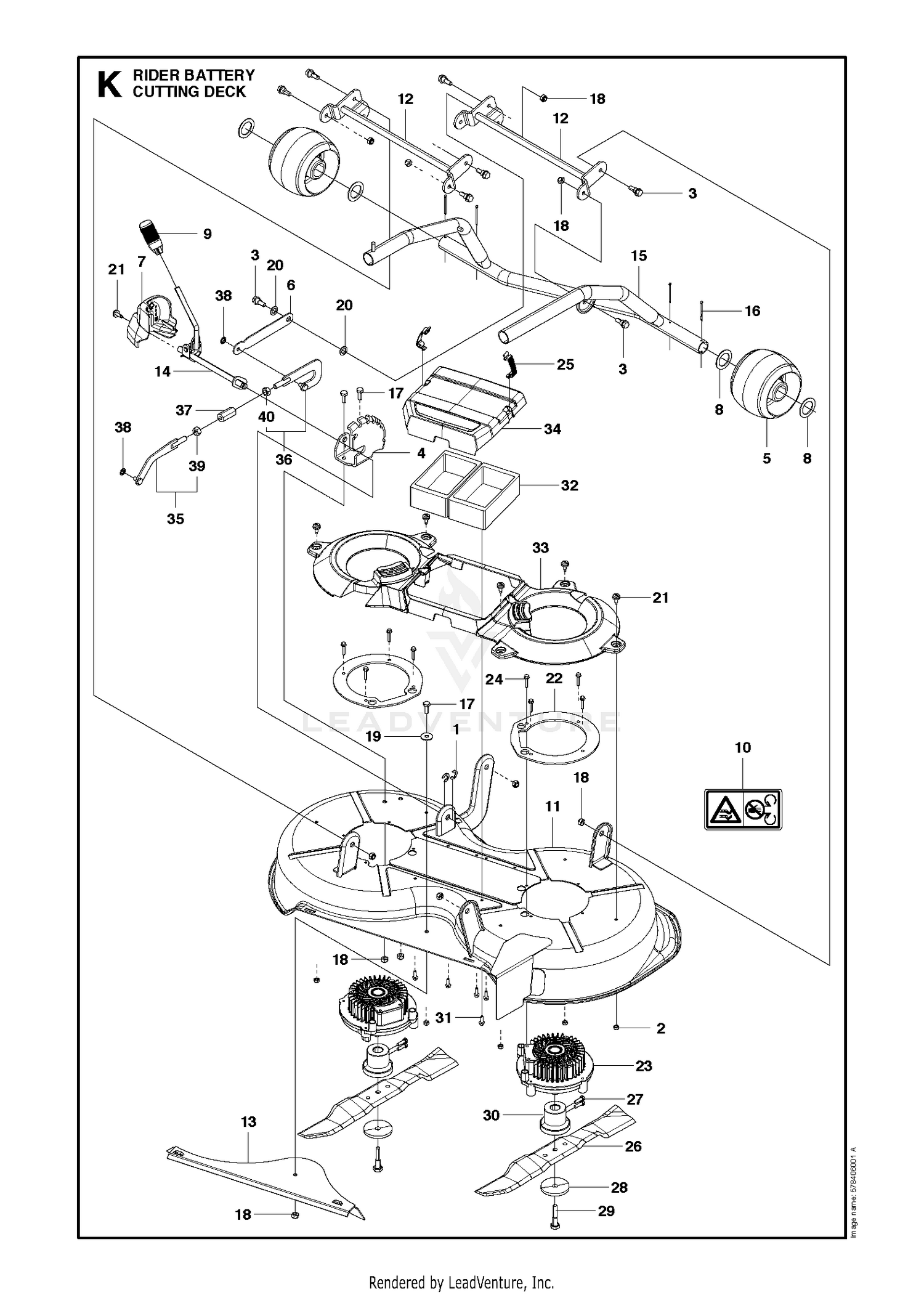

MOWER DECK / CUTTING DECK
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 735311520 | RETAINING RING Price: $2.99 |
| 2 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 3 | 506597401 | BOLT Price: $5.99 |
| 4 | 522523201 | BRACKET Price: $22.99 |
| 5 | 522735901 | WHEEL Price: $27.99 |
| 6 | 525855701 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 573971801 | COVER Price: $9.99 |
| 8 | 574264501 | WASHER Price: $4.99 |
| 9 | 574328801 | HANDLE Price: $7.99 |
| 10 | 115-3443 | CRANKCASE ASM Price: $1,731.92 |
| 10 | 574510001 | DECAL Price: $2.99 |
| 11 | 578135301 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 522450901 | CROSS BAR Price: $24.99 |
| 13 | 574041701 | NEEDS DESCRIPTION Price: Call Us |
| 14 | 575802101 | NEEDS DESCRIPTION Price: Call Us |
| 15 | 578135701 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 721618701 | COTTER PIN Price: $3.99 |
| 17 | 725245171 | SCREW Price: $2.08 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 734116441 | SPACER Price: $3.99 |
| 20 | 98-9398 | CAP-SEALING Price: $6.08 |
| 21 | 544400501 | SCREW Price: $3.99 |
| 22 | 578155301 | NEEDS DESCRIPTION Price: Call Us |
| 23 | 529306501 | NEEDS DESCRIPTION Price: Call Us |
| 24 | 725233961 | SCREW Price: $3.99 |
| 25 | 503894701 | BUCKLE ORANGE Price: $11.99 |
| 26 | 522449503 | NEEDS DESCRIPTION Price: Call Us |
| 27 | 725237071 | SCREW Price: $3.99 |
| 28 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 29 | 579182701 | NEEDS DESCRIPTION Price: Call Us |
| 30 | 578394701 | NEEDS DESCRIPTION Price: Call Us |
| 30 | 98-7539 | CAP-SEALING Price: $6.44 |
| 31 | 725232961 | SCREW Price: $2.99 |
| 32 | 578326501 | NEEDS DESCRIPTION Price: Call Us |
| 33 | 578994201 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 578994301 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 579202101 | NEEDS DESCRIPTION Price: Call Us |
| 36 | 578142101 | NEEDS DESCRIPTION Price: Call Us |
| 37 | 579237801 | NEEDS DESCRIPTION Price: Call Us |
| 38 | 735585200 | C-CLIP Price: $4.99 |
| 39 | 506897601 | NUT Price: $3.99 |
| 40 | 731232001 | Nut Price: $3.99 |
| 40 | 98-9687 | PLUG Price: $2.86 |
| 50 | 105-3779 | PLUG Price: $8.05 |
| 60 | 98-9597 | PLUG Price: $17.66 |
| 70 | 98-7487 | PLUG Price: $3.18 |
| 80 | 98-9379 | PLUG-EXPANSION Price: $0.76 |
| 90 | 98-9668 | PLUG-EXPANSION Price: $2.17 |
| 100 | 98-9375 | PIN-STRAIGHT Price: $0.41 |
| 110 | 98-9377 | PIN-STRAIGHT Price: $1.00 |
| 120 | 98-9376 | PIN-STRAIGHT Price: $0.41 |
| 130 | 98-9387 | PIN-PIPE Price: $2.92 |
| 140 | 98-9539 | PIN-PIPE Price: $1.15 |
| 150 | 98-9599 | PLUG Price: $6.08 |
| 160 | 98-9630 | PIN-SPRING, START Price: $1.47 |
| 170 | 98-9675 | PLUG Price: $8.54 |
| 180 | 98-9656 | BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 | 120-2559 | PLUG Price: $1.19 |
| 200 | 98-7428 | GASKET Price: $0.68 |
| 210 | 99-3447 | PLUG Price: $3.11 |
| 220 | 106-7056 | GASKET Price: $1.48 |
