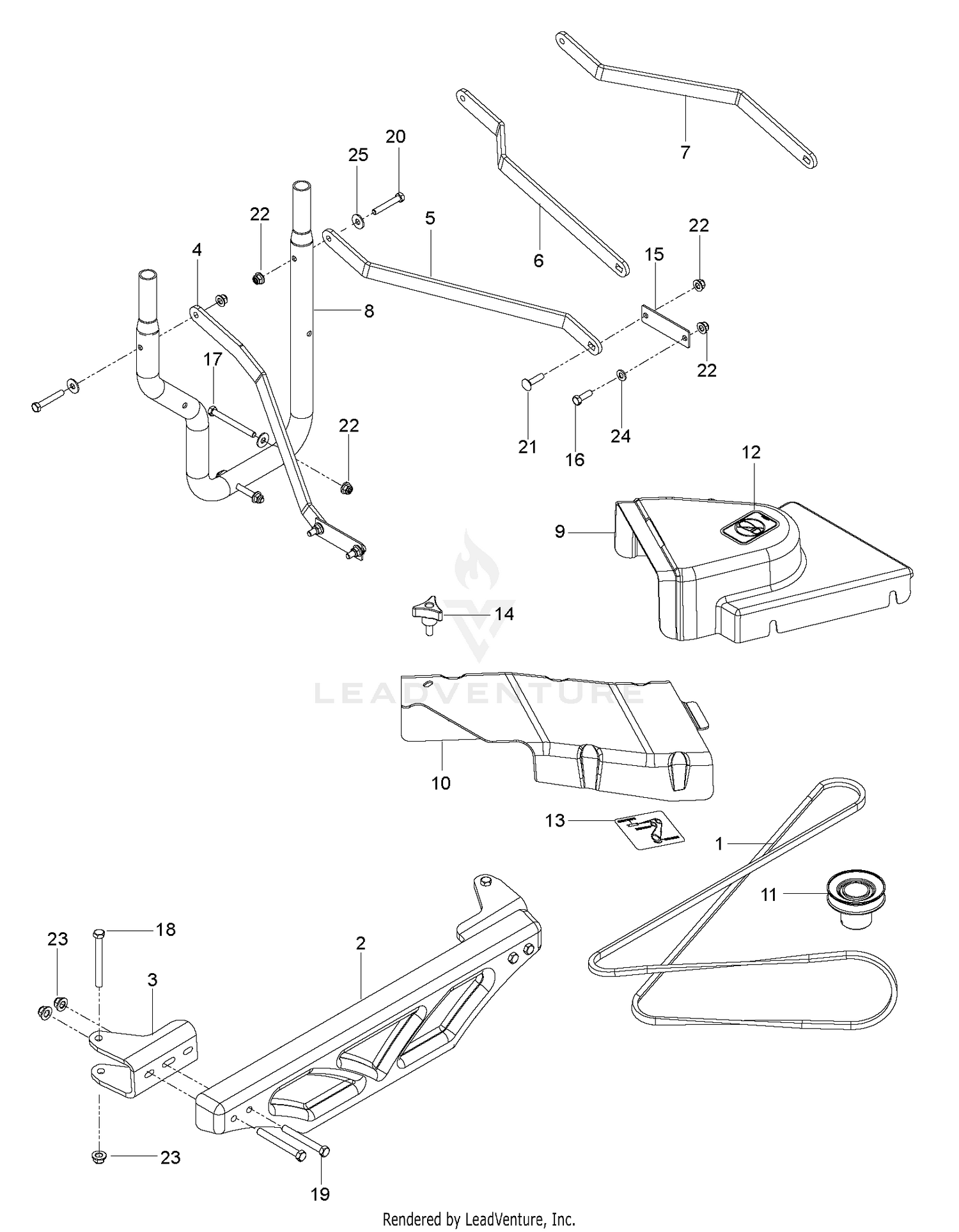

GUARDS

GUARDS

Parts (21)

RefPart NumberDescription
1 539130347 BELT, 48/52" Price: $79.99
2 539111587 CAST WEIGHT Price: $499.99
3 522923202 BRACKET WEIGHT BLK Price: $49.99
8 539131091 MOUNT.TUBE.COLLECTIONS Price: $139.99
9 539130306 SHIELD, BELT, 48" Price: $17.99
10 539130309 COVER, BELT Price: $27.99
11 539130319 PULLEY, 42/48" Price: $69.99
12 581724301 DECAL.DECK.6MIL.EURO.NOSTEP This part replaces 539105743. Price: $3.99
13 539130349 DECAL, BELT ROUTING Price: $6.99
14 597783101 GSPW Knobs This part replaces 539104411. Price: $3.99
15 523112802 REINFORCEMENT PLATE BLK Price: $38.99
16 596580801 Bolts This part replaces 539990209. Price: $2.99
17 539101520 HCS 5/16-18 X 3 1/4 Price: $2.99
18 539108271 HCS 3/8-16 X 3-1/2 GR5 ZD Price: $4.99
19 539101341 HCS 3/8C X 3 Price: $4.99
20 539976937 HCS 5/16-18X2 Price: $2.99
21 596671401 Bolts This part replaces 539100472. Price: $3.99
22 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
23 521996502 GSPW Nuts This part replaces 521996501. Price: $2.99
24 596204101 WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99
25 596134901 GSPH This part replaces 539990692. Price: $2.99
