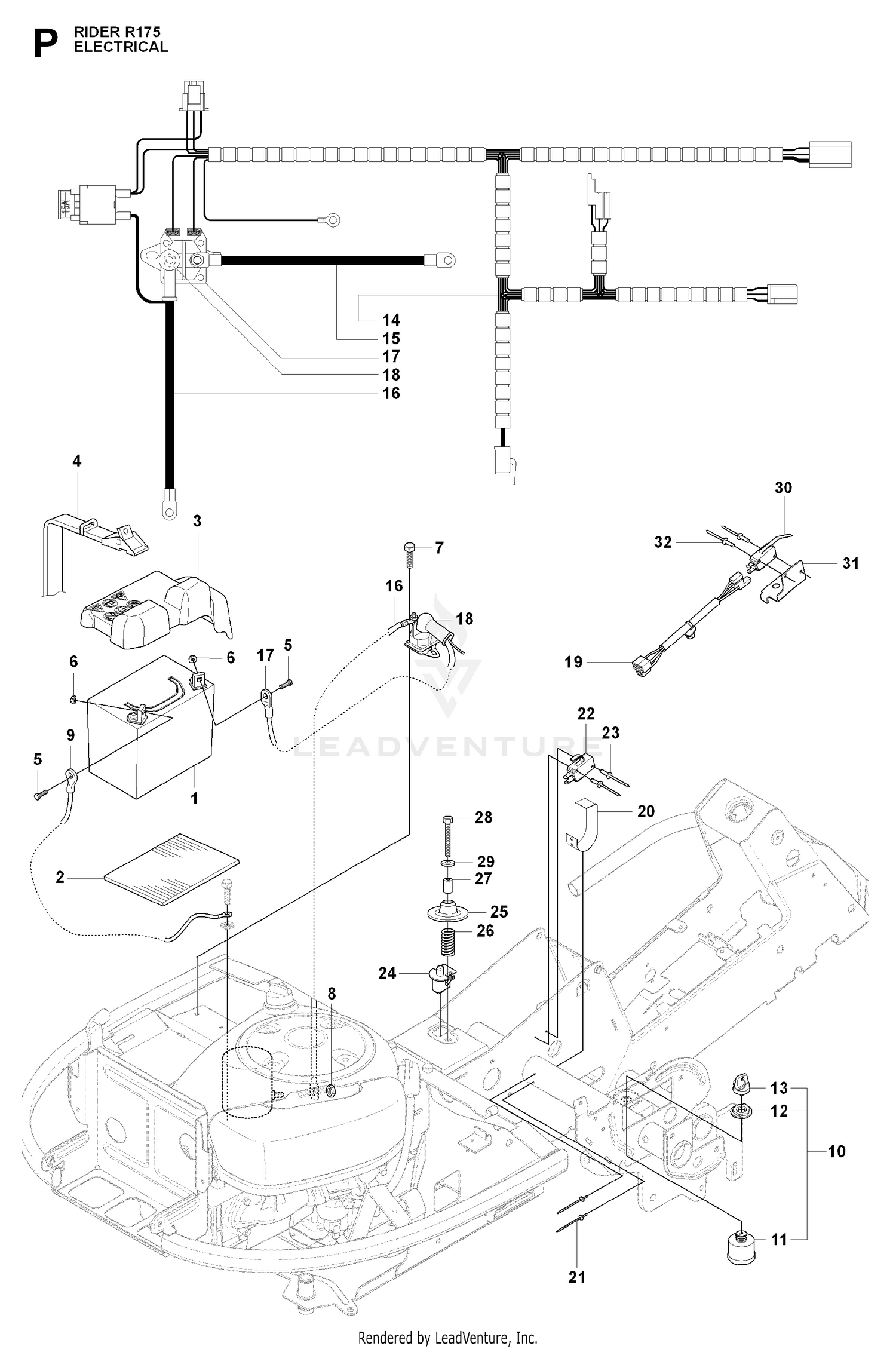

ELECTRICAL
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-3071 | WATER PUMP ASM Price: $827.54 |
| 1 | 510138501 | Price: Call Us |
| 2 | 535441101 | MAT Price: $8.55 |
| 3 | 125-6998 | GASKET Price: $12.33 |
| 3 | 510026901 | Price: Call Us |
| 4 | 125-6999 | PLATE Price: $58.91 |
| 4 | 506836802 | BELT Price: $9.99 |
| 5 | 522622101 | SCREW EHHM Price: $2.99 |
| 6 | 522624301 | NUT Price: $2.99 |
| 7 | 725236461 | SCREW Price: $2.99 |
| 8 | 506899801 | NUT Price: $2.99 |
| 9 | 127-3017 | JOINT Price: $71.31 |
| 9 | 544967603 | Price: Call Us |
| 10 | 125-7123 | PLUG Price: $9.86 |
| 10 | 544442101 | IGNITION SWITCH Price: $24.99 |
| 11 | 127-3175 | PLUG Price: $2.87 |
| 11 | 544442201 | IGNITION SWITCH Price: $17.99 |
| 12 | 125-7195 | PLUG Price: $2.71 |
| 12 | 544442301 | NUT Price: $2.99 |
| 13 | 125-7234 | SCREW Price: $2.32 |
| 13 | 544442401 | IGNITION KEY Price: $6.99 |
| 14 | 125-7047 | GASKET Price: $5.13 |
| 14 | 544926301 | WIRING Price: $49.99 |
| 15 | 125-6986 | JOINT Price: $24.66 |
| 15 | 544928601 | CABLE Price: $9.99 |
| 16 | 125-7048 | O-RING Price: $2.87 |
| 16 | 544926104 | Price: Call Us |
| 17 | 125-6978 | GASKET Price: $2.00 |
| 17 | 544439801 | RELAY Price: $17.99 |
| 18 | 125-7192 | GASKET Price: $1.14 |
| 18 | 506899801 | NUT Price: $2.99 |
| 19 | 544892201 | WIRING Price: $22.99 |
| 19 | 93-0362 | BOLT Price: $3.89 |
| 20 | 125-7214 | BOLT Price: $3.77 |
| 20 | 506909301 | SPRING Price: $6.99 |
| 21 | 125-7219 | BOLT Price: $4.58 |
| 22 | 125-7222 | BOLT Price: $4.99 |
| 22 | 574316001 | SWITCH This part replaces 535469101. Price: $11.99 |
| 23 | 125-7039 | V-PULLEY Price: $23.56 |
| 23 | 544440701 | RIVET Price: $2.99 |
| 24 | 127-2998 | V-BELT Price: $20.88 |
| 24 | 506909601 | SWITCH Price: $14.99 |
| 25 | 125-7206 | BOLT Price: $1.97 |
| 25 | 506909701 | WASHER Price: $12.99 |
| 26 | 125-7029 | THERMOSTAT Price: $56.77 |
| 26 | 544441201 | SPRING Price: $4.99 |
| 27 | 125-7026 | GASKET Price: $2.90 |
| 27 | 506909902 | SPACER TUBE Price: $3.99 |
| 28 | 125-7034 | COVER Price: $78.09 |
| 28 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 29 | 125-7110 | GASKET Price: $3.76 |
| 29 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 30 | 125-7594 | BOLT Price: $3.00 |
| 30 | 574316101 | MICRO SWITCH This part replaces 544415501. Price: $11.99 |
| 31 | 125-6953 | PLUG Price: $7.59 |
| 31 | 544415701 | BRACKET Price: $4.99 |
| 32 | 125-7124 | SENSOR-THERMOSTAT, CW Price: $96.15 |
| 32 | 544440701 | RIVET Price: $2.99 |
| 33 | 125-6979 | GASKET Price: $2.55 |
| 34 | 125-7176 | WASHER-SEAL Price: $7.31 |
| 35 | 127-3017 | JOINT Price: $71.31 |
| 36 | 127-3072 | WATER IN PIPE ASM Price: $51.67 |
| 38 | 127-3020 | CLIP-HOSE Price: $2.92 |
| 40 | 127-3115 | WATER OUT PIPE ASM Price: $21.26 |
| 41 | 127-3020 | CLIP-HOSE Price: $2.92 |
| 43 | 127-3116 | WATER OUT PIPE ASM Price: $47.67 |
| 44 | 127-3020 | CLIP-HOSE Price: $2.92 |
| 47 | 127-3117 | PIPE-OUT, CW Price: Call Us |
