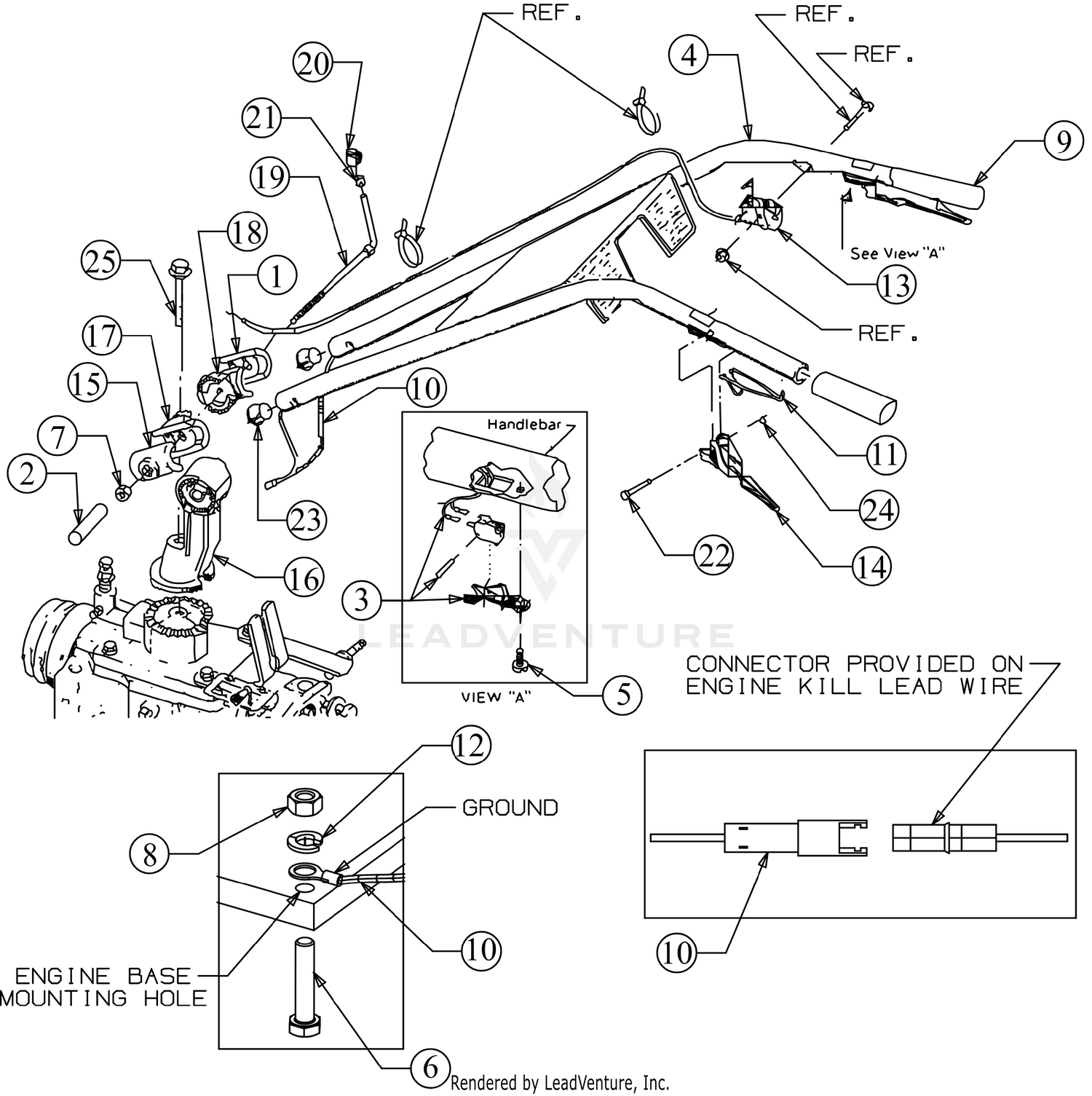

| Ref | Part Number | Description |
|---|
| 1 |
1900855010 |
CLAMP (RH) HORSE Price: $33.74 |
| 2 |
1901835 |
CAP:PLUG HI TEMP Price: $3.42 |
| 3 |
625-04097 |
MICRO SWITCH ASSEMBLY Price: $63.95 |
| 3 |
725-05005 |
MICRO SWITCH Price: $26.56 |
| 4 |
649-04020-0638 |
HANDLE ASSEMBLY Price: $224.49 |
| 5 |
710-0779A |
SCREW #10-16 X .500 Price: $3.85 |
| 6 |
710-0805A |
SCREW 5/16-18 X 1.5 LG Price: $3.75 |
| 7 |
712-0206 |
HEX NUT This part replaces 912-0206. Price: $3.90 |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 9 |
720-04083 |
GRIP 1.188 X 4.562 Price: $12.95 |
| 10 |
725-04367 |
ENGINE HARNESS Price: $53.03 |
| 11 |
732-04864A |
SPRING Price: $6.03 |
| 12 |
936-0119 |
LOCK WASHER 5/16 Price: $4.29 |
| 13 |
946-05084 |
THROTTLE CABLE ASSEMBLY Price: $50.29 |
| 14 |
786-04003-0638 |
OPC LEVER Price: $26.69 |
| 15 |
1900854010 |
CLAMP (LH) HORSE Price: $32.05 |
| 16 |
1900858010 |
HANDLE BAR BAS Price: $110.25 |
| 17 |
1900856010 |
RATCHET (LH) RED Price: $37.73 |
| 18 |
1900857010 |
RATCHET (RH) RED Price: $43.05 |
| 19 |
GW-1881 |
STUD-H/BAR W/NUT Price: $54.59 |
| 20 |
GW-9119 |
CONTROL KNOB Price: $10.22 |
| 21 |
GW-9120 |
RING-TOLERANCE Price: $5.94 |
| 22 |
GW-9199 |
PIN-PIVOT Price: $5.59 |
| 23 |
GW-9219 |
RETAINER-HARNESS Price: $9.09 |
| 24 |
GW-9514 |
RING-KLIP Price: $6.03 |
