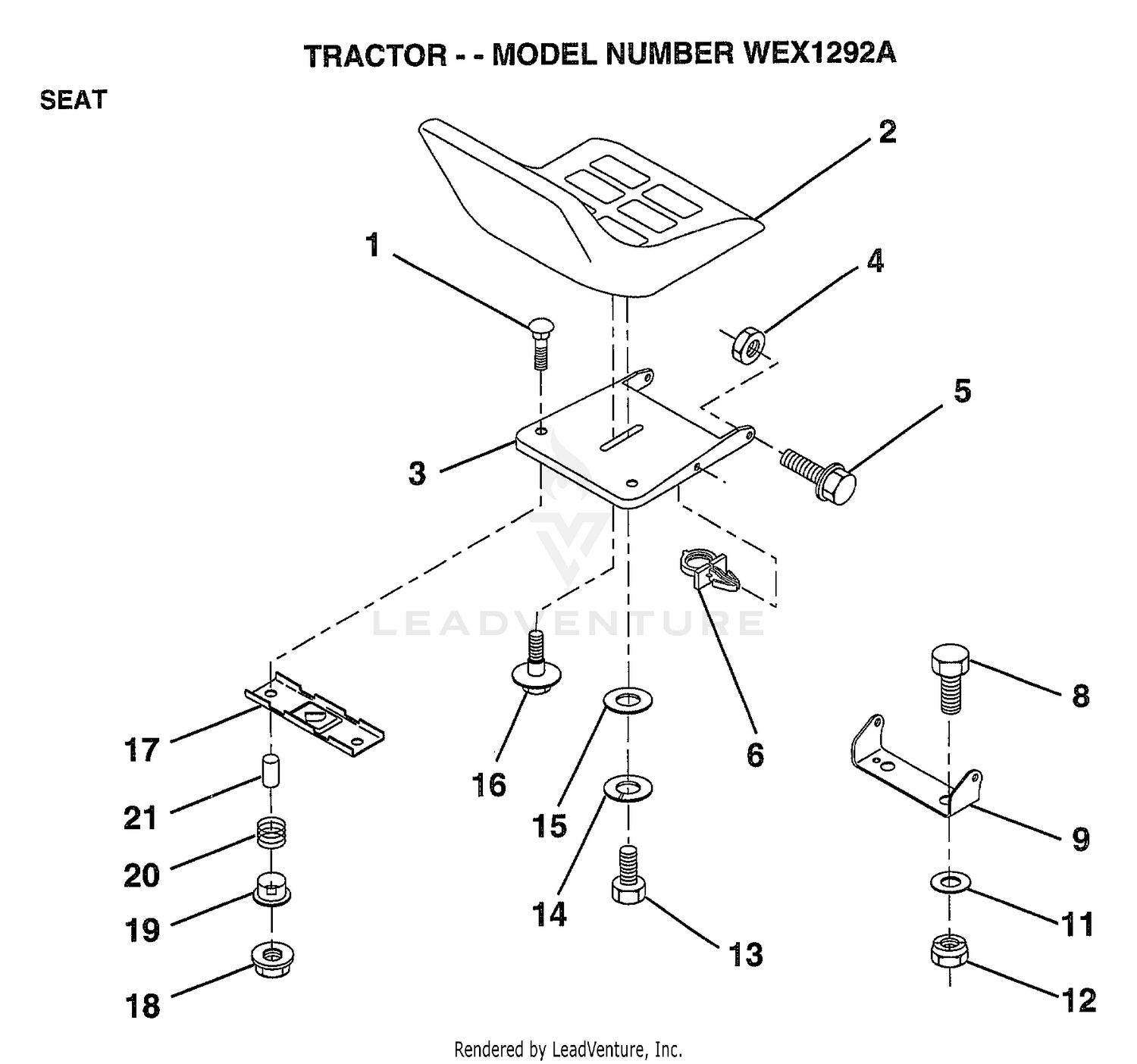

| Ref | Part Number | Description |
|---|
| 1 |
72050412 |
BOLT-RD HD SQ NK Price: Call Us |
| 1 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 2 |
127426X |
SUB= 140119 Price: Call Us |
| 2 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 3 |
155925 |
PAN-SEAT Price: Call Us |
| 3 |
82-6840 |
SPACER Price: $3.31 |
| 4 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 4 |
73800500 |
NUT Price: Call Us |
| 5 |
322-7 |
SCREW-HH Price: $0.89 |
| 6 |
145006 |
CLIP.PUSH-IN.HING Price: Call Us |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 8 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 8 |
74760616 |
BOLT Price: Call Us |
| 9 |
140551 |
BRACKET PVT SEAT Price: Call Us |
| 9 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
19133210 |
WASHER Price: Call Us |
| 11 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 12 |
73800600 |
NUT Price: Call Us |
| 13 |
74780814 |
BOLT Price: Call Us |
| 13 |
99-5610 |
PIN Price: $40.16 |
| 14 |
10040800 |
LOCKWASHER Price: Call Us |
| 14 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 15 |
19171912 |
WASHER Price: Call Us |
| 15 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 16 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 17 |
121246X |
BRKT SWITCH Price: Call Us |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
123976X |
SUB= 73900400 Price: Call Us |
| 18 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 19 |
121248X |
BUSHING Price: Call Us |
| 19 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 20 |
121250X |
SPRING Price: Call Us |
| 21 |
106-9004 |
BUMPER This part replaces 99-5605. Price: $6.35 |
| 22 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 23 |
99-6903-03 |
NO. 3 LIFT ARM ASM Price: $966.43 |
| 24 |
99-6902-03 |
NO. 2 LIFT ARM ASM Price: $867.02 |
