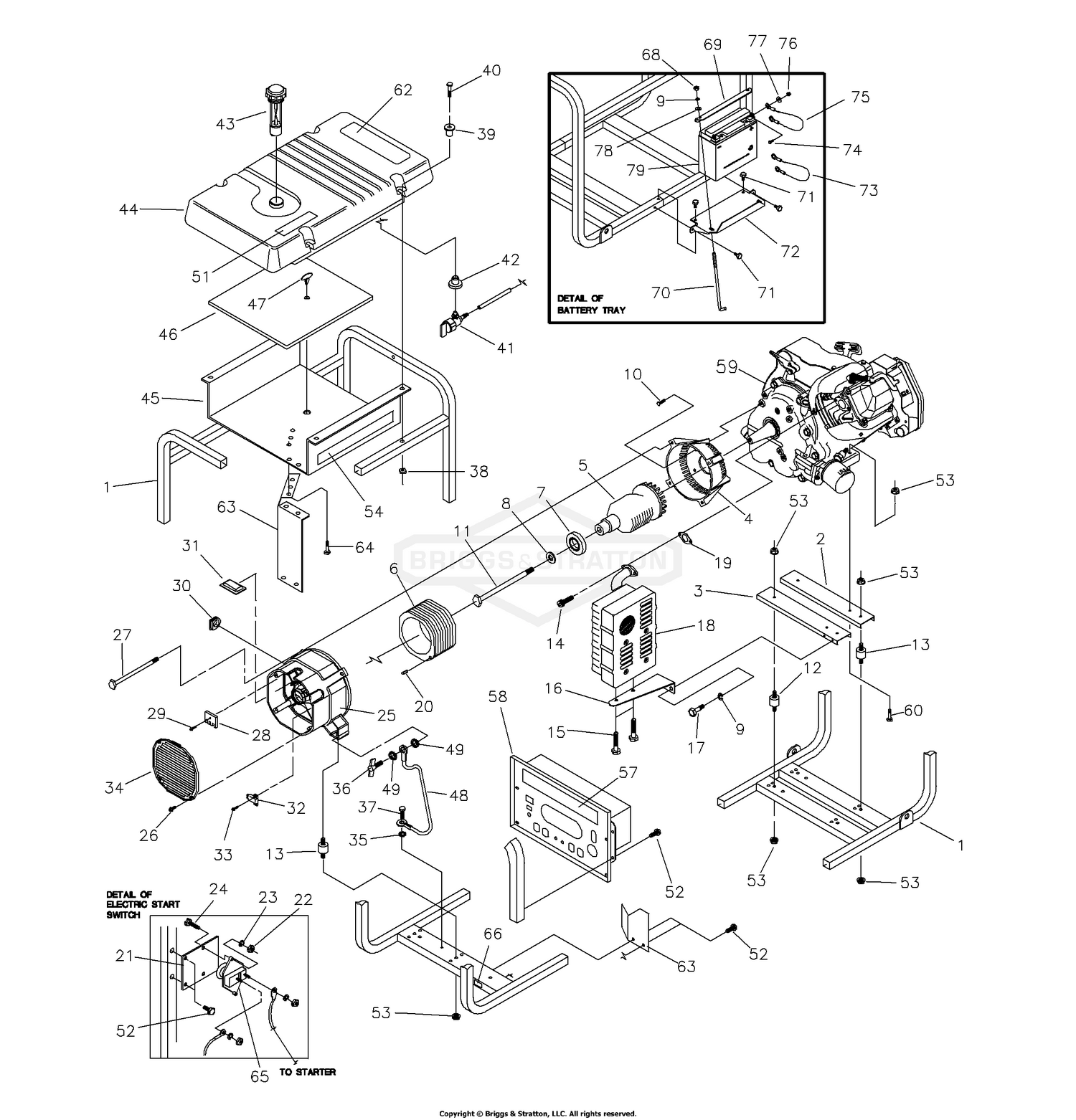

| Ref | Part Number | Description |
|---|
| 1 |
HB4545GS |
CRDL, 7200W BPS This part replaces HB4545. Price: $84.40 |
| 2 |
H92531GS |
SUPPORT, Engine This part replaces H92531. Price: $13.80 |
| 3 |
H92731GS |
BRCKT, SPPRT, ENG/MFFLR, TAN This part replaces H92731. Price: $23.25 |
| 4 |
92247GS |
HOUSING, ENGINE ADAPTER This part replaces 92247. Price: $86.95 |
| 6 |
B1897AGS |
ASSY, Stator This part replaces B1897G. Price: $827.96 |
| 7 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 8 |
96796GS |
WASHER, M8 Flat This part replaces 96796. Price: $2.79 |
| 9 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 10 |
86307GS |
HHMS, 5/16-24 x 3/4 LG. SEMS This part replaces 86307. Price: $2.19 |
| 11 |
47481GS |
HHCS, 5/16-24 x 10.625 LG. This part replaces 47481. Price: $9.60 |
| 12 |
92609GS |
MOUNTS,Vibration This part replaces 92609. Price: $24.49 |
| 13 |
82857GS |
MOUNT, VIBRATION This part replaces 82857. Price: $10.31 |
| 14 |
40976 |
SCREW, M8 - 1.25 x 20 Price: Call Us |
| 15 |
66476GS |
SCREW, M6-1 x 12 w/Lock Washer This part replaces 66476. Price: $2.94 |
| 16 |
92532GS |
BRACKET, Muffler This part replaces 92532. Price: $18.18 |
| 17 |
84009650 |
MODULE This part replaces 22142. Price: $40.03 |
| 18 |
A7433GS |
MUFFLER This part replaces 91153. Price: $94.60 |
| 19 |
90239GS |
GASKET, Exhaust This part replaces 90239. Price: $3.73 |
| 20 |
81917GS |
PIN, ROLL 4MM x 10 This part replaces 81917. Price: $2.79 |
| 21 |
78289GS |
BRACKET, STARTER SWITCH This part replaces 78289. Price: Call Us |
| 22 |
22127 |
NUT, 1/4 - 20 Hex Price: Call Us |
| 23 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 24 |
5025010X6SM |
BOLT, 1/4-20 X 3/4" G This part replaces 22287. Price: $3.29 |
| 25 |
SRV66825DGS |
CARRIER, Rear Bearing This part replaces 66825C. Price: $120.36 |
| 26 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 27 |
66449LGS |
BOLT This part replaces 66449L. Price: $28.08 |
| 28 |
65795GS |
RECTIFIER, BATTERY CHARGE This part replaces 65795. Price: $10.80 |
| 29 |
66849AGS |
SCREW This part replaces 66849A. Price: $4.02 |
| 30 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 31 |
84132GS |
ASSEMBLY, POWER REGULATOR This part replaces 84132. Price: $31.80 |
| 32 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 33 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 34 |
B4871GS |
COVER, Bearing Carrier This part replaces B4871. Price: $4.15 |
| 35 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 36 |
86494GS |
SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51 |
| 37 |
313085GS |
SCREW This part replaces 86292. Price: $3.35 |
| 38 |
77395GS |
NUT, FLANGE LOCK - M6 This part replaces 77395. Price: $3.09 |
| 39 |
83465GS |
GROMMET, TANK This part replaces 83465. Price: $3.39 |
| 40 |
78831BGS |
HHMS, M6-1.0 x 60 (BLACK) This part replaces 78831B. Price: $1.60 |
| 41 |
192980GS |
Kit, Valve This part replaces 80270. Price: $16.43 |
| 42 |
192980GS |
Kit, Valve This part replaces 78299. Price: $16.43 |
| 43 |
B4363GS |
CAP, Fuel Gauge This part replaces B4363. Price: $38.55 |
| 45 |
BB4675GS |
HTSHLD, 01277 This part replaces BB4675. Price: $40.25 |
| 46 |
92665GS |
INSULATION, # 2-1/4" THICK This part replaces 92665. Price: $10.30 |
| 47 |
85000GS |
CLIP, INSULATION This part replaces 85000. Price: $2.59 |
| 48 |
195373GS |
WIRE, Ground This part replaces 143-53621. Price: $1.85 |
| 51 |
194799GS |
DECAL, Danger This part replaces 92982. Price: $10.48 |
| 52 |
B2153GS |
SCREW, 12-14 x 7/8 Self Drilling This part replaces B2153. Price: $3.95 |
| 53 |
189160GS |
NUT, 5/16-18, Flanged Serrated This part replaces 189160. Price: $2.40 |
| 54 |
B5051 |
DECAL, Heat Shield Price: Call Us |
| 57 |
B4553 |
DECAL, Control Panel Price: Call Us |
| 58 |
B4690GS |
ASSY, Control Panel This part replaces B4690. Price: $429.99 |
| 59 |
~NSP |
ENGINE Price: Call Us |
| 60 |
5025011X14SM |
BOLT, 5/16-18 X 1-3/4 This part replaces 22531. Price: $3.40 |
| 62 |
93826GS |
DECAL, START INSTRUCTIONS This part replaces 93826. Price: $1.85 |
| 63 |
BB4674GS |
HTSHLD, 01277, BLK This part replaces BB4674. Price: $18.65 |
| 64 |
56893GS |
CRIMPTITE, 10-24 x 1/2 This part replaces 56893. Price: $1.95 |
| 65 |
77282 |
SWITCH, Starter Price: Call Us |
| 66 |
B4986GS |
DECAL, Ground This part replaces B4986. Price: $2.75 |
| 68 |
5045771B |
SKID PLATE This part replaces 45771. Price: $55.95 |
| 69 |
H96925GS |
BRCKT, BTTRY This part replaces H96925. Price: $5.50 |
| 70 |
96924GS |
J-BOLT This part replaces 96924. Price: $4.70 |
| 71 |
58443GS |
SCREW This part replaces 58443. Price: $2.79 |
| 72 |
HB4672GS |
TRAY, BTTRY, 01277 This part replaces HB4672. Price: $44.49 |
| 73 |
11353621GS |
WIRE-A, 8AWG, BLK, #0, 495MM This part replaces 11353621. Price: $16.29 |
| 74 |
52618GS |
SCREW, M5 x 0.8 x 12 This part replaces 52618. Price: $2.64 |
| 75 |
19953621GS |
WIRE-A, 6AWG, RED, #13, 864MM This part replaces 19953621. Price: $18.69 |
| 76 |
52856GS |
NUT, LOCKING-M5 This part replaces 52856. Price: $2.59 |
| 77 |
1910531SM |
WASHER, Rivet, 3/16 This part replaces 23897. Price: $3.47 |
| 79 |
193043GS |
BATTERY, 12V This part replaces B4489. Price: $127.58 |
