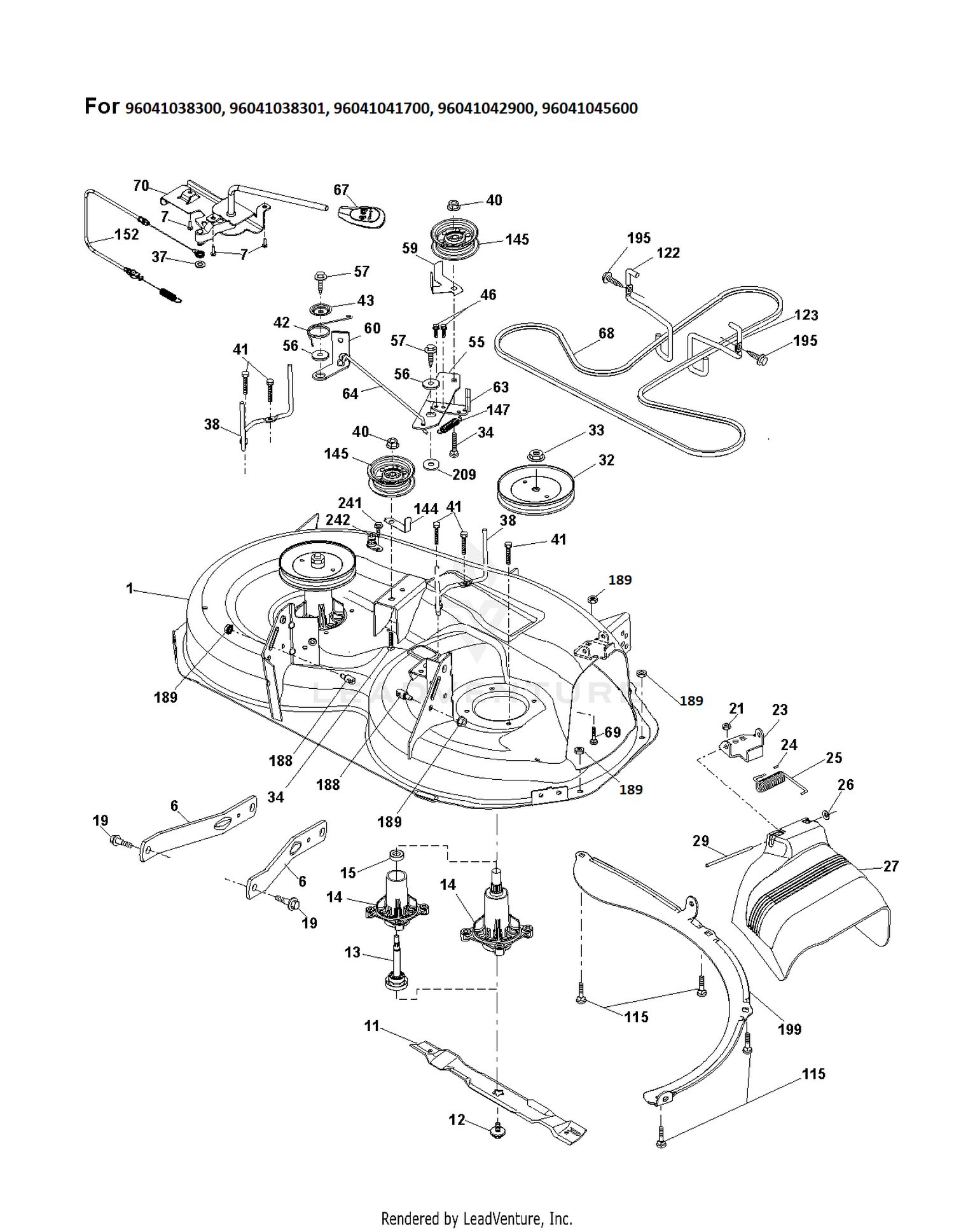

| Ref | Part Number | Description |
|---|
| 1 |
547565001 |
SERVICE KIT DECK 38" X428 This part replaces 532434463. Price: $379.99 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW Price: $14.99 |
| 7 |
596321701 |
Screws Price: $2.99 |
| 11 |
581116302 |
BLADE.2 IN 1.38"DECK.BLACK Price: $14.99 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL Price: $49.99 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL Price: $49.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 21 |
596040501 |
Hardware Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532192572 |
SHIELD.DEFLECTOR.MOWER.38" Price: $32.99 |
| 29 |
595297001 |
Rods Price: $4.99 |
| 32 |
531170001 |
SERVICE KIT PULLEY PULLEY.MAND Price: $17.99 |
| 34 |
596136101 |
GSPW Bolts Price: $2.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 38 |
532400140 |
BELT KEEPER.MANDREL.38"COATED Price: $39.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD Price: $4.99 |
| 60 |
532199471 |
ARM BRAKE MOWER RH 38" Price: $14.99 |
| 63 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED Price: $14.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC Price: $11.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
532408381 |
V-BELT Price: $37.99 |
| 69 |
596136401 |
Bolts Price: $2.99 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $32.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO Price: $2.99 |
| 122 |
531169501 |
SERVICE KIT BELT KEEPER Price: $4.99 |
| 123 |
531169701 |
SERVICE KIT KEEPER BELT KEEPER Price: $6.99 |
| 144 |
531148901 |
SERVICE.KIT KEEPER BELT KEEPER Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 147 |
532401872 |
SPRING RETURN Price: $4.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $29.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts Price: $2.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 199 |
531170401 |
SERVICE KIT BAFFLE BAFFLE.VORT Price: $14.99 |
| 209 |
596135501 |
Washers Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
