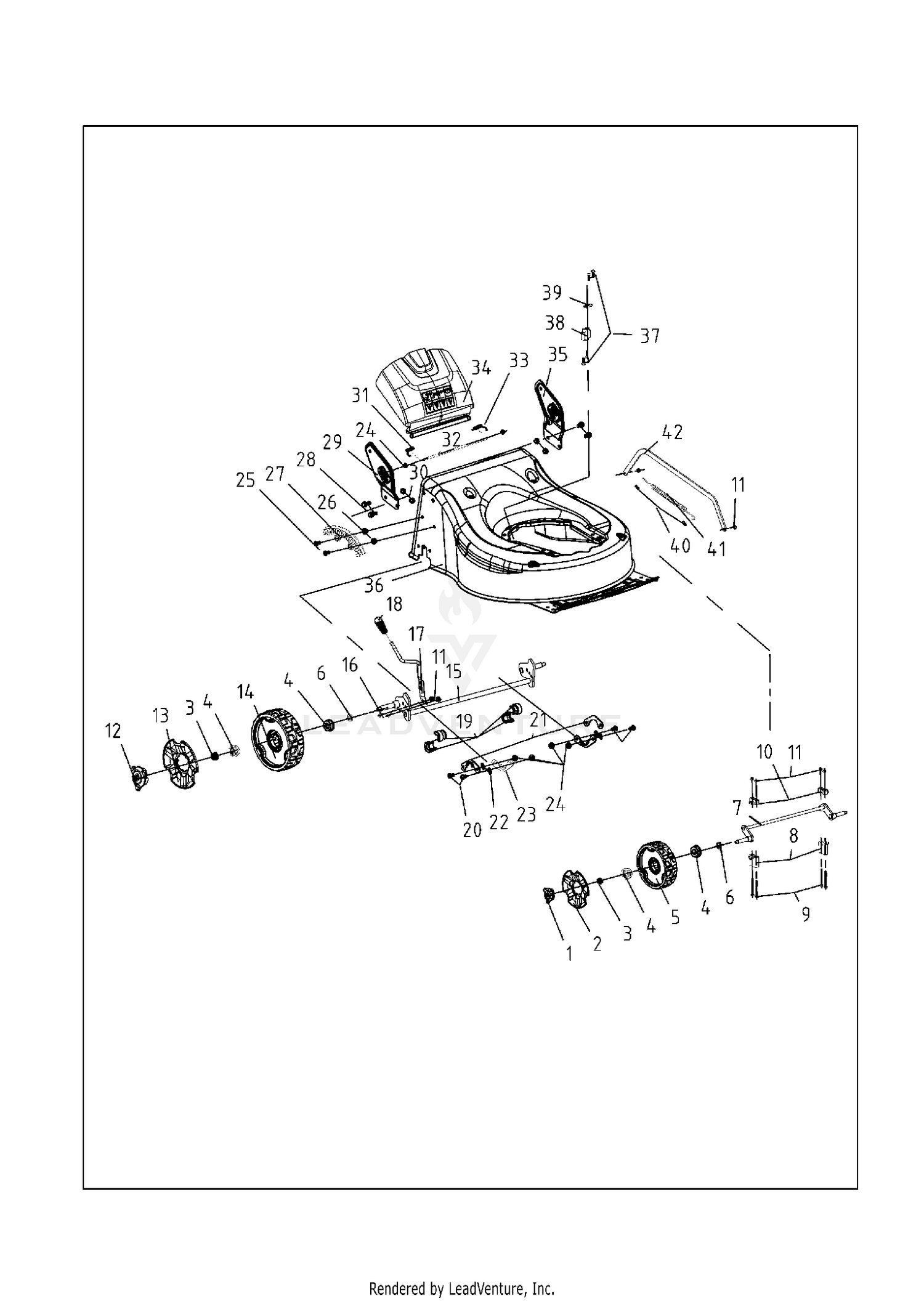

MOWER DECK / CUTTING DECK 2
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 587585001 | WHEEL COVER 6" #25340700101 Price: $3.99 |
| 2 | 501491501 | COVER 7 WHEEL COVER Price: $8.99 |
| 3 | 587913501 | LOCKING BOLT M8,GB6187.1 #2680 Price: $2.99 |
| 5 | 501491601 | WHEEL ASSY 7 WHEEL Price: $24.99 |
| 6 | 587914601 | WASHER φ12 #26800706202 Price: $2.99 |
| 7 | 579684801 | FRONT AXLE ASSY Price: $39.99 |
| 8 | 579684701 | SUPPORT Price: $3.99 |
| 9 | 579684601 | BOLT Price: $3.99 |
| 10 | 579684901 | SUPPORT Price: $4.99 |
| 11 | 587913101 | LOCKING BOLT M6,GB889.1 #26800 Price: $2.99 |
| 12 | 587585101 | WHEEL COVER 8" #25341000101 Price: $4.99 |
| 13 | 587585301 | WHEEL COVER 8" #25341100101 Price: $5.99 |
| 14 | 587918001 | WHEEL #25341300101 Price: $29.99 |
| 15 | 579685001 | REAR AXLE ASSY Price: $54.99 |
| 16 | 587912701 | WASHER M6*14 #26800203001 Price: $2.99 |
| 17 | 502502701 | HANDLE ASSY Price: $9.99 |
| 18 | 587585701 | KNOB HEIGHT ADJUSTMENT #25341 Price: $11.99 |
| 19 | 587917901 | COVER AXLE #25235300101 Price: $3.99 |
| 20 | 587912601 | SCREW M6*16 #26800204601 Price: $2.99 |
| 21 | 587992401 | FIXING PLATE #26300314601 Price: $4.99 |
| 22 | 587992501 | O-RING #25100175201 Price: $4.99 |
| 23 | 587910901 | FIXING PLATE #26300124401 Price: $4.99 |
| 24 | 587913401 | LOCK NUT M6,GB/T6187.1-2000 #2 Price: $2.99 |
| 25 | 579685101 | BOLT Price: $2.99 |
| 26 | 579685201 | NUT Price: $2.99 |
| 27 | 587909901 | SEGMENT #25214200102 Price: $5.99 |
| 28 | 587913901 | BOLT M8*16 #26800606401 Price: $2.99 |
| 29 | 501054401 | BRACKET RH Price: $19.99 |
| 30 | 579687901 | NUT Price: $3.99 |
| 31 | 587915101 | SPRING #26801125501 Price: $3.99 |
| 32 | 502231001 | ROD Price: $12.99 |
| 33 | 587915001 | BRACKET #26801125401 Price: $4.99 |
| 34 | 589794101 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 589779401 | NEEDS DESCRIPTION Price: Call Us |
| 36 | 579685401 | DECK Price: $159.99 |
| 37 | 579685501 | SCREW Price: $2.99 |
| 38 | 579685601 | BRACKET Price: $4.99 |
| 39 | 579685701 | PLATE Price: $3.99 |
| 40 | 587915801 | TUBING #29000300101 Price: $4.99 |
| 41 | 587914901 | SPRING #26801103903 Price: $4.99 |
| 42 | 579685301 | CONNECTING ROD Price: $17.99 |
