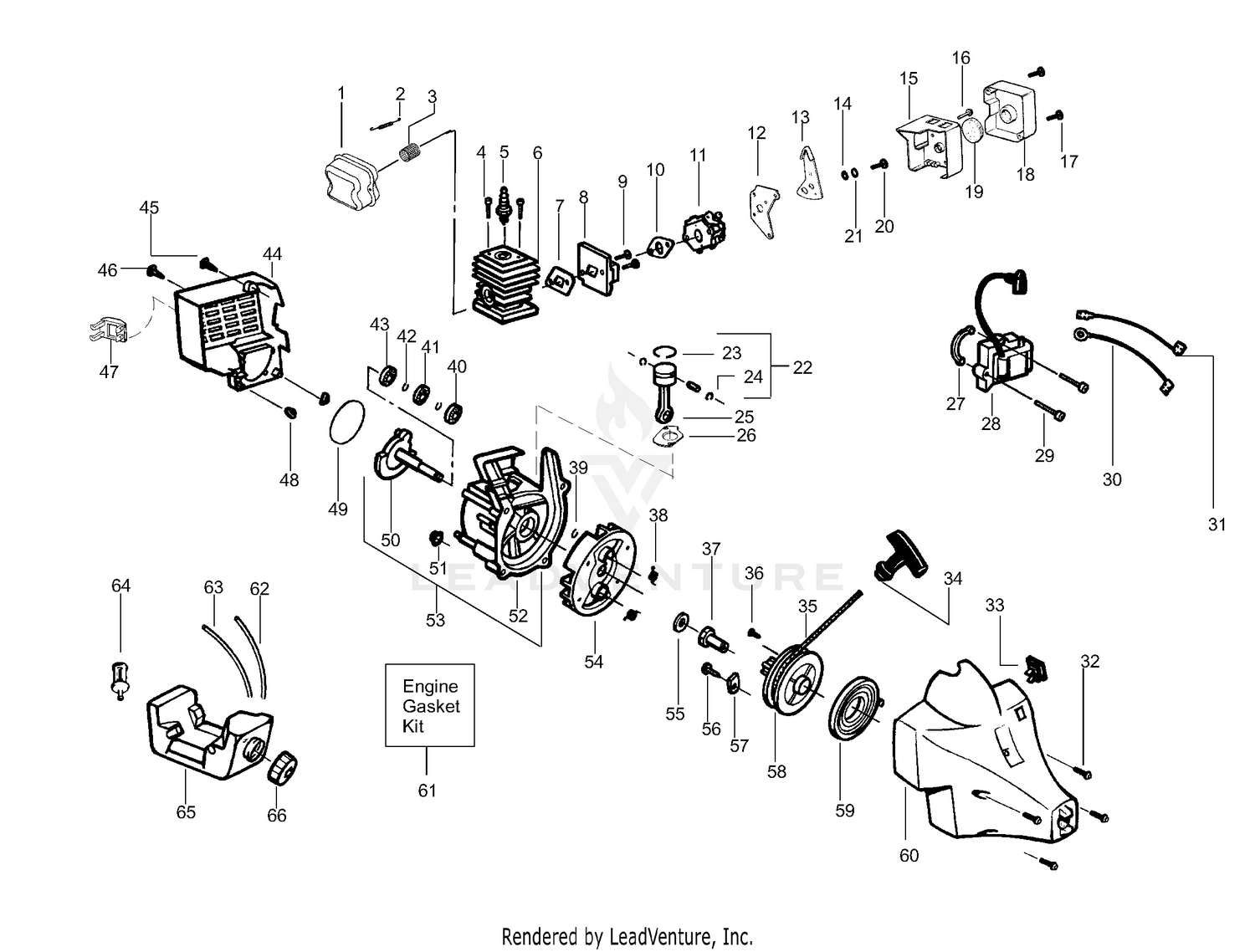

| Ref | Part Number | Description |
|---|
| 1 |
3-8602 |
DISCONTINUED Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
530016197 |
Muffler Spring Price: $1.99 |
| 3 |
3217-7 |
NUT-HEX Price: $0.28 |
| 4 |
5-3915 |
DISCONTINUED Price: Call Us |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
38-7330 |
SHIELD WASHER Price: $6.11 |
| 5 |
503235112 |
Spark Plug This part replaces 952030201. Price: $5.99 |
| 6 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 6 |
530012416 |
Cylinder This part replaces 530069757. Price: $17.99 |
| 7 |
282-4 |
SHACKLE Price: $32.98 |
| 7 |
530019243 |
Gasket-Cylind./Carb. Price: $1.99 |
| 8 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 8 |
530069758 |
Carb. Adaptor Kit Price: $8.99 |
| 9 |
3-8718 |
DISCONTINUED Price: Call Us |
| 9 |
530016014 |
Screw Price: $1.99 |
| 10 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 10 |
530019194 |
Gasket-Carb. Price: $1.99 |
| 11 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 12 |
27-5560 |
DISCONTINUED Price: Call Us |
| 12 |
530047914 |
Choke Plate Mounting Price: $3.99 |
| 13 |
3-8601 |
DISCONTINUED Price: Call Us |
| 13 |
530047916 |
Choke Lever Price: $1.99 |
| 14 |
530015254 |
Washer Price: $1.99 |
| 14 |
6-9960 |
DISCONTINUED Price: Call Us |
| 15 |
38-7410 |
DISCONTINUED Price: Call Us |
| 15 |
530054450 |
Air Box Price: $3.99 |
| 16 |
530015557 |
Screw Price: $1.99 |
| 16 |
8-5129 |
DISCONTINUED Price: Call Us |
| 17 |
5-4033 |
DISCONTINUED Price: Call Us |
| 17 |
530015957 |
Screw Price: $1.99 |
| 18 |
323-7 |
SCREW-HH Price: $0.65 |
| 18 |
530049095 |
Air Filter Cover Price: $3.33 |
| 19 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 19 |
530047932 |
Air Filter Foam Price: $1.99 |
| 20 |
256-161 |
DISCONTINUED Price: Call Us |
| 20 |
530015849 |
Screw Price: $1.99 |
| 21 |
28-1220 |
SPROCKET ASM *R Price: $503.87 |
| 21 |
530015852 |
Spacer-Choke Price: $1.99 |
| 22 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 23 |
28-1230 |
DISCONTINUED Price: Call Us |
| 23 |
530053565 |
Piston Ring Price: $1.28 |
| 24 |
321-11 |
SCREW-HH Price: $0.36 |
| 24 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 25 |
5-3942 |
DISCONTINUED Price: Call Us |
| 25 |
530069615 |
Connecting Rod Ass'y. Price: $14.99 |
| 26 |
5-1865 |
DISCONTINUED Price: Call Us |
| 26 |
530019223 |
Gasket-Cylinder Price: $1.99 |
| 27 |
28-1520 |
DISCONTINUED Price: Call Us |
| 27 |
530036145 |
Spacer-Module Price: $1.99 |
| 28 |
40-7350 |
DISCONTINUED Price: Call Us |
| 29 |
3290-414 |
WASHER-BELLEVILLE Price: $1.97 |
| 29 |
530015954 |
Screw Price: $1.99 |
| 30 |
3219-3 |
NUT-HEX Price: $0.34 |
| 30 |
530049389 |
Ground Wire Ass'y. Price: $1.99 |
| 31 |
38-7780 |
DISCONTINUED Price: Call Us |
| 31 |
530049390 |
Lead Wire Ass'y. Price: $0.28 |
| 32 |
38-6820 |
DISCONTINUED Price: Call Us |
| 32 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 33 |
40-8060 |
DISCONTINUED Price: Call Us |
| 33 |
530071356 |
Switch-Momentary This part replaces 530038114. Price: $4.99 |
| 34 |
323-6 |
SCREW-HH Price: $0.66 |
| 34 |
530027569 |
Starter Handle Price: $1.99 |
| 35 |
38-9510 |
DISCONTINUED Price: Call Us |
| 35 |
530069232 |
Rope Kit Price: $3.99 |
| 36 |
38-7790 |
DISCONTINUED Price: Call Us |
| 36 |
530016080 |
Screw Price: $1.99 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
530027953 |
Drive Coupling Price: $1.99 |
| 38 |
29-3910 |
DISCONTINUED Price: Call Us |
| 38 |
530023817 |
Starter Dog Spring Price: $1.99 |
| 39 |
5-1705 |
END SKID ASM Price: $139.95 |
| 39 |
530015941 |
Retainer Ring-C'shaft Price: $1.99 |
| 40 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 40 |
530032124 |
Outer Bearing Price: $4.99 |
| 41 |
237-37 |
BUMPER-RUBBER Price: $4.33 |
| 41 |
530019179 |
C'case Seal Price: $2.99 |
| 42 |
119-4151 |
SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 42 |
530015945 |
Retain. Ring-C'case Price: $1.99 |
| 43 |
38-7420 |
BEDKNIFE, RM Price: $72.14 |
| 43 |
530032125 |
Inner Bearing Price: $11.99 |
| 44 |
5-4048 |
DISCONTINUED Price: Call Us |
| 44 |
530053320 |
Rear Shroud Price: $6.99 |
| 45 |
38-6870 |
DISCONTINUED Price: Call Us |
| 45 |
530015880 |
Screw Price: $1.99 |
| 46 |
5-3824 |
DISCONTINUED Price: Call Us |
| 46 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 47 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 48 |
5-2186 |
REEL BEARING Price: $45.95 |
| 48 |
530036793 |
Isolator-Shroud Price: $5.99 |
| 49 |
38-7800 |
DISCONTINUED Price: Call Us |
| 50 |
5-3838 |
DISCONTINUED Price: Call Us |
| 50 |
530054083 |
Crankshaft Ass'y. Price: $5.99 |
| 51 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 51 |
530036792 |
Isolator-C'Case Price: $4.99 |
| 52 |
253-121 |
DISCONTINUED Price: Call Us |
| 53 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 54 |
3296-45 |
NUT-HEX Price: $3.79 |
| 54 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 55 |
3220-3 |
NUT-HJ Price: $0.28 |
| 55 |
530015828 |
Washer-Flat Price: $1.99 |
| 56 |
38-7730 |
DISCONTINUED Price: Call Us |
| 56 |
530015957 |
Screw Price: $1.99 |
| 57 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 57 |
530016226 |
Retainer-Can Price: $1.99 |
| 58 |
5-3837 |
DISCONTINUED Price: Call Us |
| 59 |
5-1704 |
DISCONTINUED Price: Call Us |
| 59 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 60 |
322-2 |
SCREW-HH Price: $0.69 |
| 60 |
530054420 |
Fan Housing Ass'y Price: $19.99 |
| 61 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 62 |
2-1590 |
DISCONTINUED Price: Call Us |
| 62 |
530069247 |
Fuel Line (Small) Price: $3.99 |
| 63 |
38-6860 |
DISCONTINUED Price: Call Us |
| 63 |
530069216 |
Fuel Line (Large) Price: $3.99 |
| 64 |
38-6910 |
DISCONTINUED Price: Call Us |
| 64 |
530095646 |
Fuel Pickup Ass'y. Price: $2.99 |
| 65 |
3256-22 |
WASHER-FLAT Price: $0.39 |
