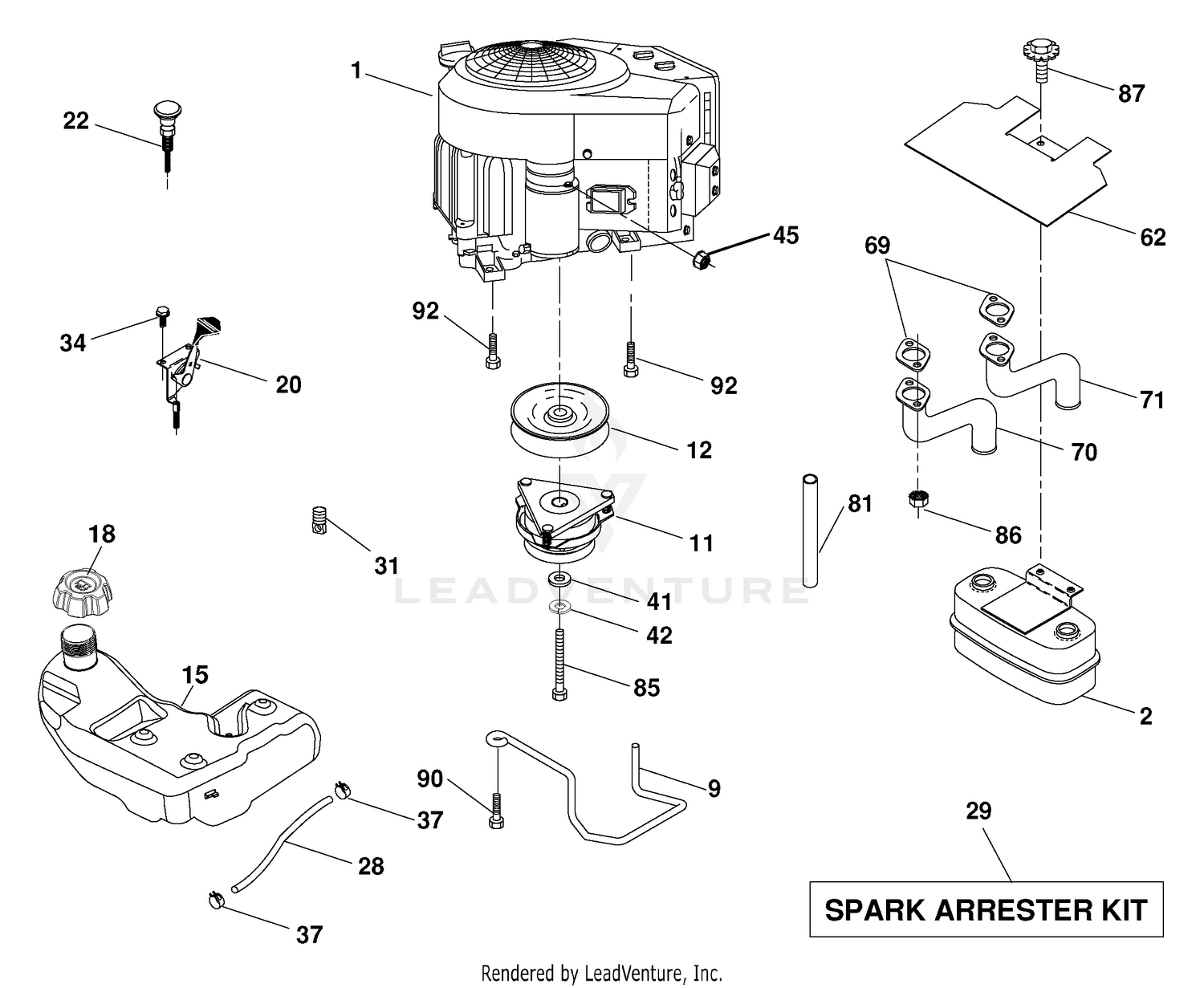

| Ref | Part Number | Description |
|---|
| 1 |
98-9508 |
WASHER-SHAFT, R-ARM Price: $0.47 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
98-9385 |
WASHER-FLAT Price: $1.24 |
| 3 |
98-9393 |
NUT Price: $2.72 |
| 4 |
98-9503 |
NUT Price: $1.33 |
| 5 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 6 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 7 |
98-9365 |
SCREW-SET Price: $0.99 |
| 8 |
105-3790 |
R-ARM SHAFT ASM This part replaces 98-9612. Price: $28.61 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
98-9370 |
CLIP-CIRCULAR, EXTERNAL Price: $1.30 |
| 10 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 11 |
583389701 |
KIT.SVC.CLUTCH.ELE.180505 This part replaces 532180505. Price: $299.99 |
| 11 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 13 |
98-9391 |
SCREW-SET, ROCKER ARM Price: $5.98 |
| 14 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 15 |
98-9626 |
SPRING-VALVE Price: $10.57 |
| 16 |
107-9092 |
RETAINER-SPRING This part replaces 98-9498. Price: $2.58 |
| 17 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 18 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 19 |
98-9506 |
STUD Price: $5.98 |
| 20 |
112-7019 |
VALVE-EXHAUST This part replaces 98-9625. Price: $56.65 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 70 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 71 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
