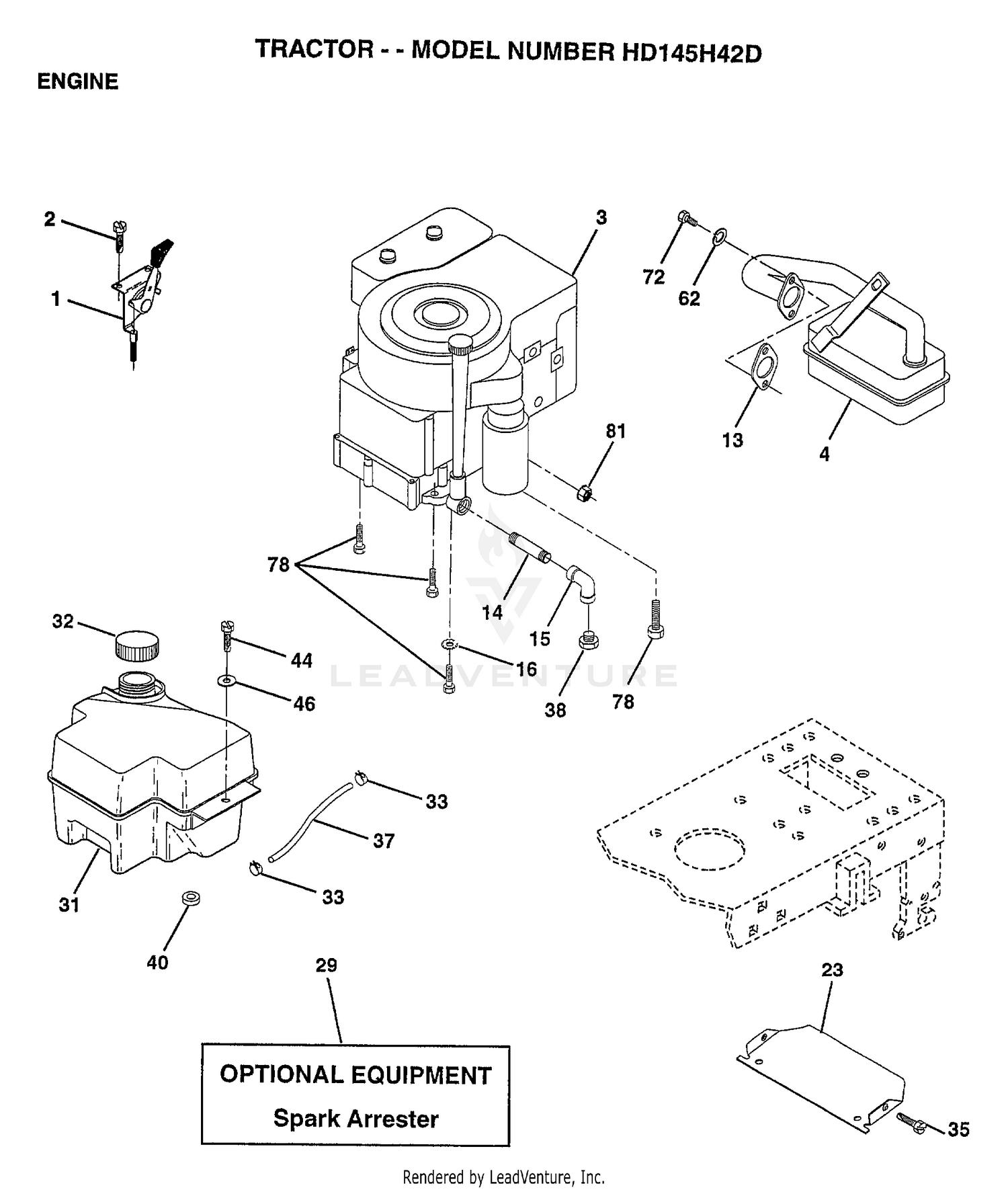

| Ref | Part Number | Description |
|---|
| 1 |
140310 |
CONTROL THROTTLE Price: Call Us |
| 1 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 2 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 3 |
287777 |
ENGINE B&S Price: Call Us |
| 3 |
322-3 |
SCREW-HH Price: $0.79 |
| 4 |
137352 |
MUFFLER Price: Call Us |
| 4 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 5 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
105-0102 |
CABLE-THROTTLE Price: $55.32 |
| 7 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 9 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 10 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 11 |
70-1480 |
RELAY Price: $105.19 |
| 12 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 13 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 14 |
321-36 |
SCREW-HH Price: $1.83 |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 17 |
93-7598 |
LEVER-THROTTLE This part replaces 93-7598-03. Price: $39.13 |
| 18 |
233-42 |
KNOB Price: $12.88 |
| 19 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 20 |
105-9268 |
DECAL-INFORMATION, SOLENOID (CE) Price: $104.02 |
| 21 |
105-3352 |
HARNESS-WIRE, MAIN Price: $768.43 |
| 22 |
92-7396-03 |
MOUNT-CABLE Price: $12.51 |
| 23 |
156123 |
SHIELD-HEAT Price: Call Us |
| 23 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 24 |
52-5910 |
RING-RETAINING Price: $3.64 |
| 25 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 26 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 27 |
32128-25 |
NUT-HF Price: $3.19 |
| 28 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 29 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 30 |
85-6910 |
DECAL-RATING, NOISE Price: $7.03 |
| 31 |
140280 |
SUB= 161911 Price: Call Us |
| 31 |
2412-150 |
CLIP-J Price: $1.63 |
| 32 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 33 |
94-8146 |
STRIP-FOAM Price: $8.78 |
| 34 |
66-8800 |
RELAY Price: $87.56 |
| 35 |
17490512 |
SCREW Price: Call Us |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 72 |
71070512 |
SCREW Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
