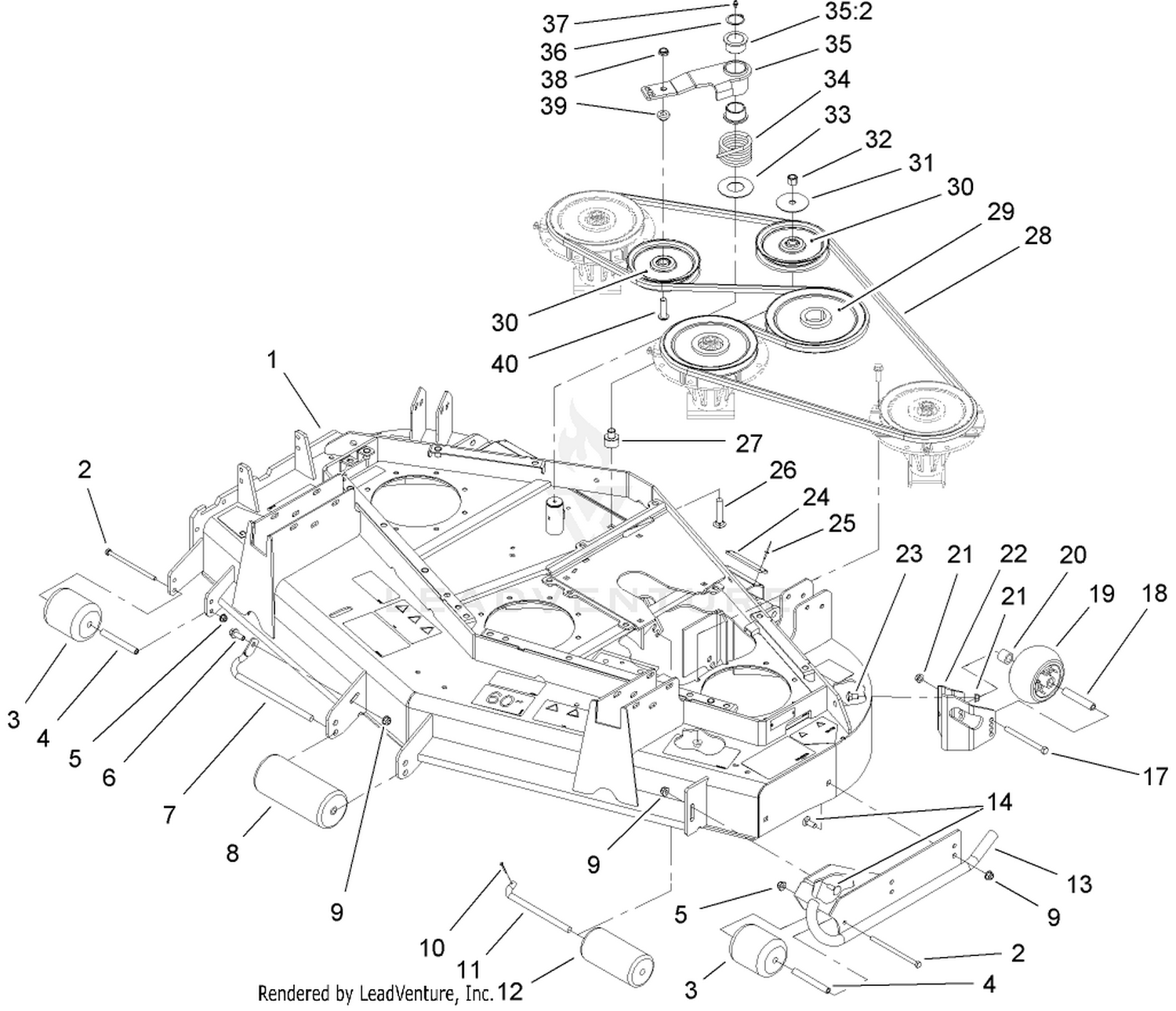

| Ref | Part Number | Description |
|---|
| 1 |
107-7271 |
DECK ASM Price: $5,494.67 |
| 2 |
322-49 |
BOLT-HH Price: $2.57 |
| 3 |
93-4803 |
ROLLER-DECK Price: $41.58 |
| 4 |
105-4549 |
SPACER-ROLLER Price: $10.26 |
| 5 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 6 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 7 |
68-6840 |
SHAFT-ROLLER Price: $64.07 |
| 8 |
68-6710 |
ROLLER Price: $59.98 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 11 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 12 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 13 |
108-4379-01 |
LH SKID ASM Price: $362.57 |
| 14 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 17 |
323-23 |
SCREW-HH Price: $2.07 |
| 18 |
98-7912 |
TUBE-SPANNER Price: $12.23 |
| 19 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 20 |
98-7913 |
TUBE-SPACER Price: $6.81 |
| 21 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 22 |
106-7354-01 |
MOUNT-WHEEL, LH Price: $102.99 |
| 23 |
3231-1 |
SCREW-CARR Price: $0.99 |
| 24 |
108-1914 |
PAD-BUMPER Price: $11.14 |
| 25 |
3269-24 |
RIVET Price: $1.79 |
| 26 |
3233-34 |
SCREW-CARR Price: $7.98 |
| 27 |
108-1908 |
SPACER-IDLER Price: $23.93 |
| 28 |
108-4391 |
BELT-HEX Price: $164.82 |
| 29 |
108-1950 |
PULLEY Price: $230.65 |
| 30 |
140-5847 |
PULLEY-IDLER This part replaces 01-268-0160. Price: $98.46 |
| 31 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 32 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 33 |
108-1926 |
WASHER Price: $5.30 |
| 34 |
108-1921 |
SPRING-TORSION Price: $28.33 |
| 35 |
140-7078 |
IDLER ARM ASM This part replaces 108-1930. Price: $49.85 |
| 36 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 37 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 38 |
3296-45 |
NUT-HEX Price: $3.79 |
| 39 |
108-1924 |
SPACER-IDLER Price: $11.13 |
