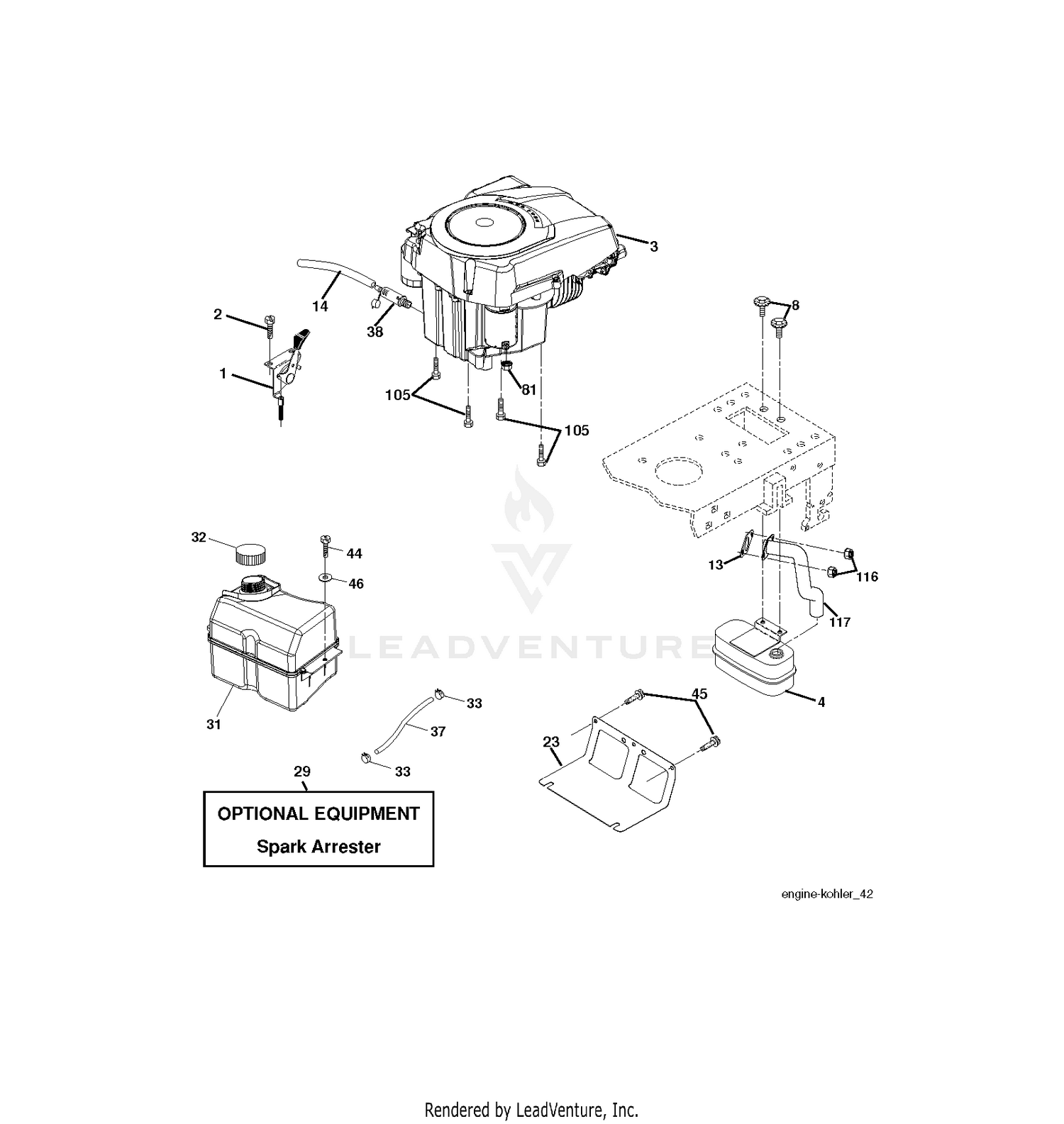

| Ref | Part Number | Description |
|---|
| 1 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 2 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 4 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
105-3741 |
SPRING-START Price: $3.78 |
| 13 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 20 |
98-9681 |
SPRING-GOVERNOR Price: $12.06 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
108-4427 |
FORK LEVER ASM Price: $534.22 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 35 |
98-9692 |
ROLLER Price: $11.45 |
| 36 |
107-9083 |
LEVER-THRUST Price: $29.76 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 40 |
107-9084 |
LEVER-FORK Price: $101.37 |
| 43 |
108-2867 |
SPRING Price: $3.96 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 45 |
98-7580 |
BALL Price: $0.04 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 50 |
107-9085 |
SHAFT-LEVER, FORK Price: $24.90 |
| 60 |
107-9086 |
SHAFT-LEVER, FORK Price: $24.90 |
| 70 |
98-9570 |
BEARING-MINIATURIZE Price: $13.60 |
| 80 |
115-4122 |
COVER-SHAFT, FORK LEVER Price: $6.97 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 90 |
98-9682 |
GASKET Price: $0.95 |
| 100 |
98-9350 |
BOLT Price: $0.98 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 110 |
98-9567 |
COLLAR Price: $3.78 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 117 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
