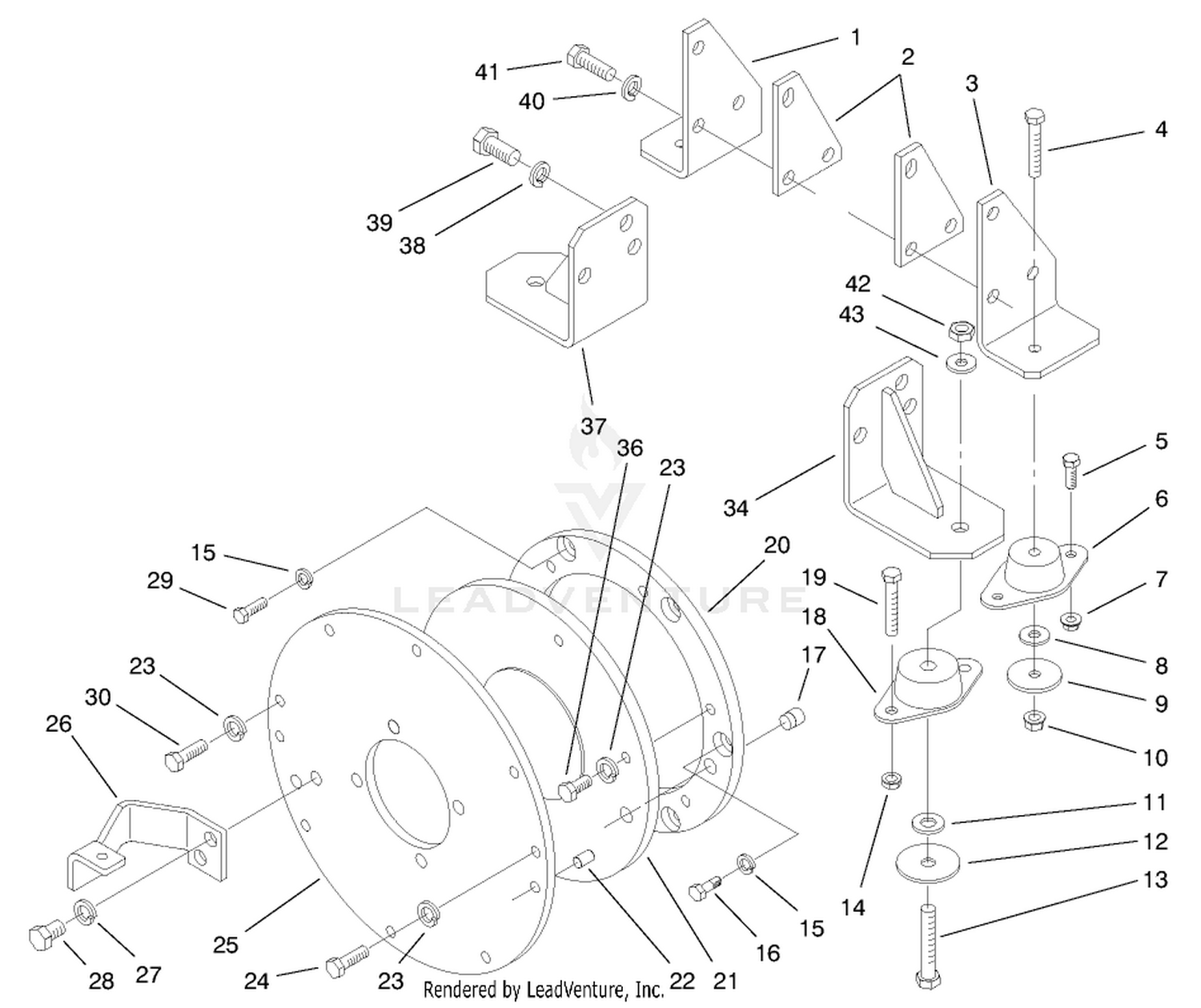

| Ref | Part Number | Description |
|---|
| 1 |
98-1204-03 |
BRACKET-ENGINE, LH REAR Price: $49.06 |
| 2 |
98-1200-03 |
SPACER Price: $22.92 |
| 3 |
98-1205-03 |
BRACKET-ENGINE, RH REAR Price: $46.61 |
| 4 |
323-11 |
SCREW-HH Price: $1.08 |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 7 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 9 |
62-7400 |
DECAL Price: $24.54 |
| 10 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 11 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 12 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 13 |
33116-070 |
SCREW-HH Price: $4.14 |
| 14 |
32128-21 |
NUT-HF Price: $0.39 |
| 15 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 16 |
98-1213 |
BOLT-SHOULDER Price: $9.00 |
| 17 |
58-3590 |
DOWEL Price: $5.50 |
| 18 |
98-3024 |
MOUNT-ENGINE This part replaces 94-8200. Price: $103.88 |
| 19 |
323-11 |
SCREW-HH Price: $1.08 |
| 20 |
106-7093 |
KIT-COUPLING This part replaces 98-1210-01. Price: $218.24 |
| 21 |
92-1753 |
COUPLING-SPRING Price: $696.17 |
| 22 |
98-1212 |
PIN-PLATE, PUMP Price: $38.00 |
| 23 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 24 |
43-0090 |
SCREW-HH Price: $8.05 |
| 25 |
98-1211-03 |
PLATE-ADAPTER, PUMP Price: $306.66 |
| 26 |
98-7066-03 |
BRACKET-DAMPER Price: $48.17 |
| 27 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 28 |
3213-20 |
SCREW-HH Price: $1.76 |
| 29 |
33114-020 |
SCREW-HH Price: $0.28 |
| 30 |
56-2140 |
SCREW-HH Price: $4.17 |
| 34 |
98-1206-01 |
Bracket-Front LH Price: Call Us |
| 36 |
70-8470 |
SCREW-HH Price: $1.76 |
| 37 |
98-1207-03 |
BRACKET-FRONT, LH Price: $74.95 |
| 38 |
43-5950 |
WASHER-LOCK, SPRING Price: $1.15 |
| 39 |
43-3210 |
SCREW-HH Price: $4.27 |
| 40 |
48-8070 |
WASHER-LOCK Price: $0.47 |
| 41 |
43-3180 |
SCREW-HH Price: $18.78 |
| 42 |
48-9530 |
NUT Price: $1.78 |
