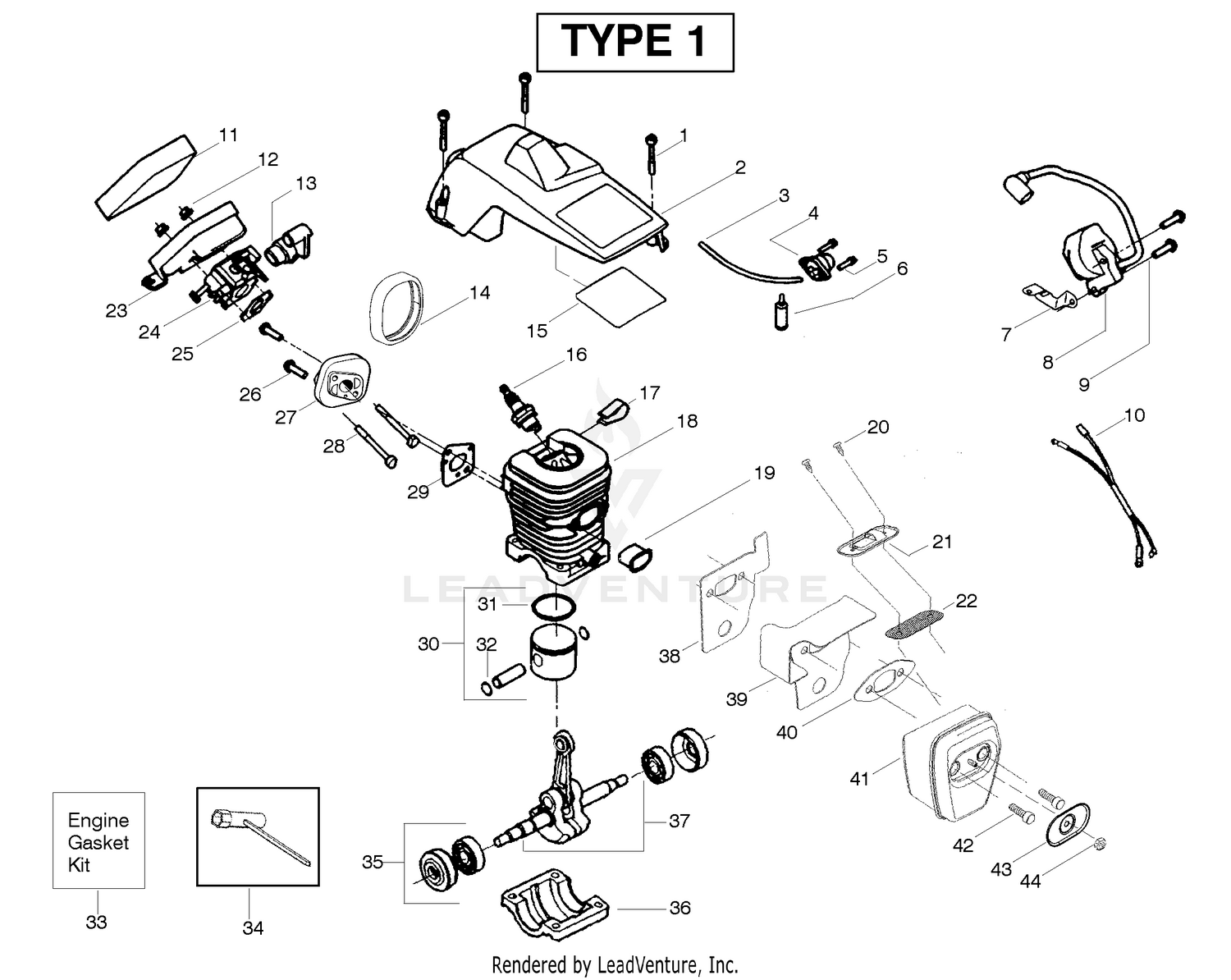

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
94-2703 |
PLUG Price: $1.86 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 3 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
530015780 |
Screw Price: $1.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
530095646 |
Assy-Fuel Pick-up Price: $2.99 |
| 7 |
530047442 |
Strap-Ground Price: $1.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
530071905 |
KIT This part replaces 530039167. Price: $37.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
530015814 |
Screw Price: $1.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
530049117 |
Assy-Wire Harness Price: $7.99 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
530037793 |
Foam- Air Filter Price: $1.99 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
530016101 |
Nut Price: $1.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
530035526 |
Grommet-Carb Adjust Price: Call Us |
| 14 |
530054144 |
Seal-Carb Adapter Price: $2.99 |
| 15 |
107-3273-01 |
BEDBAR Price: $303.02 |
| 15 |
530055698 |
Reflector-Heat Price: $1.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 17 |
137-6094 |
BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 17 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 18 |
530012550 |
Cylinder This part replaces 530071412. Price: $17.99 |
| 19 |
530037652 |
Insulator-Heat Price: $1.99 |
| 20 |
530016351 |
Screw-Outlet cover Price: $1.99 |
| 21 |
530055759 |
Cover - Outlet Price: $2.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
530047604 |
Air Filter Housing Price: $1.99 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 24 |
530071409 |
Kit-Carburetor (WT-599) Price: $37.99 |
| 24 |
530071619 |
Kit-Carburetor (W-9A) Price: $64.99 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 25 |
530069608 |
Gasket-Carb. Price: $5.99 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 26 |
530016386 |
Screw Price: $5.99 |
| 27 |
108-4269-01 |
WEIGHT Price: $146.07 |
| 27 |
530049700 |
Carb. Adapter Price: $3.99 |
| 28 |
107-2954 |
NUT-ADJUSTER, BEARING Price: $17.63 |
| 28 |
530016187 |
Screw Price: $1.99 |
| 29 |
530069608 |
Gasket-Carb Adaptor Price: $5.99 |
| 29 |
93-2489 |
BEARING Price: $24.37 |
| 30 |
107-4028 |
SEAL-GREASE Price: $21.51 |
| 31 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 32 |
137-8433 |
REEL+,7IN FWY(22)11 BLD This part replaces 127-2085. Price: $671.21 |
| 32 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 34 |
530031163 |
Bar Wrench Price: $4.99 |
| 35 |
530056363 |
Assy-Seal & Bearing Price: $11.99 |
| 36 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 36 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 37 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 38 |
530054885 |
Backplate Price: $5.99 |
| 39 |
530054880 |
Guide-Outlet Price: $5.99 |
| 40 |
530069608 |
Gasket-Muffler Price: $5.99 |
| 42 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 43 |
530055586 |
Cover-Bolt Price: $0.99 |
| 44 |
574266401 |
NUT 10MM BRASS This part replaces 530016359. Price: $1.99 |
