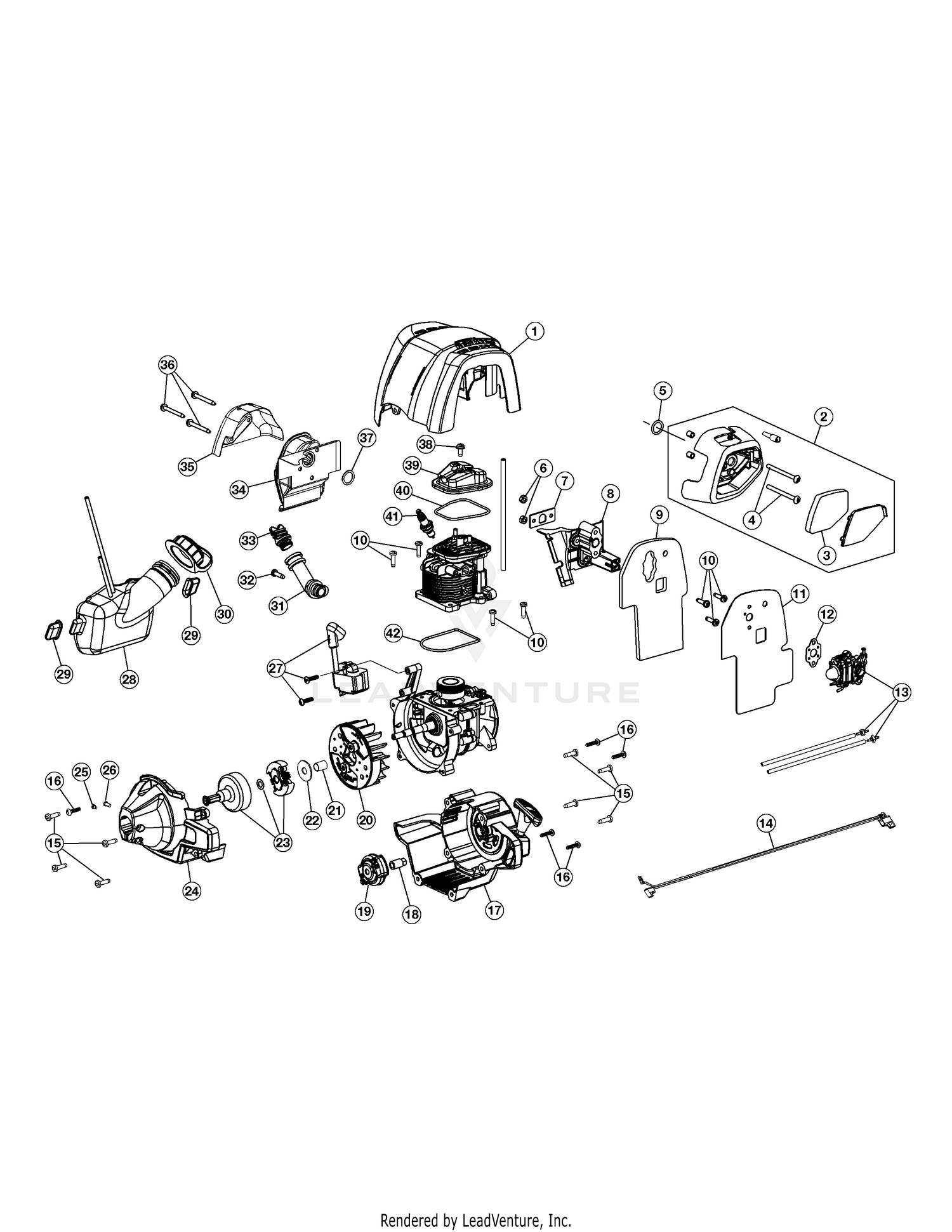

| Ref | Part Number | Description |
|---|
| 1 |
753-06940 |
ENGINE COVER TOP Not Available Price: |
| 2 |
753-08380 |
AIR CLEANER ASSEMBLY Not Available Price: |
| 3 |
753-06085 |
Air Filter Price: $3.05 |
| 4 |
753-06939 |
Screw Price: $2.83 |
| 5 |
791-181751 |
Carburetor O-Ring Price: $3.92 |
| 6 |
712-04099 |
Nut Price: $5.94 |
| 7 |
753-05673 |
Insulator Gasket Price: $9.07 |
| 8 |
731-08964 |
Insulator Price: $4.10 |
| 9 |
753-06122 |
HEAT SHLD CARB AC5 Not Available Price: |
| 10 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 11 |
721-04616 |
Carburetor Baffle Price: $2.29 |
| 12 |
791-181709 |
Carburetor Gasket Price: $4.30 |
| 13 |
753-06083 |
Carburetor Assembly (with Fuel Lines) Price: $46.32 |
| 14 |
794-00047A |
Lead Wires Price: $4.92 |
| 15 |
710-04604A |
SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 16 |
710-04194 |
Screw Price: $3.66 |
| 17 |
753-08449 |
STARTER HOUSING ASSEMBLY Not Available This part replaces 753-06942. Price: |
| 18 |
753-06104 |
Electric Start Adapter Price: $3.61 |
| 19 |
753-06091 |
Pawl Assembly Price: $7.90 |
| 20 |
753-06493 |
FLYWHEEL Not Available Price: |
| 21 |
753-05814 |
Spacer Price: $3.58 |
| 22 |
9162-1 |
Clutch Washer Price: $3.91 |
| 23 |
753-05860 |
Clutch Assembly Price: $22.50 |
| 24 |
753-06335 |
Clutch Cover Assembly Price: $4.39 |
| 25 |
791-182519 |
Anti-rotation Screw Price: $4.37 |
| 26 |
753-04291 |
SCREW:CLMPNG W/NUT Not Available Price: |
| 27 |
753-05907 |
Module Assembly Price: $45.78 |
| 28 |
753-06093 |
Fuel Tank (Incl. 32) Not Available Price: |
| 29 |
753-04084 |
Fuel Cap Not Available Price: |
| 30 |
753-05259 |
Fuel Tank Pad Price: $5.72 |
| 31 |
753-06087 |
OIL FILL TUBE Not Available Price: |
| 32 |
710-04604A |
SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 33 |
753-05408 |
Oil Plug (Incl. 5) This part replaces 753-05400. Price: $25.95 |
| 34 |
753-06334 |
Muffler Assembly Price: $15.79 |
| 35 |
753-06101 |
MUFFLER SHLD Not Available Price: |
| 36 |
710-04809 |
SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 37 |
753-05244 |
Muffler Gasket Price: $5.11 |
| 38 |
791-181025 |
Screw Price: $2.44 |
| 39 |
753-05901 |
Valve Cover Price: $7.13 |
| 40 |
753-05902 |
Valve O-Ring Price: $4.58 |
| 41 |
794-00082 |
Spark Plug Price: $6.35 |
| 42 |
753-05910 |
Cylinder O-Ring Price: $2.65 |
