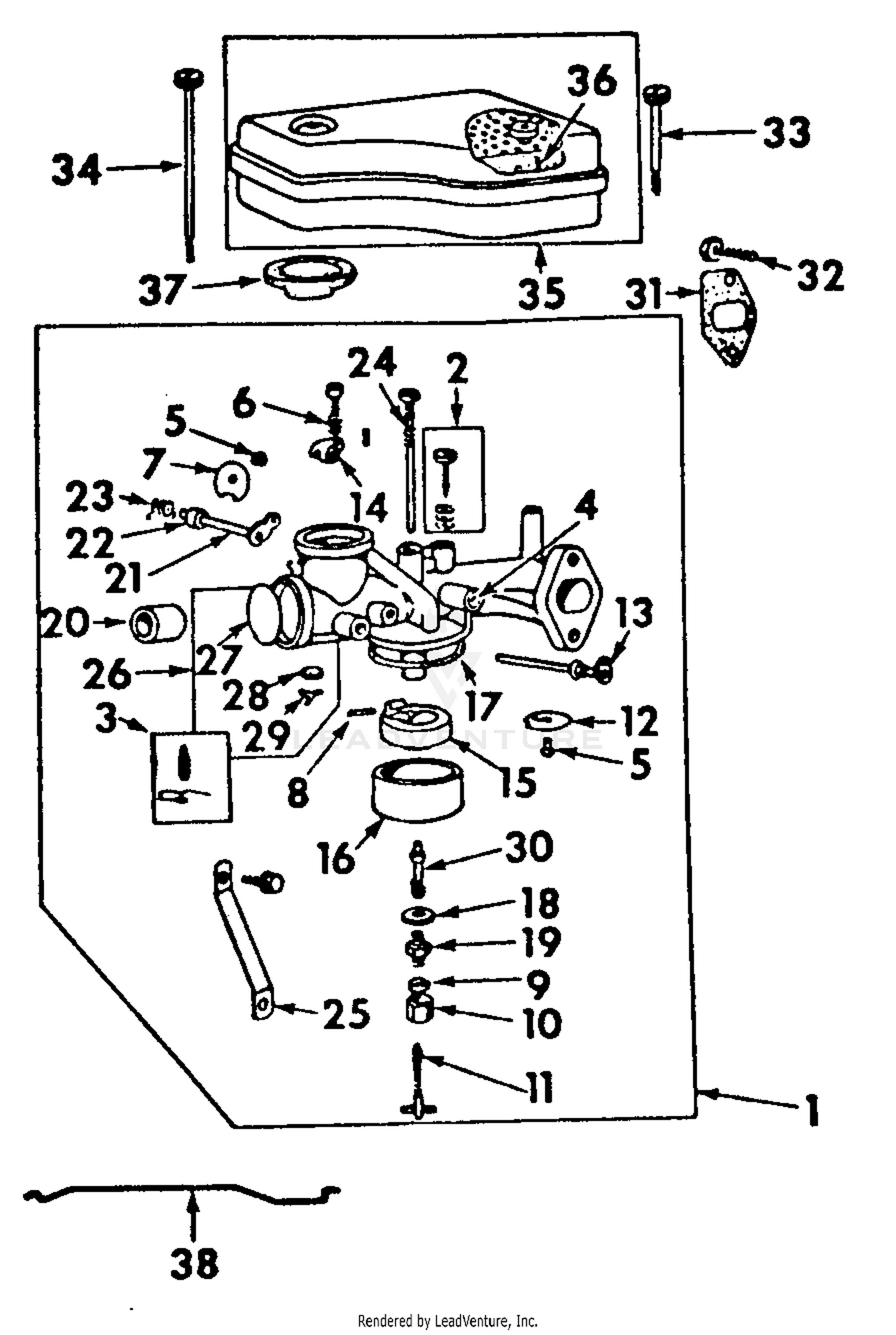

| Ref | Part Number | Description |
|---|
| 1 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 1 |
BS-491590 |
CARBURETOR ASSEMBLY Not Available Price: |
| 2 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 3 |
112-0169 |
SEATBELT ASM-SERVICE This part replaces 21-4191. Price: $283.31 |
| 4 |
324-5 |
SCREW-HH Price: $0.54 |
| 13 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 14 |
325-12 |
SCREW-HH Price: $2.27 |
| 15 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 16 |
3289-25 |
SCREW-SFH Price: $25.39 |
| 22 |
None |
Washer, Choke Shaft Felt |
| 31 |
BS-272554S |
INTAKE GASKET Not Available This part replaces BS-270824. Price: |
| 32 |
BS-93357 |
CARB MOUNTING SCREW Not Available Price: |
| 33 |
BS-93622 |
SCREW-AIR CLEANER Not Available Price: |
| 34 |
BS-93323 |
SCREW-AIR CLEANER Not Available Price: |
| 35 |
BS-391399 |
AIR CLEANER ASSY, AIR DUCTED Not Available Price: |
| 36 |
BS-270528S |
AIR FILTER CLEANER Not Available This part replaces BS-270528. Price: |
| 37 |
BS-270539 |
GASKET Not Available Price: |
| 38 |
BS-261117 |
LINK Not Available Price: |
| 539101080 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 539101714 |
539101714 |
SOLENOID Price: $22.99 |
| 539101768 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 539101768. Price: $24.99 |
| 539101771 |
539101771 |
FUSE, 7.5 AMP 32 VOLT ATO Price: $3.99 |
| 539102086 |
539102086 |
FUSE, 20 AMP 32 VOLT ATO Price: $5.99 |
| 539102463 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102463. Price: $129.99 |
| 539102617 |
539102617 |
SCREW, #1--24 X 1/2 SLOTTED Price: $2.99 |
| 539102678 |
539102678 |
TAPPED PLATE Price: $12.99 |
| 539102757 |
539102757 |
CABLE POSITIVE Price: $7.99 |
| 539102758 |
539102758 |
CABLE-NEGATIVE Price: $12.99 |
| 539102759 |
539102759 |
INSULATOR Price: $3.99 |
| 539102914 |
539102914 |
RELAY Price: $21.99 |
| 539103306 |
586108201 |
CABLE BATTERY POS RZ This part replaces 539103306. Price: $8.99 |
| 539104415 |
539104415 |
KAW PIGTAIL Price: $27.99 |
| 539104416 |
539104416 |
KOH PIGTAIL Price: $34.99 |
| 539104974 |
539104974 |
POST.CABLE LONG Price: $27.99 |
| 539107541 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 539107544 |
532140401 |
KEY MLD GEN DELTA This part replaces 539107544. Price: $5.99 |
| 539110074 |
576179401 |
HOUR METER This part replaces 539110074. Price: $27.99 |
| 539110950 |
539110950 |
FRAME HARNESS Price: $279.99 |
| 539976934 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 539976952 |
596039001 |
Screws This part replaces 539976952. Price: $2.99 |
| 539976977 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 539990053 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 539990072 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 539990372 |
539990761 |
NUT 1/4C CENTER LOCK This part replaces 539990372. Price: $2.99 |
| 539990717 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
