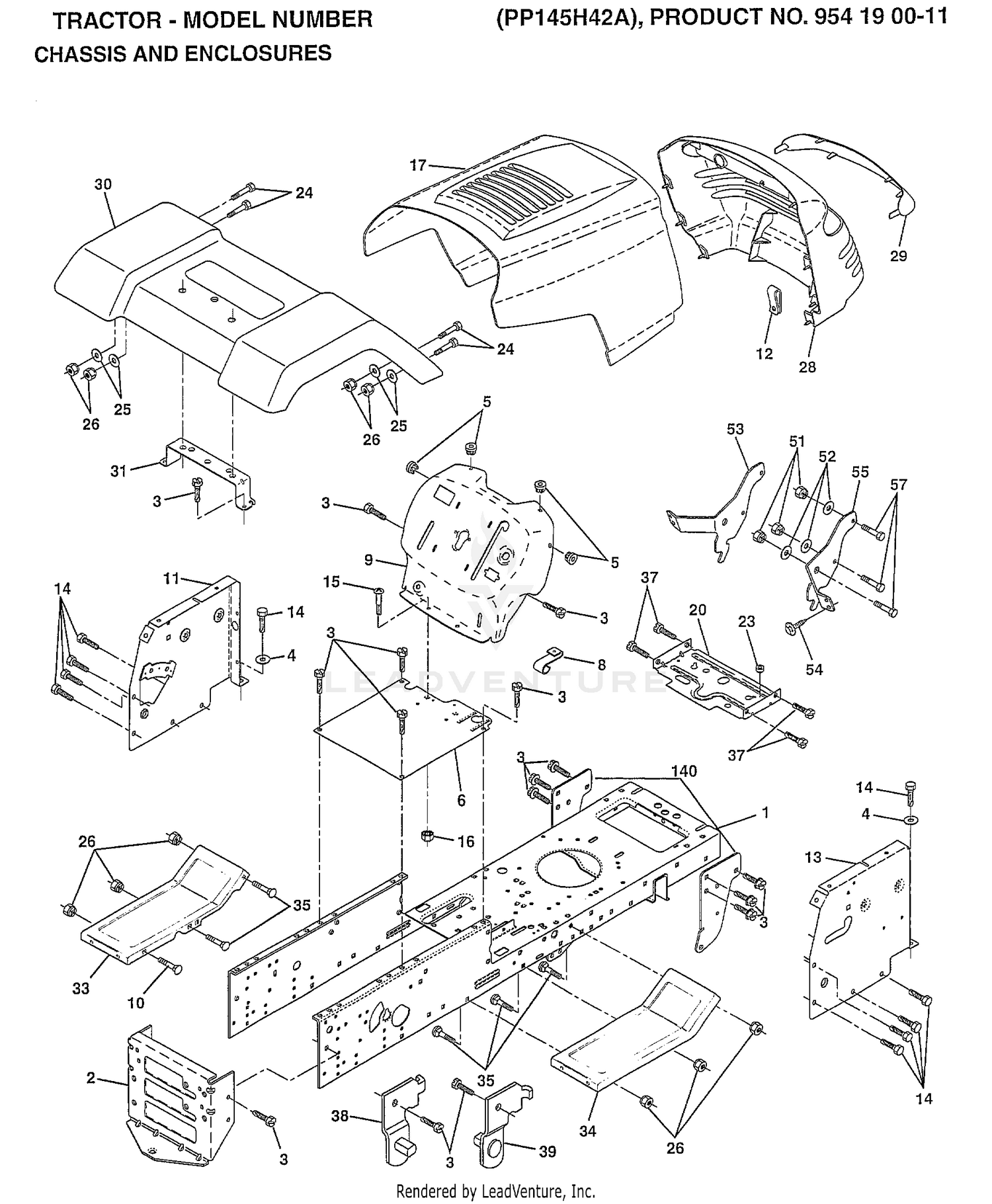

| Ref | Part Number | Description |
|---|
| 1 |
155051 |
CHASSIS ASM Price: Call Us |
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 2 |
106-9208 |
SHORT CYLINDER PIN ASM Price: $83.12 |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
104-0059 |
HYD HOSE ASM Price: $139.13 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 6 |
155923 |
SADDLE Price: Call Us |
| 6 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 7 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 8 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 8 |
155138 |
CLIP.RETAINER Price: Call Us |
| 9 |
154587X011 |
DASH.PANEL.ASSY Price: Call Us |
| 9 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 10 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 11 |
125-1906 |
PIN-CYLINDER This part replaces 105-9889. Price: $27.84 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 13 |
108-4435 |
CYLINDER-LIFT, HYD This part replaces 99-6987. Price: $791.42 |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 14 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 15 |
106-5954 |
BRACKET-SWITCH Price: $16.74 |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
139394X428 |
SUB= 159639X428 Price: Call Us |
| 17 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 19 |
112-6562 |
FLOW DIVIDER ASM This part replaces 105-3303. Price: $819.62 |
| 20 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 21 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 22 |
93-6687 |
DECAL-NO STEP Price: $14.45 |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 23 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 24 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 30 |
140001X421 |
FENDER PNT LT W Price: Call Us |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 33 |
145244X421 |
FOOTREST.LH.LT/GT Price: Call Us |
| 34 |
145243X421 |
FOOTREST.RH.LT/GT Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
