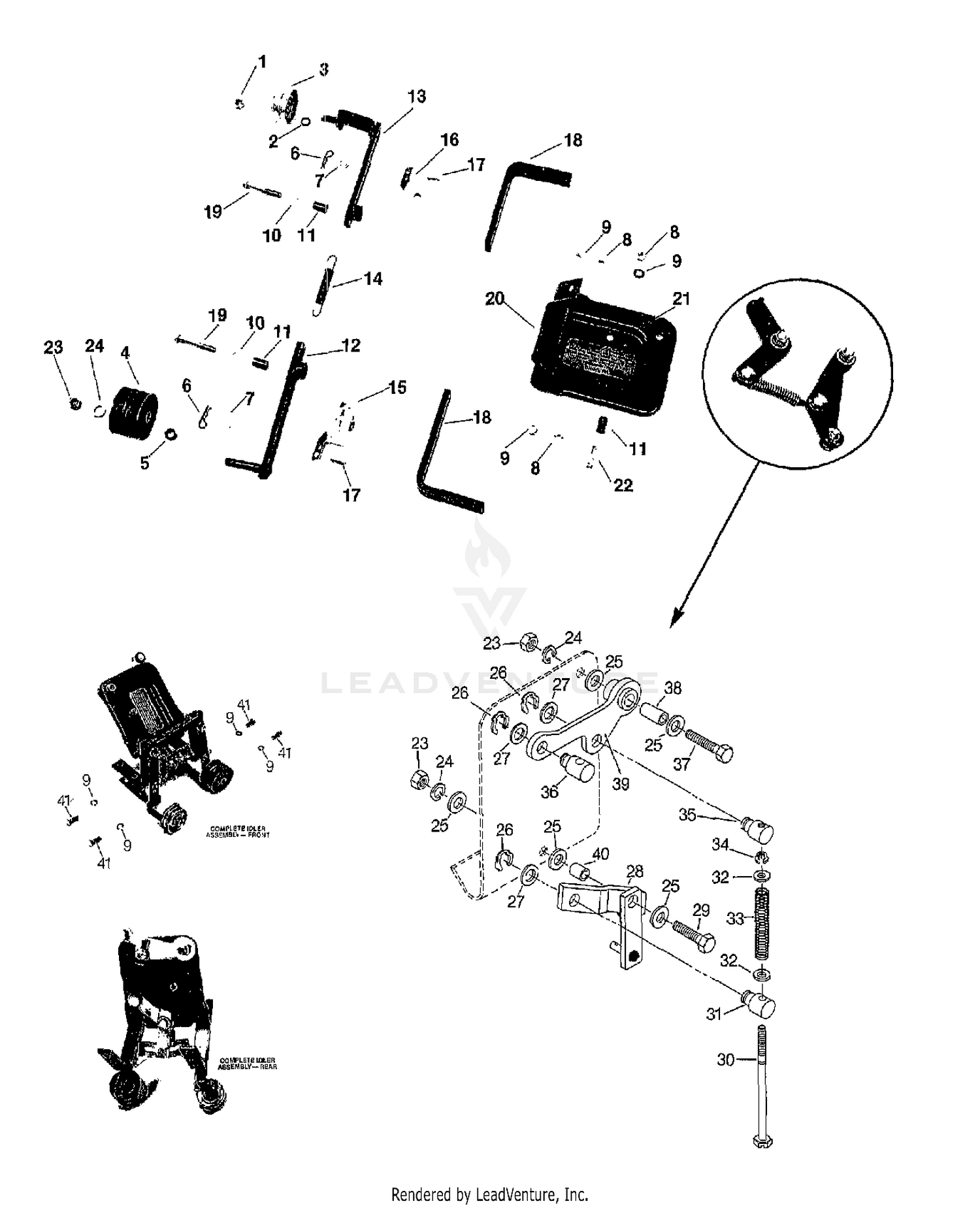

| Ref | Part Number | Description |
|---|
| 1 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 9837. Price: $3.90 |
| 2 |
20513 |
BUSHING-reverse idler pulley Price: Call Us |
| 3 |
9460 |
PULLEY- Idler, reverse tiller direction Price: Call Us |
| 4 |
756-04170 |
Forward Idler Pulley This part replaces 9090. Price: $31.29 |
| 5 |
9091 |
SPACER Price: Call Us |
| 6 |
714-04048 |
PIN - hair cotter This part replaces 9338. Price: $7.04 |
| 7 |
9900 |
WASHER -plain, 1/4" Price: $61.14 |
| 8 |
9801 |
NUT-hex, 5/16"-18 Price: Call Us |
| 9 |
9912 |
LOCKWASHER-5/16" Price: $19.56 |
| 10 |
20545 |
WASHER Not Available Price: |
| 11 |
9479 |
PIVOT BUSHING Price: Call Us |
| 12 |
20657 |
IDLER ARM-left, forward tiller direction Price: Call Us |
| 13 |
20656 |
IDLER ARM-right, reverse tiller direction Price: Call Us |
| 14 |
GW-1492099 |
SPRING .436X3.25 This part replaces 1492. Price: $8.99 |
| 15 |
20517-01 |
FORWARD LINK Not Available Price: |
| 16 |
20517-02 |
REVERSE LINK Price: Call Us |
| 17 |
9340 |
PIN Price: Call Us |
| 18 |
20751 |
MOUNT BAR-PNT (20691) Not Available Price: |
| 19 |
710-3103 |
Hex Cap Screw, 5/16-18 x 2.0 This part replaces 9741. Price: $4.02 |
| 21 |
50112 |
DECAL-safety (warning instructions on belts/pulleys) Price: Call Us |
| 22 |
9574 |
BOLT- hex head, 5/16"-18 x 1 1/4" Price: Call Us |
| 23 |
9802 |
NUT- hex, 3/8"-16 Price: Call Us |
| 24 |
9913 |
LOCKWASHER-3/8" Price: $1.89 |
| 25 |
GW-20553 |
SPACER .88X.385X.0 Not Available This part replaces 20553. Price: |
| 26 |
9515 |
RETAINING RING Price: Call Us |
| 27 |
GW-20546 |
WASHER Not Available This part replaces 20546. Price: |
| 28 |
20680 |
BELLCRANK Price: Call Us |
| 29 |
9712 |
BOLT- hex head, 3/8"-16 x 1 1/4" Price: Call Us |
| 30 |
20552 |
ADJUSTMENT BOLT Price: Call Us |
| 31 |
20504 |
PIVOT-lower Price: Call Us |
| 32 |
20554 |
WASHER-(between lower pivot and spring, and between spring and retaining ring) Price: Call Us |
| 33 |
20544 |
SPRING Price: Call Us |
| 34 |
GW-9514 |
Retaining Ring-klip ring-forward interlock lever This part replaces 9514. Price: $6.03 |
| 35 |
20505 |
PIVOT-upper Price: Call Us |
| 37 |
9558 |
BOLT-hex head, 3/8"-16 x 1 1/2" Price: Call Us |
| 38 |
9060 |
BUSHING -rod crank Price: Call Us |
| 39 |
20719 |
ROD CRANK Price: Call Us |
| 40 |
GW-20532 |
BUSHING-.5X.38X.4 Not Available This part replaces 20532. Price: |
