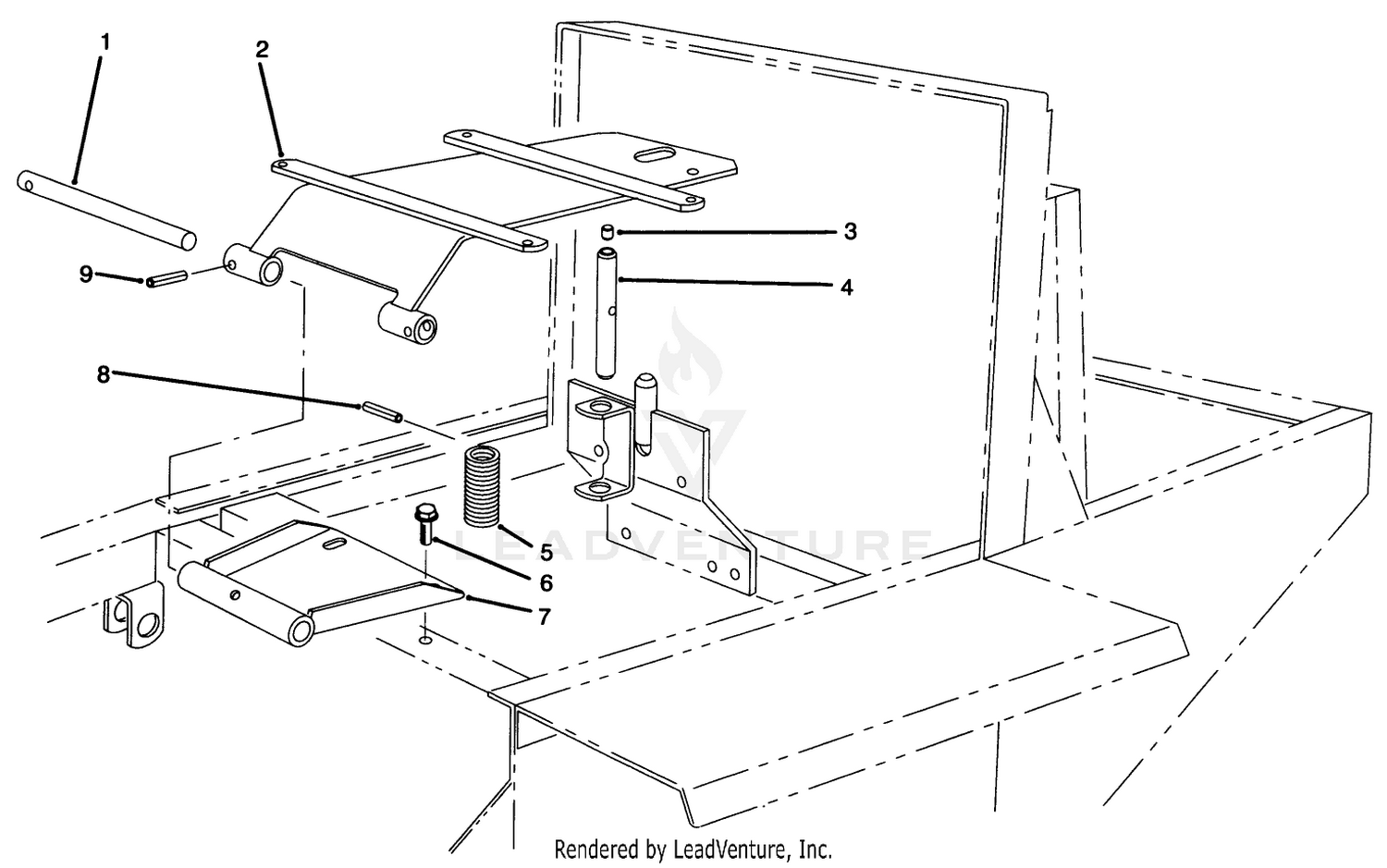

Seat Support Assembly
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 93-1359 | SHAFT-SEAT PIVOT Price: $21.96 |
| 2 | 93-1361-01 | SUPPORT-SEAT This part replaces 93-1361. Price: $297.11 |
| 3 | 28-6180 | PIN-PEDAL Price: $5.05 |
| 4 | 27-9870 | PIN-SWITCH, SEAT Price: $31.55 |
| 5 | 28-0570 | SPRING-COMPRESSION Price: $33.04 |
| 6 | 3234-17 | SCREW-HHF Price: $0.72 |
| 7 | 86-9920-01 | SEAT PIVOT ASM This part replaces 86-9920. Price: $81.82 |
| 8 | 32121-6 | PIN-ROLL, SLOTTED Price: $0.28 |
