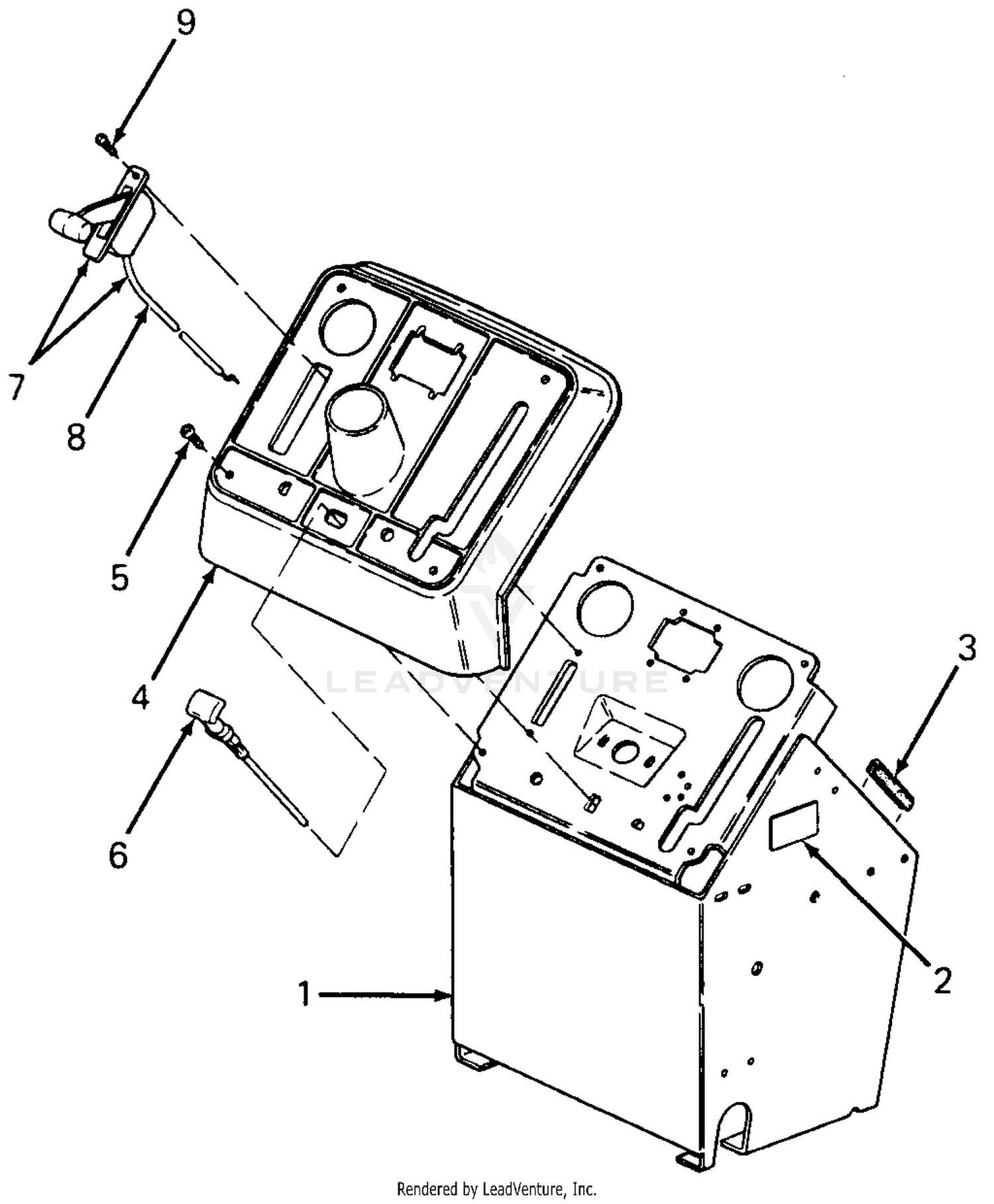

| Ref | Part Number | Description |
|---|
| 1 |
537110503 |
CLUTCH Price: $39.99 |
| 1 |
703-1527 |
ASSEMBLY-pedes Not Available Price: |
| 2 |
537359101 |
SPRING Price: $6.99 |
| 2 |
779-3296 |
LABEL-BOOSTER BATT Not Available Price: |
| 3 |
703-1368 |
STRIP-TRIM 4.0 INCH LONG Not Available Price: |
| 4 |
599531501 |
NEEDLE BEARING 12.7X15.88X14 This part replaces 503255201. Price: $8.99 |
| 4 |
731-3076 |
DASH PANEL Not Available Price: |
| 5 |
598718301 |
Gears This part replaces 537252601. Price: $9.99 |
| 5 |
710-3009 |
Screw, Pan Hd Cutting, #10-24 X .75 Lg Price: $6.24 |
| 6 |
544180104 |
OIL PUMP ASSY Price: $24.99 |
| 6 |
946-3022B |
Choke Control 46" Lg. This part replaces 746-3022. Price: $34.55 |
| 7 |
503891601 |
SPRING Price: $5.99 |
| 8 |
503230060 |
WASHER Price: $4.99 |
| 8 |
946-3023B |
THROTTLE CABLE This part replaces 746-3023. Price: $33.53 |
| 9 |
537069302 |
PUMP PISTON Price: $14.99 |
| 10 |
503891501 |
SPRING Price: $3.99 |
| 11 |
721116430 |
PIN Price: $2.99 |
| 12 |
537027101 |
ADJUSTER Price: $5.99 |
| 13 |
503217416 |
SCREW Price: $2.99 |
| 14 |
537261501 |
OIL HOSE Price: $9.99 |
| 15 |
585514001 |
OIL HOSE This part replaces 537261401. Price: $5.99 |
