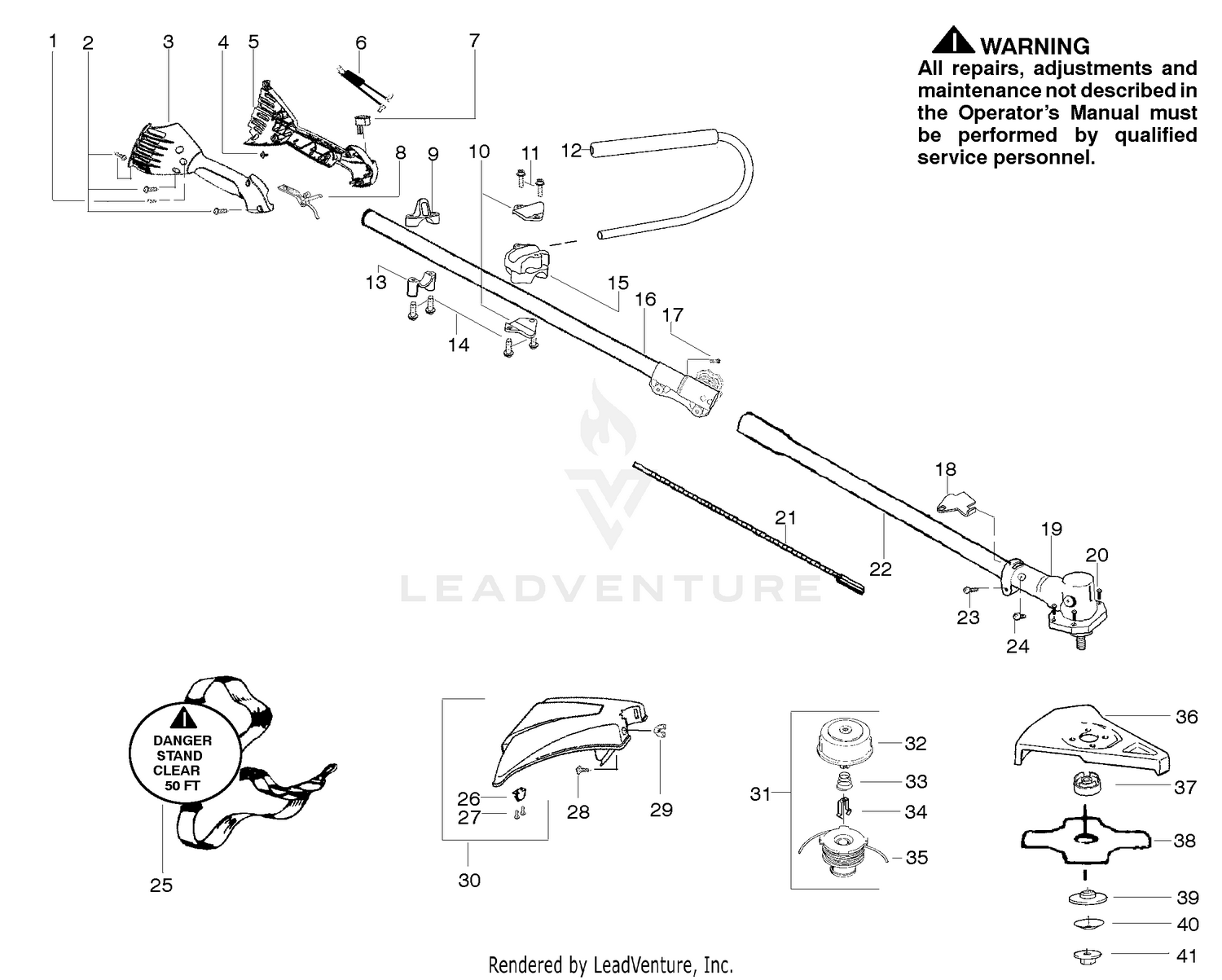

Shaft
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015886 | Screw This part replaces 530015805. Price: $1.99 |
| 2 | 530015886 | Screw Price: $1.99 |
| 3 | 530057983 | Hsg.-Throttle-right Price: $7.99 |
| 4 | 530016326 | Screw-Cable Ret. Price: $1.99 |
| 5 | 530057984 | Hsg.-Throttle-left Price: $6.99 |
| 6 | 530058843 | Assy-Wire Price: $5.99 |
| 7 | 530069572 | Kit-Switch Price: $4.99 |
| 8 | 545017701 | TRIGGER THROTTLE RED This part replaces 530058759. Price: $1.99 |
| 9 | 530057986 | Clamp-Harness (upper) Price: $2.99 |
| 10 | 530058563 | Clamp-Bracket Price: $2.99 |
| 11 | 530015886 | Screw Price: $1.99 |
| 13 | 530057987 | Clamp-Harness (lower) Price: $3.99 |
| 16 | 575260201 | KIT UPPER SHAFT BLACK This part replaces 530071791. Price: $27.99 |
| 17 | 530016344 | Screw Price: $1.99 |
| 18 | 530057554 | Bracket-Shield Price: $2.99 |
| 19 | 530096100 | Gearbox Price: $53.99 |
| 20 | 530016312 | Screw Price: $1.99 |
| 21 | 545173003 | FLEXSHAFT SPLIT BOOM This part replaces 530096218. Price: $6.99 |
| 22 | 530071790 | Assy-Lower Shaft Price: $17.99 |
| 23 | 530016014 | Screw Price: $1.99 |
| 24 | 530016224 | Screw Price: $1.99 |
| 25 | 530094417 | Shoulder Strap This part replaces 530094408. Price: Call Us |
| 26 | 530052285 | Limiter-Line Price: $1.99 |
| 27 | 530015814 | Screw Price: $1.49 |
| 28 | 530015820 | Bolt Price: $1.99 |
| 29 | 530401992 | Wingnut This part replaces 530016152. Price: $2.99 |
| 30 | 530071765 | Kit-Shield Assy. Price: $5.96 |
| 31 | 952711581 | Accy-Cutting Head Price: Call Us |
| 32 | 530095772 | Assy-Hub/Arbor Price: Call Us |
| 33 | 530053241 | Spring-Return Price: $1.99 |
| 34 | 530401957 | Retainer-Spool Price: $1.99 |
| 35 | 952711580 | Accy-Wound Spool Price: Call Us |
| 36 | 530071383 | Kit-Metal Shield Price: $9.99 |
| 37 | 530095815 | Dust cup Price: $1.99 |
| 38 | 952711584 | Accy.-Weed Blade Price: Call Us |
| 39 | 530095816 | Washer Price: $1.99 |
| 40 | 530016240 | Washer-Belleville Price: $1.99 |
| 41 | 530015793 | Nut-Flange Price: $1.99 |
