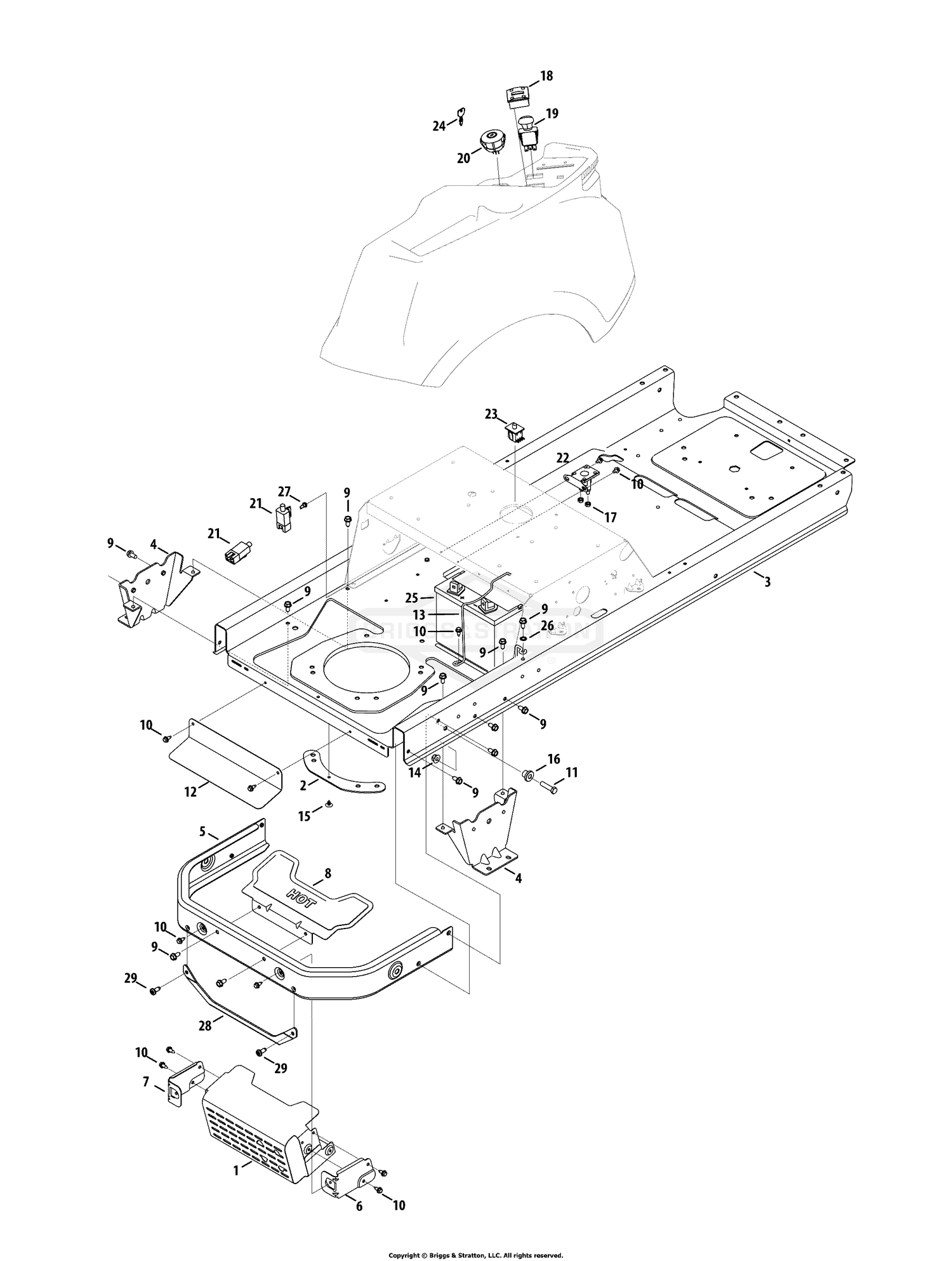

| Ref | Part Number | Description |
|---|
| 1 |
771169 |
ASSEMBLY, Muffler Shield Price: $93.99 |
| 2 |
771170 |
PLATE, Retainer Price: $28.21 |
| 3 |
771171 |
ASSEMBLY, Frame Price: Call Us |
| 4 |
771172 |
BRACKET, Transmission Mounting Price: $51.38 |
| 5 |
771173 |
BUMPER, Bumper Price: $86.99 |
| 6 |
771174 |
BRACKET, Muffler Mounting Shield, RH Price: $13.65 |
| 7 |
771175 |
BRACKET, Muffler Mounting Shield, LH Price: $13.65 |
| 8 |
771176 |
SHIELD, Muffler Price: $55.02 |
| 9 |
771177 |
SCREW, 5/16-18 X .750, Hex Washer Price: $4.49 |
| 10 |
771178 |
SCREW, 1/4-20 X .625, Hex Washer Price: $4.09 |
| 11 |
771179 |
SCREW, 3/8-16 X 1.25, Hex Price: $6.55 |
| 12 |
771180 |
SHIELD, Lower Heat Price: $31.42 |
| 13 |
771147 |
ROD, Battery Price: $22.99 |
| 14 |
703333 |
NUT, 3/8-16 Price: $4.26 |
| 15 |
771144 |
CLIP, .250 DIA. X .500 LG Price: $6.16 |
| 16 |
778881 |
SPACER, .38 X 1.0 X .70, Shoulder Price: $7.25 |
| 17 |
5025391FS |
NUT This part replaces 703463. Price: $3.62 |
| 18 |
771182 |
HOUR METER/SERVICE MINDER Price: $62.78 |
| 19 |
771183 |
SWITCH, Electric PTO Price: $65.26 |
| 20 |
771184 |
SWITCH, Key (Ignition) Price: $99.99 |
| 21 |
771185 |
SWITCH, Interlock Price: $24.78 |
| 22 |
771186 |
SOLENOID Price: $55.99 |
| 23 |
771187 |
SWITCH, Seat Price: $41.99 |
| 24 |
771188 |
ASSEMBLY, Key Price: $9.19 |
| 25 |
771190 |
BATTERY Price: $124.33 |
| 26 |
771189 |
WASHER, 5/16, EXT., Lock Price: $6.64 |
| 27 |
771191 |
SCREW, #10-32 X .500, Shoulder Price: $9.46 |
| 28 |
771192 |
BRACKET, Rear Muffler Shield Price: $47.74 |
| 29 |
771193 |
SCREW, 5/16-18, 0.750, Self-Tapping Price: $10.46 |
