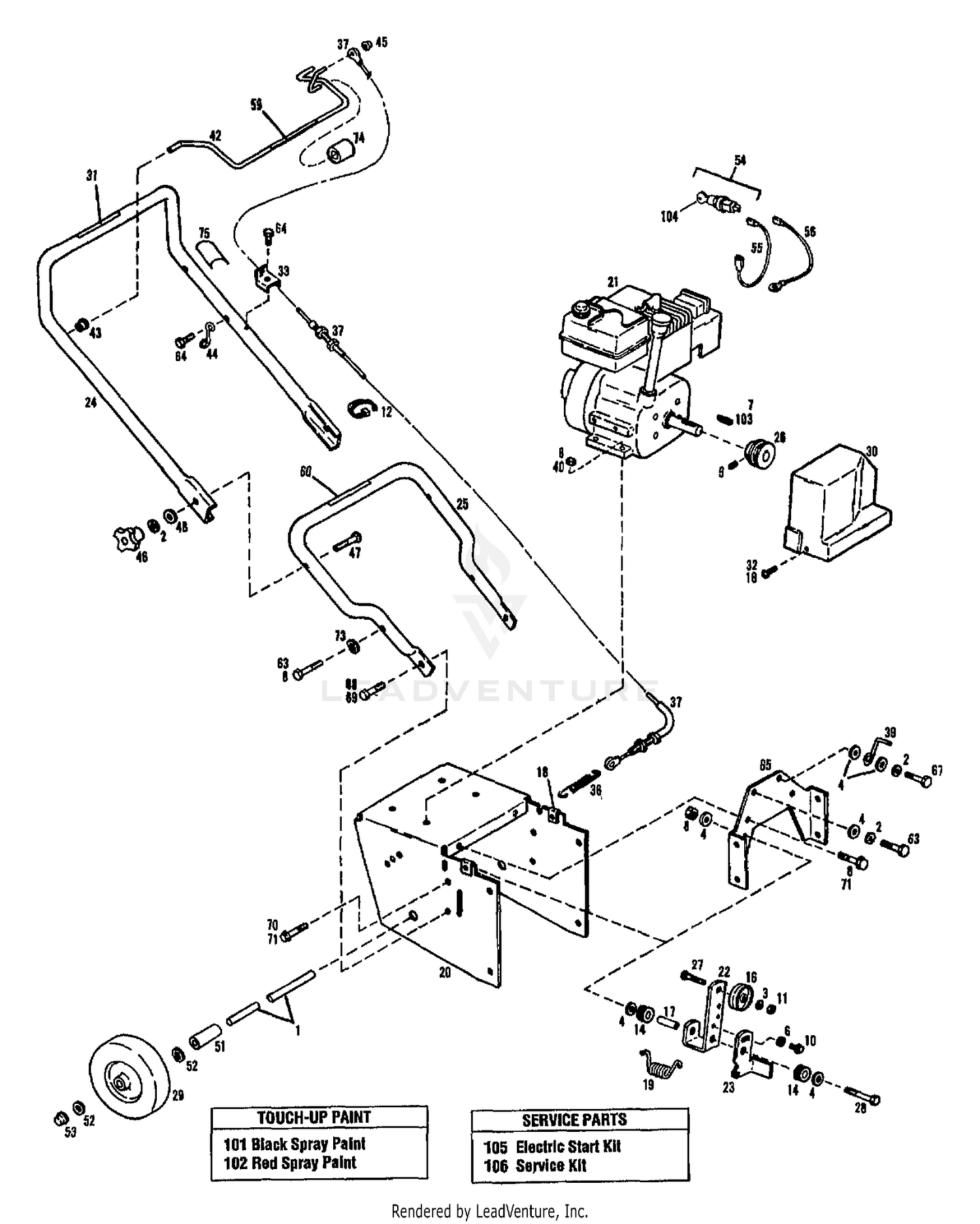

| Ref | Part Number | Description |
|---|
| 1 |
1769671 |
AXLE-WHEEL Not Available Price: |
| 2 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 3 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 4 |
736-0262 |
FLAT WASHER .385X.870X.090 This part replaces 1100255. Price: $3.66 |
| 6 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 1107381. Price: $5.94 |
| 7 |
1108852 |
KEY-.187 SQ x .75 Not Available Price: |
| 8 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 9 |
1185596 |
SCR-SET HX Not Available Price: |
| 10 |
1724492 |
SCREW Not Available Price: |
| 11 |
712-3017 |
HEX NUT 3/8-16 GR5 This part replaces 1186231. Price: $3.90 |
| 14 |
1715538 |
BUSHING-NYLINER .5X.5 Not Available Price: |
| 16 |
1710566 |
IDLER-FLAT Price: $15.00 |
| 17 |
1748659 |
SPACER-.5X Not Available Price: |
| 18 |
712-0147 |
U-Type Speed Nut This part replaces 1185986. Price: $6.01 |
| 19 |
1740102 |
TORSION SPRING Not Available Price: |
| 20 |
1756070010 |
FRAME Price: Call Us |
| 22 |
1748443 |
IDLER ARM Not Available Price: |
| 23 |
1752228 |
ARM-BRAKE Not Available Price: |
| 24 |
1754136010 |
HANDLEBAR-UPPER Not Available Price: |
| 25 |
1752085010 |
HANDLEBAR-LOWER Not Available Price: |
| 26 |
1752211 |
SHEAVE-ENG Not Available Price: |
| 27 |
1740130 |
SCR CAR 3/ Not Available Price: |
| 28 |
710-0176 |
Hex Bolt 5/16-18 x 2.75 This part replaces 1111609. Price: $3.89 |
| 29 |
753-08091 |
WHEEL KIT IDLE 8 x 2 This part replaces 1765740. Price: $40.81 |
| 30 |
1754175 |
BELT COVER Not Available Price: |
| 31 |
1752305 |
DECAL Not Available Price: |
| 32 |
710-0425 |
Screw, Machine, #10-24, 0.625 This part replaces 1115815. Price: $4.21 |
| 33 |
1749977001 |
CABLE BRACKET Not Available Price: |
| 36 |
1756117 |
EXT SPRING Not Available Price: |
| 37 |
1756077 |
AUGER DR C Not Available Price: |
| 39 |
1752229 |
BELT GUIDE Not Available Price: |
| 40 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 1100799. Price: $3.75 |
| 42 |
1752230001 |
CONTROL LEVER Not Available Price: |
| 43 |
1747499 |
BEARING-FL Not Available Price: |
| 44 |
1769674 |
SUPPORT-CHUTE CRAN Not Available Price: |
| 45 |
726-0135 |
PUSH NUT This part replaces 1727342. Price: $5.94 |
| 46 |
1763767 |
KNOB Not Available Price: |
| 47 |
710-1174 |
SCREW 5/16-18 x 2.0 This part replaces 1731025. Price: $6.28 |
| 48 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 51 |
1752092 |
SPACER-.65 Not Available Price: |
| 52 |
GW-20546 |
WASHER Not Available This part replaces 1890234. Price: |
| 53 |
726-0299 |
PUSH CAP This part replaces 1711947. Price: $7.03 |
| 54 |
925-0873 |
KEY SWITCH Not Available This part replaces 1727321. Price: |
| 55 |
1752302 |
LEAD Not Available Price: |
| 56 |
1747117 |
LEAD Not Available Price: |
| 59 |
1752366 |
DECAL Not Available Price: |
| 60 |
1752367 |
DECAL-SC Price: Call Us |
| 63 |
1100808 |
SCREW-HH Not Available Price: |
| 64 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 Not Available Price: |
| 65 |
1754137001 |
SUPPORT-ENGINE Price: Call Us |
| 67 |
1100005 |
HEX SCREW Not Available Price: |
| 68 |
1186345 |
SCREW Not Available Price: |
| 69 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 71 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 73 |
736-0262 |
FLAT WASHER .385X.870X.090 This part replaces 1100255. Price: $3.66 |
| 74 |
1751526 |
GRIP-HANDLE Not Available Price: |
| 75 |
1763152 |
DECAL-CHUTE CONTRO Not Available Price: |
| 104 |
1718266 |
IGNITION KEY (KEY ONLY) Not Available Price: |
