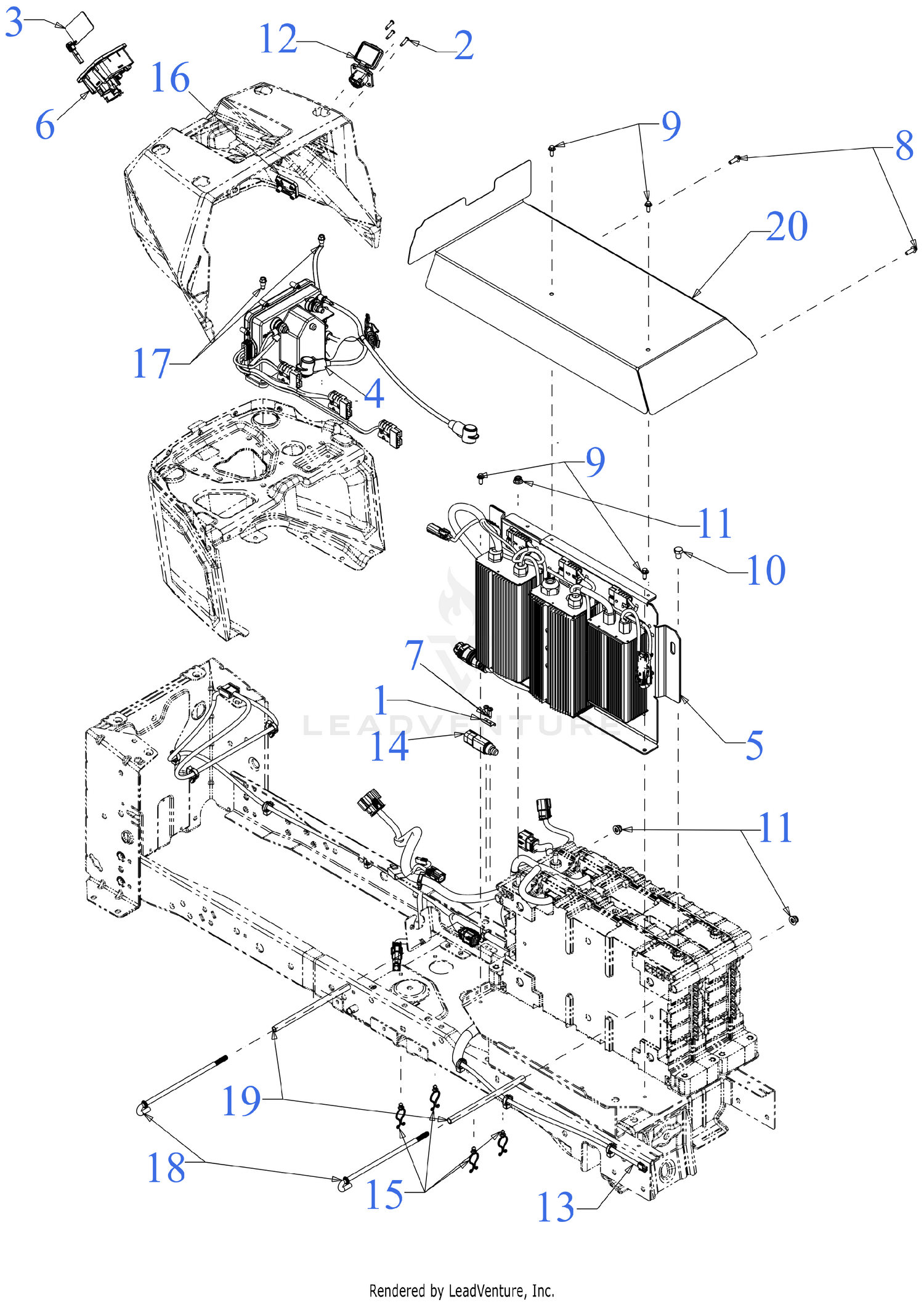

| Ref | Part Number | Description |
|---|
| 1 |
17962 |
PLATE-SWITCH Price: $4.36 |
| 2 |
791-181345 |
SCREW, #8-16X.750 PH Price: $3.75 |
| 3 |
625-06990B |
MAGNETIC KEY This part replaces 625-06990A. Price: $10.64 |
| 4 |
625P08310B |
PDM HOUSING ASSEMBLY Price: $335.00 |
| 5 |
625P08838 |
MOTOR CONTROLLER PANEL Price: $1,995.82 |
| 6 |
625P08881 |
VCM SWITCH (UL G2) Price: $395.93 |
| 7 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 8 |
710-05108 |
SCREW 1/4 x .750 Price: $3.19 |
| 9 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 10 |
710-08794 |
SCREW 3/8-24 x .50" GR5 STD Price: $2.14 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
725P17073C |
CHARGER PORT HARNESS (8-PIN) This part replaces 725P17073A. Price: $167.49 |
| 13 |
725P17131A |
HARNESS (VCM/PDM/GEN2) Price: $203.39 |
| 14 |
929-05136 |
SEALED PLUNGER SWITCH Price: $37.95 |
| 15 |
729-07541 |
TWIST LOCK CLIP Price: $2.90 |
| 16 |
731-26236 |
CHARGING PORT ADAPTER Price: $8.36 |
| 17 |
738-04425 |
SHOULDER SCREW Price: $3.60 |
| 18 |
747-08510A |
BATTERY ROD Price: $15.98 |
| 19 |
750-08150 |
SPACER- .322" x .438" x 7.71" Price: $6.33 |
