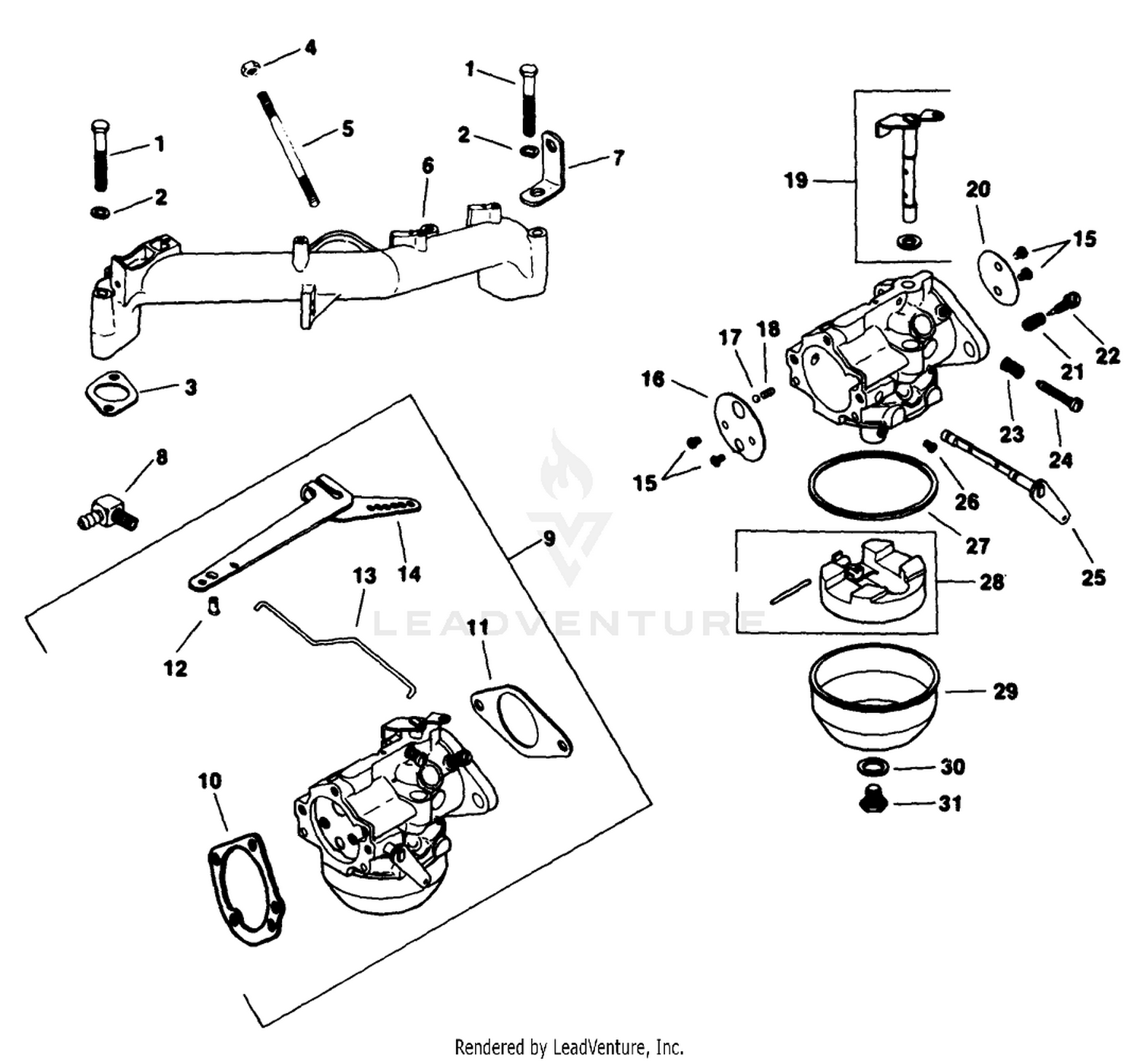

Carburetor-Group 5 Engine Kohler Model No. Kt17qs Type No. 24324 (continued)
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | X-6-8 | Screw-H.C. Price: Call Us |
| 2 | X-21-1 | Washer Price: Call Us |
| 3 | 52_041_09 | Gasket-Intake Price: Call Us |
| 4 | X-77-2 | Nut Price: Call Us |
| 5 | X-352-37 | Stud Price: Call Us |
| 6 | 52_164_10 | Manifold-Intake Price: Call Us |
| 7 | 52_445_02 | Strap-Lifting Price: Call Us |
| 8 | 25_155_02 | Connector-90? Price: Call Us |
| 9 | 5285303 | Kit-Carburetor w/Linkage (Incl. Ref. #10-31) Price: Call Us |
| 10 | 277069 | Gasket Price: Call Us |
| 11 | 271030 | Gasket Price: Call Us |
| 12 | 25_158_07 | Bushing-Linkage (Yellow) Price: Call Us |
| 13 | 5207908 | Linkage-Governor Price: Call Us |
| 14 | 5218606 | Arm-Governor Price: Call Us |
| 15 | 25_086_27 | Screw-Throttle Plate Price: Call Us |
| 16 | 25_146_03 | Plate-Choke Price: Call Us |
| 17 | 25_194_01 | Ball-Choke Price: Call Us |
| 18 | 25_089_03 | Spring-Choke Price: Call Us |
| 19 | 52_144_16 | Shaft Assembly Price: Call Us |
| 20 | 25_146_02 | Plate-Throttle Price: Call Us |
| 21 | 25_089_02 | Spring Price: Call Us |
| 22 | 25_368_01 | Valve-Needle Price: Call Us |
| 23 | 25_089_04 | Spring Price: Call Us |
| 24 | 25_086_26 | Screw Price: Call Us |
| 25 | 52_090_12 | Lever-Choke Price: Call Us |
| 25_757_08 | Kit-Carburetor | Repair Price: Call Us 25_757_08 |
| 26 | 5233703 | Jet-Main Price: Call Us |
| 27 | 25_041_04 | Bowl-Gasket Price: Call Us |
| 28 | 25_757_09 | Kit-Float Price: Call Us |
| 29 | 25_104_01 | Bowl Price: Call Us |
| 30 | 25_041_03 | Gasket-Bowl Price: Call Us |
| 31 | 25_100_05 | Screw-Bowl Price: Call Us |
