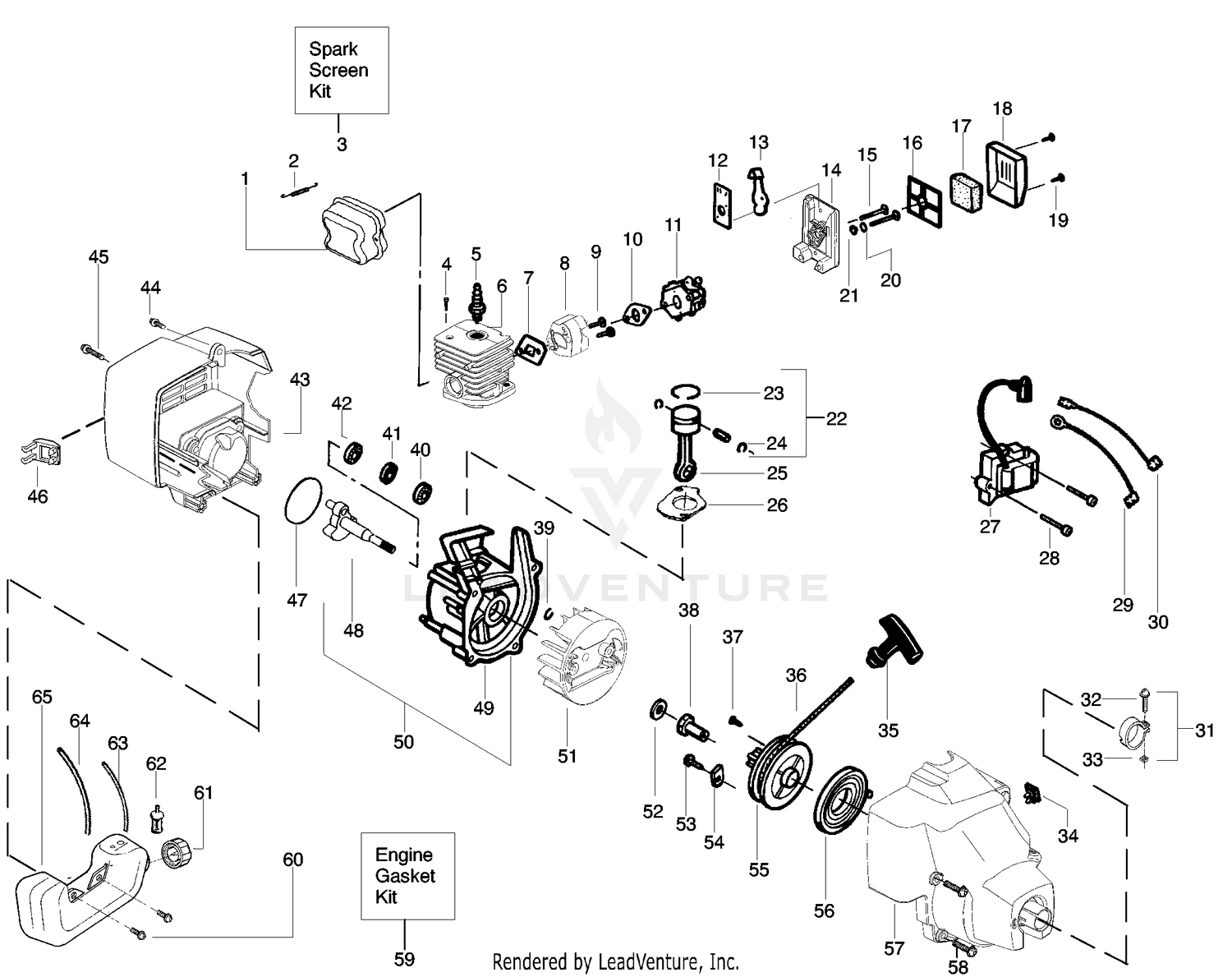

| Ref | Part Number | Description |
|---|
| 1 |
130-2680-0P |
CHAMBER-OUTER This part replaces 130-2680-01. Price: $250.27 |
| 1B |
631296 |
SHAFT & LEV Price: Call Us |
| 2 |
130-2681-0P |
CHAMBER-INNER This part replaces 130-2681-01. Price: $357.29 |
| 2 |
530042088 |
Spring-Muffler Price: $1.99 |
| 2 |
631066 |
RET SPRING Price: Call Us |
| 3 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 3 |
530071391 |
Kit-Spark Arrestor Price: $7.99 |
| 3 |
631036 |
SHUTTER Price: $1.20 |
| 4 |
3296-45 |
NUT-HEX Price: $3.79 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 5 |
29-4820 |
ROLLER Price: $14.88 |
| 5 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: $3.99 |
| 6 |
325-17 |
SCREW-HH Price: $2.90 |
| 6 |
530012416 |
Cylinder This part replaces 530071359. Price: $17.99 |
| 6 |
630766 |
SPRING Price: $1.25 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
530071363 |
Gasket-Cylind./Carb. Price: $5.99 |
| 7B |
630971 |
SHAFT & LEV Price: Call Us |
| 8 |
107-3154 |
NUT-PUSH Price: $0.99 |
| 8 |
530057634 |
Adapter-Carb. Price: $8.99 |
| 9 |
100-5668-03 |
PLATE-COVER, RH SIDE Price: $77.06 |
| 9 |
530016014 |
Screw Price: $1.99 |
| 9 |
630736 |
SHUTTER Price: $2.19 |
| 10 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 10 |
530071363 |
Gasket-Carb. Price: $5.99 |
| 10 |
631562 |
ADJ SCREW Price: $3.74 |
| 11 |
1-804254 |
NUT-LOCK, HH Price: $1.29 |
| 11 |
530071635 |
Kit-Carb.(WT-631) Price: $54.99 |
| 11 |
630738 |
SPRING Price: $1.25 |
| 11A |
630738 |
SPRING Price: $1.25 |
| 12 |
530038747 |
Choke Plate Mounting Price: $1.99 |
| 12 |
630739 |
WASHER Price: $1.25 |
| 12 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 12A |
630739 |
WASHER Price: $1.25 |
| 13 |
100-5665-03 |
PLATE-COVER, RH Price: $73.07 |
| 13 |
530038686 |
Shutter-Choke Price: $1.99 |
| 13 |
630740 |
O RING Price: $1.49 |
| 13A |
630740 |
O RING Price: $1.49 |
| 14 |
100-5666 |
COVER-MOTOR, RH DECK Price: $139.21 |
| 14 |
530052431 |
Air Box Price: $1.99 |
| 14 |
630737 |
ADJ SCREW Price: $3.95 |
| 15 |
530016393 |
Screw Price: $3.33 |
| 15 |
630748 |
WELCH PLUG Price: $1.17 |
| 16 |
530036569 |
Plate - Filter Support Price: $1.99 |
| 17 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 17 |
530036575 |
Foam-Air Filter Price: $1.99 |
| 17 |
632554 |
WELCH PLUG This part replaces 630746. Price: $1.17 |
| 18 |
530036568 |
Cover-Air Filter Price: $1.99 |
| 18 |
631049 |
SPRING Price: $1.20 |
| 19 |
530016349 |
Screw Price: $1.99 |
| 19 |
630742 |
GASKET Price: $1.25 |
| 20 |
530015852 |
Spacer-Choke Price: $1.99 |
| 20 |
630932A |
INLET NEEDLE Price: $4.39 |
| 21 |
530015254 |
Washer Price: $1.99 |
| 21 |
630750A |
GASKET This part replaces 630750. Price: $3.00 |
| 22 |
630978 |
DIAPHRAGM Price: $4.49 |
| 23 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 23 |
630751 |
COVER Price: $8.60 |
| 24 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 24 |
650545 |
SCREW Price: $1.20 |
| 25 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 26 |
530071363 |
Gasket-Cylinder Price: $5.99 |
| 26 |
631289 |
FUEL FITTING Price: Call Us |
| 27 |
530055160 |
Ignition Module Price: $34.99 |
| 28 |
530016357 |
Screw Price: $1.99 |
| 29 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 29 |
630955 |
RETAINER--NLA Price: Call Us |
| 30 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 30 |
650545 |
SCREW Price: $1.20 |
| 32 |
530016381 |
Screw-Nose Cone Price: $2.99 |
| 33 |
530016382 |
Nut-Nose Cone Price: $2.99 |
| 33 |
630735 |
SPRING Price: $1.25 |
| 34 |
530071356 |
Kit-Switch Price: $4.99 |
| 35 |
530027569 |
Handle-Starter Price: $1.99 |
| 36 |
530069232 |
Kit - Rope Price: $3.99 |
| 37 |
530016080 |
Screw Price: $1.99 |
| 38 |
530038604 |
Coupling-Drive Price: $1.99 |
| 39 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 40 |
530055728 |
Outer Bearing Price: $6.99 |
| 41 |
530071615 |
Kit-C'case Seal Price: $4.99 |
| 42 |
530032125 |
Inner Bearing Price: $11.99 |
| 43 |
530056547 |
Shroud-Rear Price: $8.99 |
| 44 |
530015934 |
Screw Price: $1.99 |
| 45 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 46 |
530054536 |
Guard-Muffler Price: $1.99 |
| 47 |
530071363 |
O-Ring-C'case/Shrd Price: $5.99 |
| 48 |
530054753 |
Assy-Crankshaft Price: $27.99 |
| 51 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 52 |
530015828 |
Washer-Flat Price: $1.99 |
| 53 |
530015775 |
Screw Price: $1.99 |
| 54 |
530027523 |
Retainer-Can Price: $2.99 |
| 56 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 57 |
530071667 |
Assy.-Fan Hsg Price: $5.44 |
| 58 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 60 |
530016379 |
Screw Price: $2.99 |
| 61 |
530014347 |
Assy-Fuel Cap Price: $4.99 |
| 62 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
| 63 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 64 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
