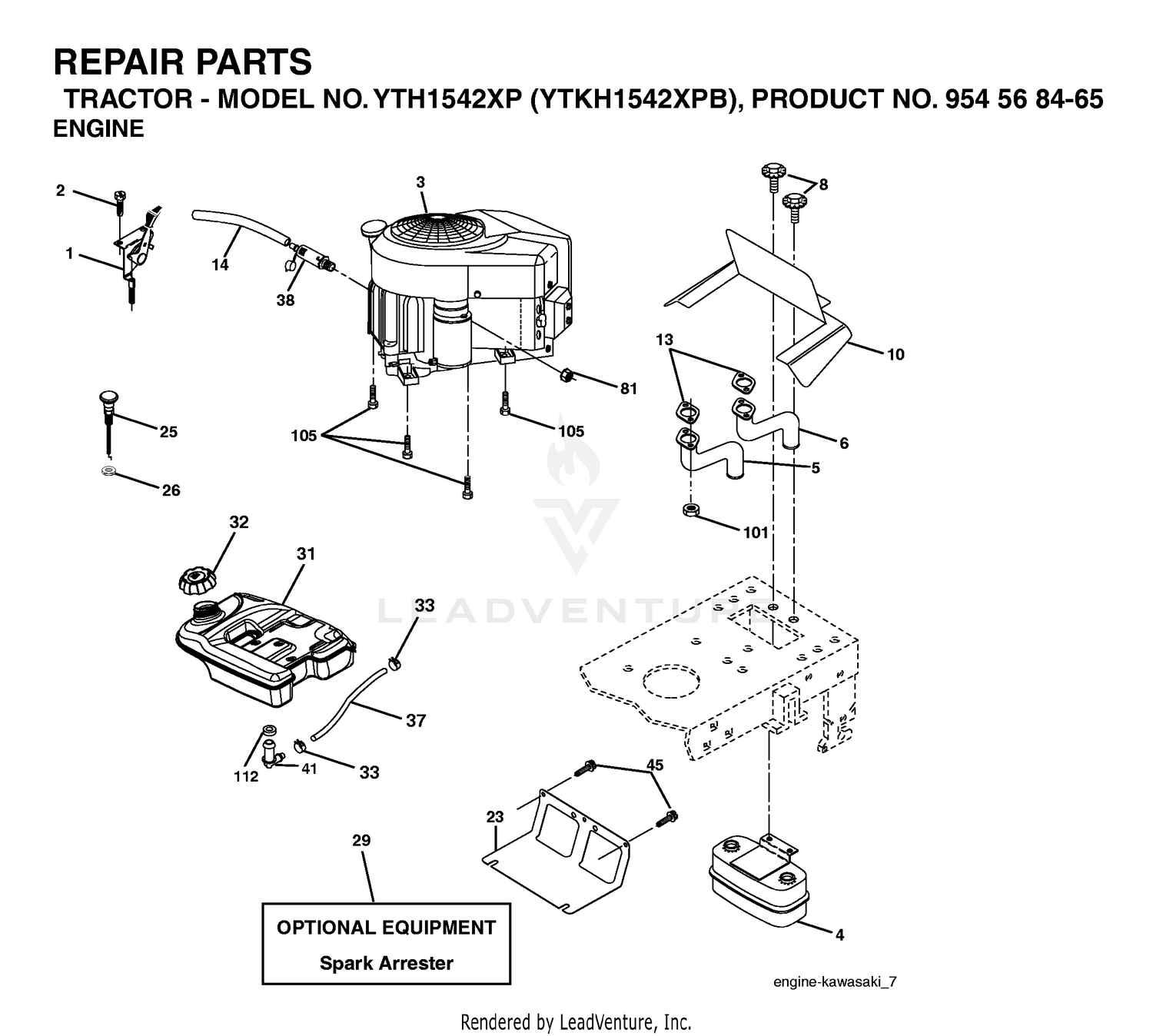

| Ref | Part Number | Description |
|---|
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 1 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 2 |
324-5 |
SCREW-HH Price: $0.54 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 4 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 5 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 6 |
120-8935-03 |
BRACKET-FAN Price: $221.61 |
| 6 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 7 |
140-6482 |
HUB-FAN This part replaces 117-2364. Price: $160.95 |
| 8 |
114-3825 |
FAN Price: $353.82 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
340-70 |
NUT-LOCK Price: $2.10 |
| 10 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
121-1518 |
SHIM-SUPPORT Price: $5.04 |
| 12 |
121-1554 |
TUBE-HYD Price: $75.61 |
| 13 |
121-1555 |
TUBE ASM Price: $62.39 |
| 14 |
121-1553 |
TUBE-HYD Price: $79.36 |
| 15 |
115-8486 |
SCREW-HH Price: $0.68 |
| 16 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 17 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 18 |
104-7201 |
NUT-HF Price: $0.69 |
| 19 |
117-4769 |
HYD MOTOR ASM Price: $932.88 |
| 20 |
340-129 |
FITTING-ELBOW, 90 DEG Price: $99.81 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
