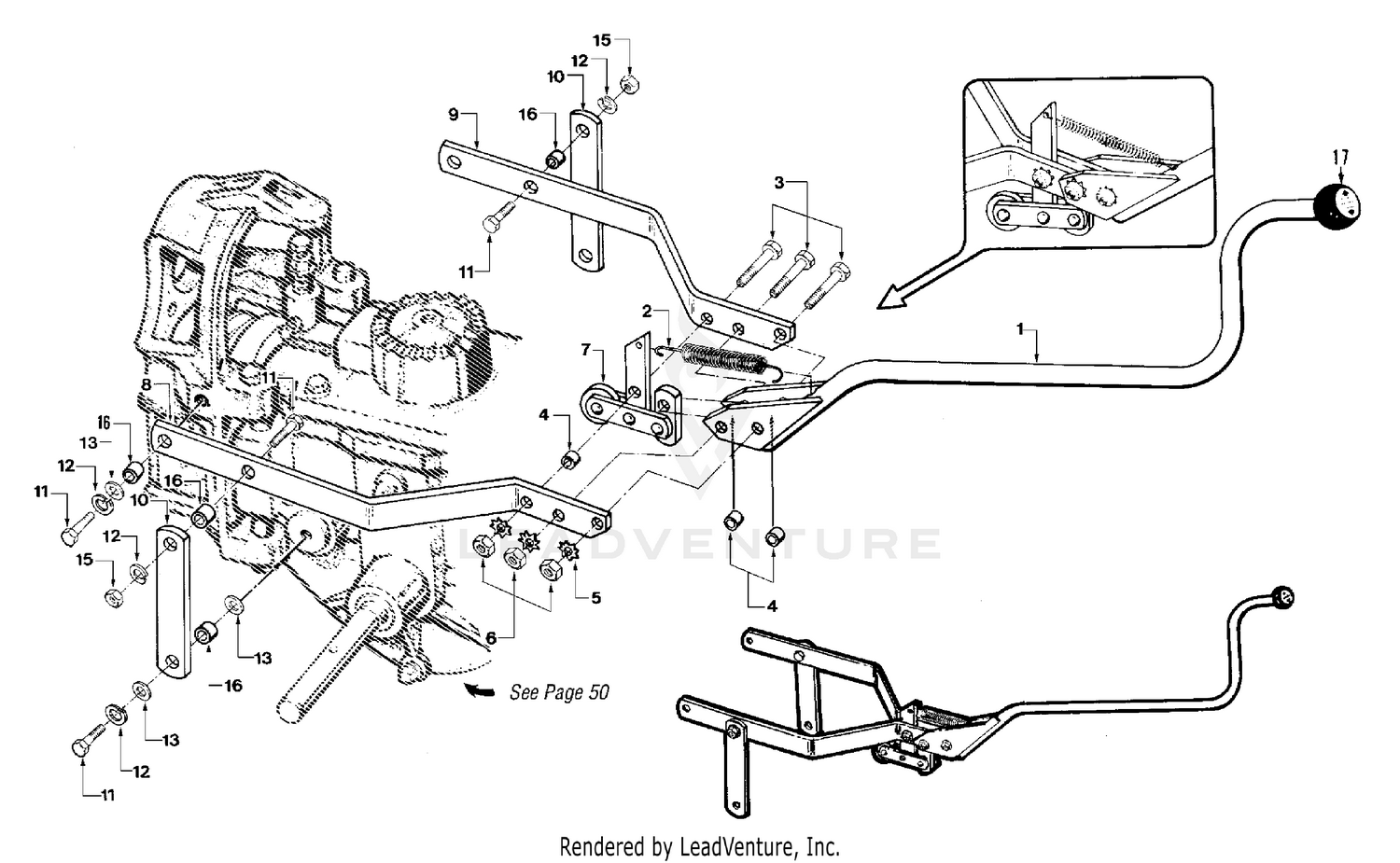

Wheel/Tines/PTO Drive/Lever & Yoke Assembly

Wheel/Tines/PTO Drive/Lever & Yoke Assembly

Parts (14)

RefPart NumberDescription
2 1908156 Spring-clutch pawl Price: $14.44
3 710-0805A SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75
4 GW-2447 Bushing-3/8" Price: $5.77
5 736-0607 External L-Washer 5/16 This part replaces 1177548. Price: $3.66
6 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
7 686-04006 Roller Assembly This part replaces 1916265010. Price: $81.86
8 1900468010 YOKE-LH RED This part replaces GW-2165-1. Price: $41.83
9 1900469010 YOKE-RH RED This part replaces GW-2165-2. Price: $37.03
10 1900860001 Yoke Pivot Link This part replaces GW-2164. Price: $14.83
11 710-0514 Bolt-hex hd., 3/8-16 x 1" Price: $3.78
12 736-0169 Lockwasher-spring lock, 3/8" Price: $3.33
13 736-3050 Washer-flat, 3/8", S.A.E Price: $3.90
15 712-0798 Nut-hex, 3/8"-16 Price: $3.86
16 GW-1113-1099 BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces 1113-1. Price: $4.53
