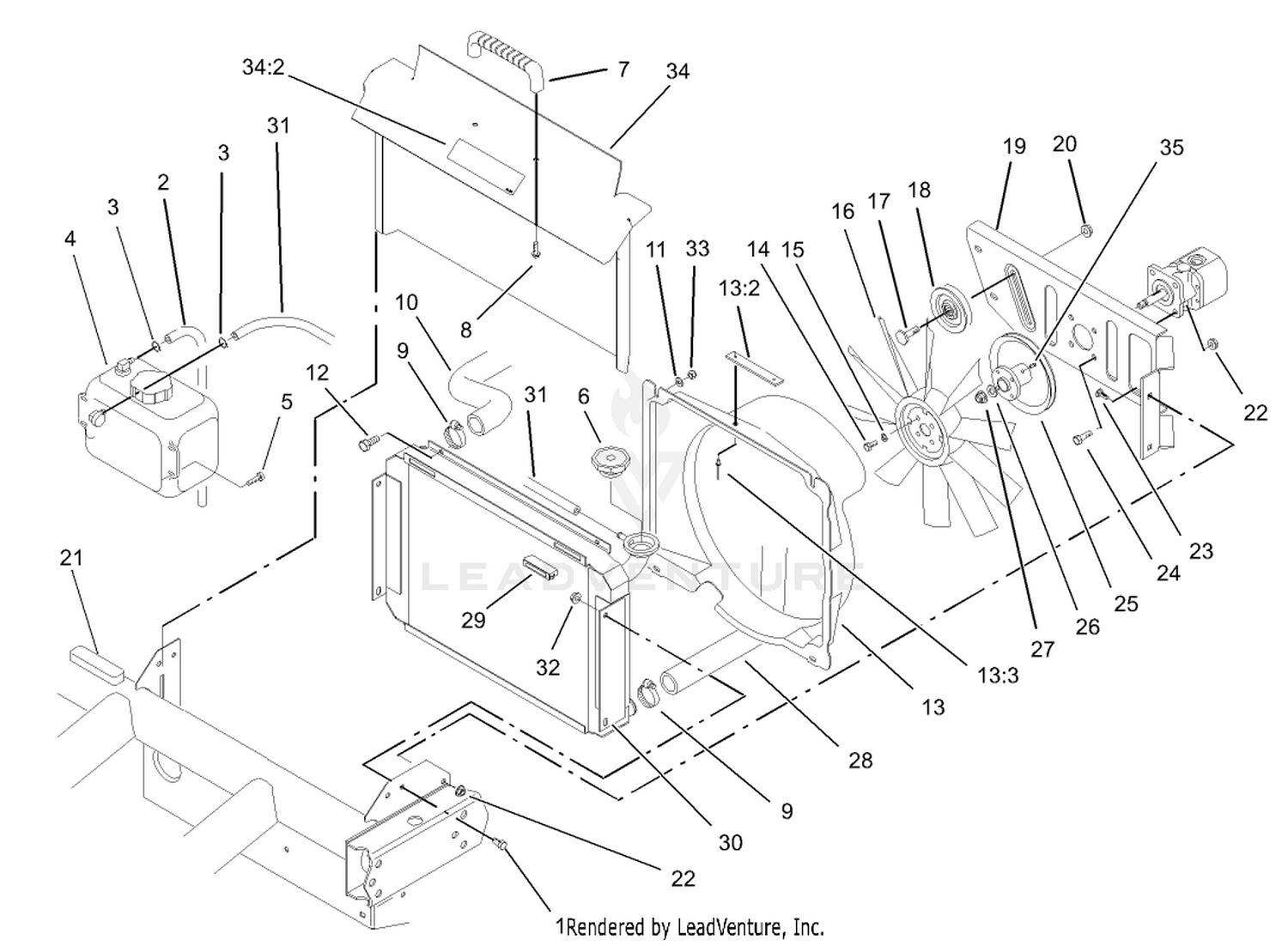

| Ref | Part Number | Description |
|---|
| 1 |
322-2 |
SCREW-HH Price: $0.69 |
| 2 |
106-1126 |
HOSE-FUEL This part replaces 71-3381. Price: $10.06 |
| 3 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 4 |
120-5573 |
COOLANT RESERVOIR ASM This part replaces 87-3710. Price: $134.92 |
| 5 |
3250-20 |
SCREW-PPH Price: $5.39 |
| 6 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 7 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 8 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 9 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 10 |
105-1724 |
HOSE-RADIATOR, UPPER Price: $131.82 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
321-4 |
SCREW-HH Price: $0.99 |
| 13 |
105-7956 |
FAN SHROUD ASM Price: $243.83 |
| 14 |
321-3 |
SCREW-HH Price: $0.28 |
| 15 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 16 |
84-1880 |
FAN Price: $250.88 |
| 17 |
32141-86 |
SCREW-LEVELER Price: $6.58 |
| 18 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 19 |
93-7088-03 |
PLATE-MOUNT, PUMP Price: $131.61 |
| 20 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 21 |
87-9810 |
FOAM-TANK, OVERFLOW Price: $2.65 |
| 22 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 23 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 24 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 25 |
94-5237 |
FAN HUB ASM Price: $147.01 |
| 26 |
3256-45 |
WASHER-FLAT Price: $0.28 |
| 27 |
3296-5 |
NUT-HEX Price: $3.09 |
| 28 |
105-1725 |
HOSE-RADIATOR, LOWER Price: $215.71 |
| 29 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 30 |
115-2303 |
RADIATOR This part replaces 93-7051. Price: $1,163.72 |
| 31 |
110-6186 |
HOSE-FUEL This part replaces 71-3383. Price: $15.70 |
| 32 |
32128-20 |
NUT-HF Price: $0.99 |
| 33 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 34 |
105-4223 |
RADIATOR COVER ASM Price: $348.33 |
