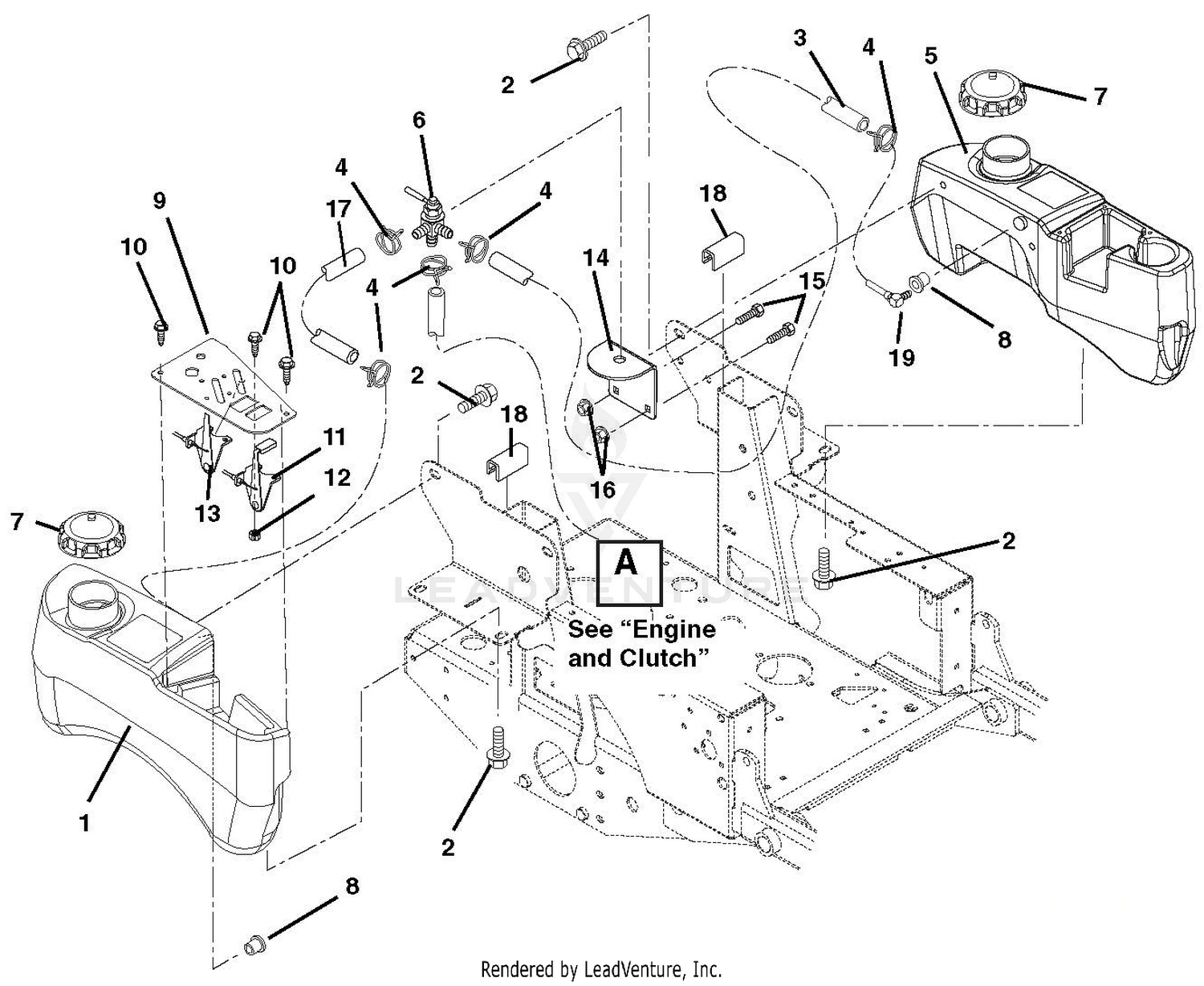

| Ref | Part Number | Description |
|---|
| 1 |
09298200 |
TANK, FUEL RH W/O HOSE Price: $216.75 |
| 2 |
07000018 |
BOLT, SEMS .31-18 X .62 Price: $3.45 |
| 3 |
00365900 |
HOSE, 5.75"-1/4" ID GAS LINE Price: $5.45 |
| 4 |
06939100 |
CLAMP-HOSE WIRE .490/.510X.116 Price: $3.45 |
| 6 |
09258200 |
VALVE, FUEL Price: $42.95 |
| 7 |
03859100 |
CAP, FUEL This part replaces 00273700. Price: $25.45 |
| 9 |
00257351 |
PANEL, CONTROL Price: $21.45 |
| 10 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 11 |
06900002 |
CABLE, THROTTLE-CHOKE Price: $46.95 |
| 12 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 13 |
06949500 |
CABLE, CHOKE Price: $36.45 |
| 14 |
00361951 |
BRKT, FUEL VALVE MNTG Price: $6.45 |
| 15 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 16 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 17 |
00366000 |
HOSE, 29"-1/4"ID GAS LINE Price: $14.95 |
| 18 |
00918200 |
STRIP, COWL Price: $5.45 |
