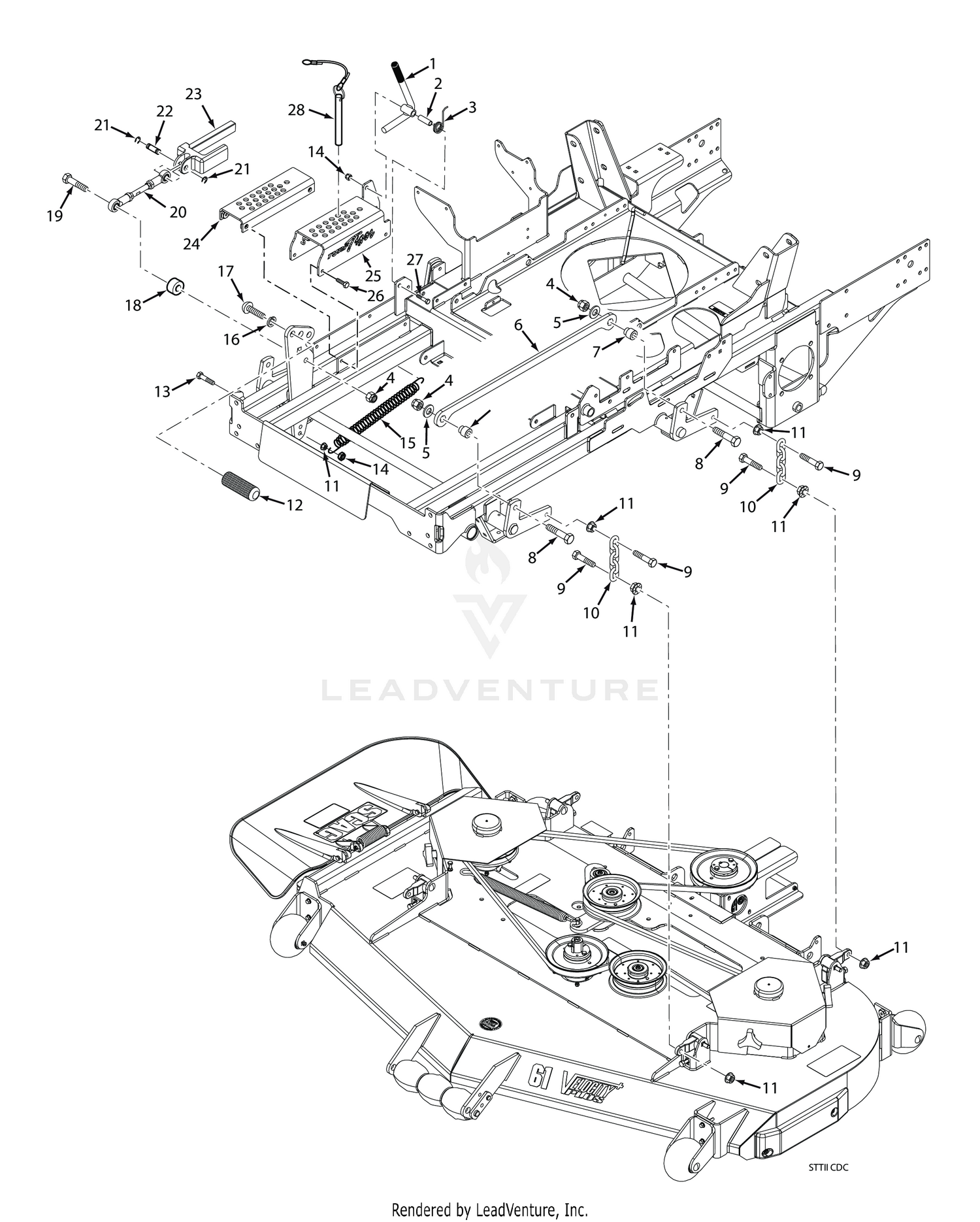

| Ref | Part Number | Description |
|---|
| 1 |
462856 |
Deck Latch Weldment w/Grip Price: Call Us |
| 2 |
43668 |
Bushing, .502 O.D. Price: Call Us |
| 3 |
484191 |
Spring, Torsion - Lever Return Price: Call Us |
| 4 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 5 |
04040-13 |
Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us |
| 6 |
427019 |
Link, Deck Lift Price: Call Us |
| 7 |
431018 |
Pivot, Deck Link Price: Call Us |
| 8 |
04001-153 |
Bolt, Hex Head 1/2-13 x 2-1/4" Price: Call Us |
| 9 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 10 |
48540 |
Footplate Price: Call Us |
| 11 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 12 |
424504 |
Foot Pedal, Height Adjustment Price: Call Us |
| 13 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 14 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 15 |
481598 |
Spring, Helper (61" & 72" Cutter Decks Only) Price: Call Us |
| 16 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 17 |
04108-04 |
Capscrew, 5/8-11 x 1-1/2" This part replaces 04105-01. Price: Call Us |
| 18 |
43508 |
Spacer, Radiator Price: Call Us |
| 19 |
04001-72 |
Hex Head Bolt, 1/2-13 x 2" Price: Call Us |
| 20 |
482534 |
Linkage Assembly, Deck Lift Price: Call Us |
| 21 |
04050-18 |
Retaining Ring, 1/2" Ext. "E" Price: Call Us |
| 22 |
43487 |
Pin, Deck Lift Price: Call Us |
| 23 |
485570 |
Slide, Height Adjustment Price: Call Us |
| 24 |
452724 |
Weldment, Lower Cutting Height Price: Call Us |
| 25 |
426977 |
Adjustment Bracket, Cutting Height Upper Price: Call Us |
| 26 |
04006-02 |
Bolt, Hex Wshr Head 5/16-18 x 1-1/4" Price: Call Us |
| 27 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 481477 |
Mounting |
Bracket, Fuel Tank Price: Call Us 481477 |
