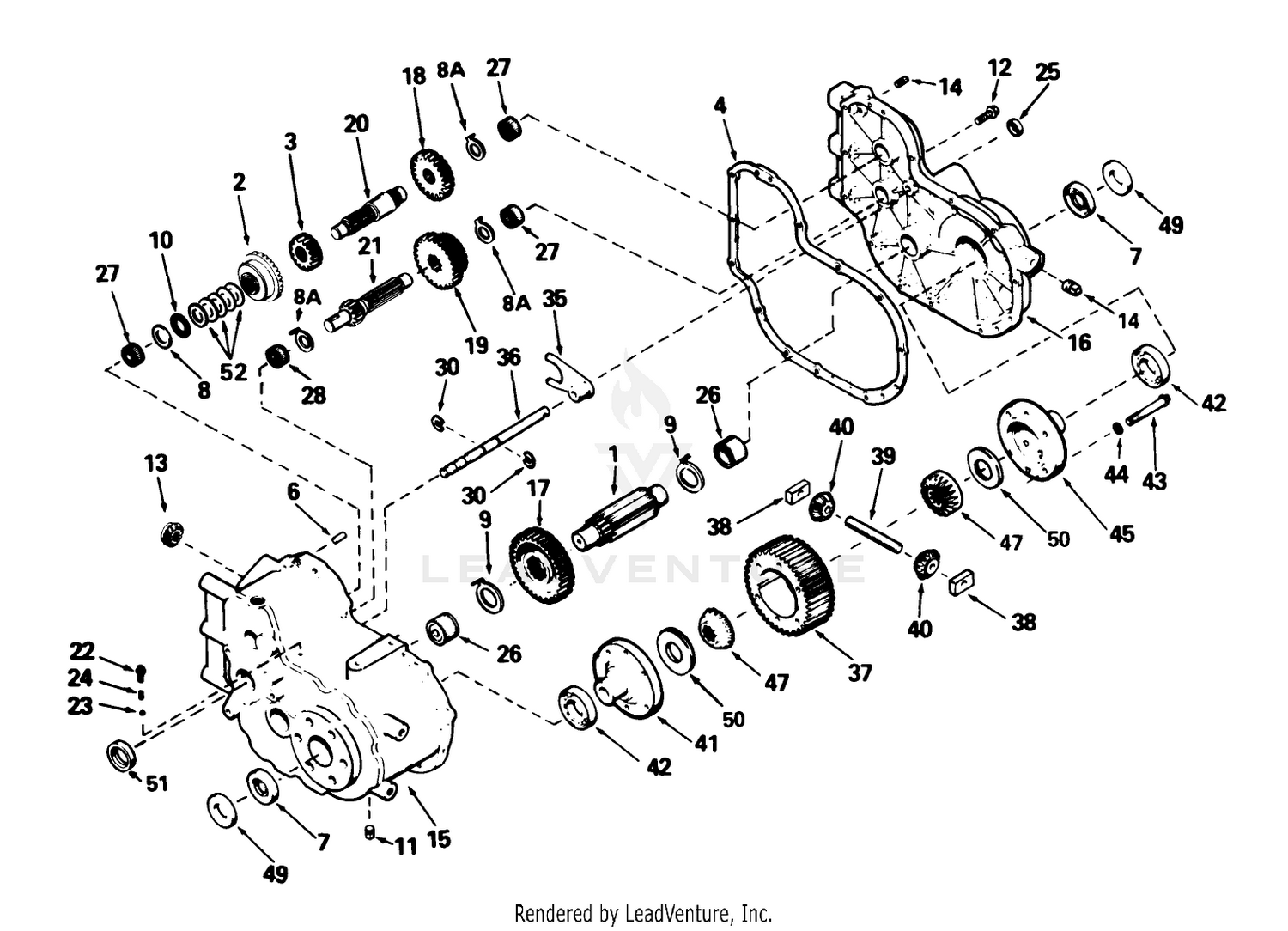

| Ref | Part Number | Description |
|---|
| 1 |
76-5610 |
PINION-OUTPUT Price: $436.03 |
| 3 |
76-5630 |
GEAR-SPUR Price: $109.36 |
| 4 |
76-5640 |
GASKET-CASE & COVER Price: $57.02 |
| 6 |
95-7236 |
PIN - DOWEL This part replaces 76-5660. Price: $3.56 |
| 7 |
76-5670 |
SEAL-OIL Price: $27.67 |
| 8 |
76-5680 |
WASHER-THRUST Price: $13.21 |
| 8A |
76-5650 |
WASHER-THRUST Price: $4.91 |
| 9 |
76-5690 |
WASHER-THRUST Price: $7.71 |
| 10 |
76-5700 |
BEARING-THRUST Price: $21.09 |
| 11 |
76-5710 |
PLUG-DRAIN, MAGNETIC Price: $9.38 |
| 12 |
76-5720 |
SCREW-HWHTF Price: $3.07 |
| 14 |
76-6040 |
PLUG-PIPE Price: $3.65 |
| 15 |
92-0639 |
TRANSAXLE CASE ASM Price: $1,083.47 |
| 16 |
76-5760 |
TRANSAXLE COVER ASM Price: $1,125.72 |
| 17 |
92-0642 |
GEAR-OUTPUT Price: $362.07 |
| 18 |
76-5780 |
GEAR-SPUR Price: $158.15 |
| 19 |
92-0644 |
GEAR-CLUSTER Price: $570.98 |
| 20 |
92-0641 |
SHAFT-COUNTER Price: $258.16 |
| 21 |
92-0645 |
SHIFTER-GEAR & SHAFT Price: $633.78 |
| 22 |
76-5820 |
SCREW-HHF Price: $4.40 |
| 23 |
76-5830 |
BALL-STEEL Price: $3.25 |
| 24 |
95-7202 |
SPRING This part replaces 76-5840. Price: $5.26 |
| 25 |
76-5850 |
DISCONTINUED Price: Call Us |
| 26 |
76-5860 |
BEARING-NEEDLE Price: $48.93 |
| 27 |
76-5870 |
BEARING-NEEDLE Price: $46.51 |
| 28 |
92-0640 |
DISCONTINUED Price: Call Us |
| 30 |
76-5890 |
RING-RETAINING Price: $6.21 |
| 35 |
76-5900 |
FORK-SHIFT Price: $38.25 |
| 36 |
92-0647 |
ROD-SHIFT, HI-LOW Price: $12.09 |
| 37 |
92-0643 |
DISCONTINUED Price: Call Us |
| 38 |
76-5930 |
DRIVE BLOCK Price: $34.87 |
| 39 |
76-5940 |
DRIVE PIN Price: $15.24 |
| 40 |
76-5950 |
DISCONTINUED Price: Call Us |
| 41 |
76-5960 |
CARRIER-DIFFERENTIAL Price: $278.78 |
| 42 |
104-0195 |
BEARING-BALL, HI-CAP This part replaces 92-0646. Price: $63.13 |
| 43 |
76-5980 |
SCREW-HHF Price: $13.37 |
| 44 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 45 |
76-5990 |
CARRIER-DIFFERENTIAL Price: $290.15 |
| 47 |
76-6000 |
DISCONTINUED Price: Call Us |
| 49 |
76-6010 |
SPACER Price: $18.94 |
| 50 |
76-6020 |
DISCONTINUED Price: Call Us |
| 51 |
76-6030 |
SEAL-OIL Price: $17.61 |
| 52 |
76-5680 |
WASHER-THRUST Price: $13.21 |
