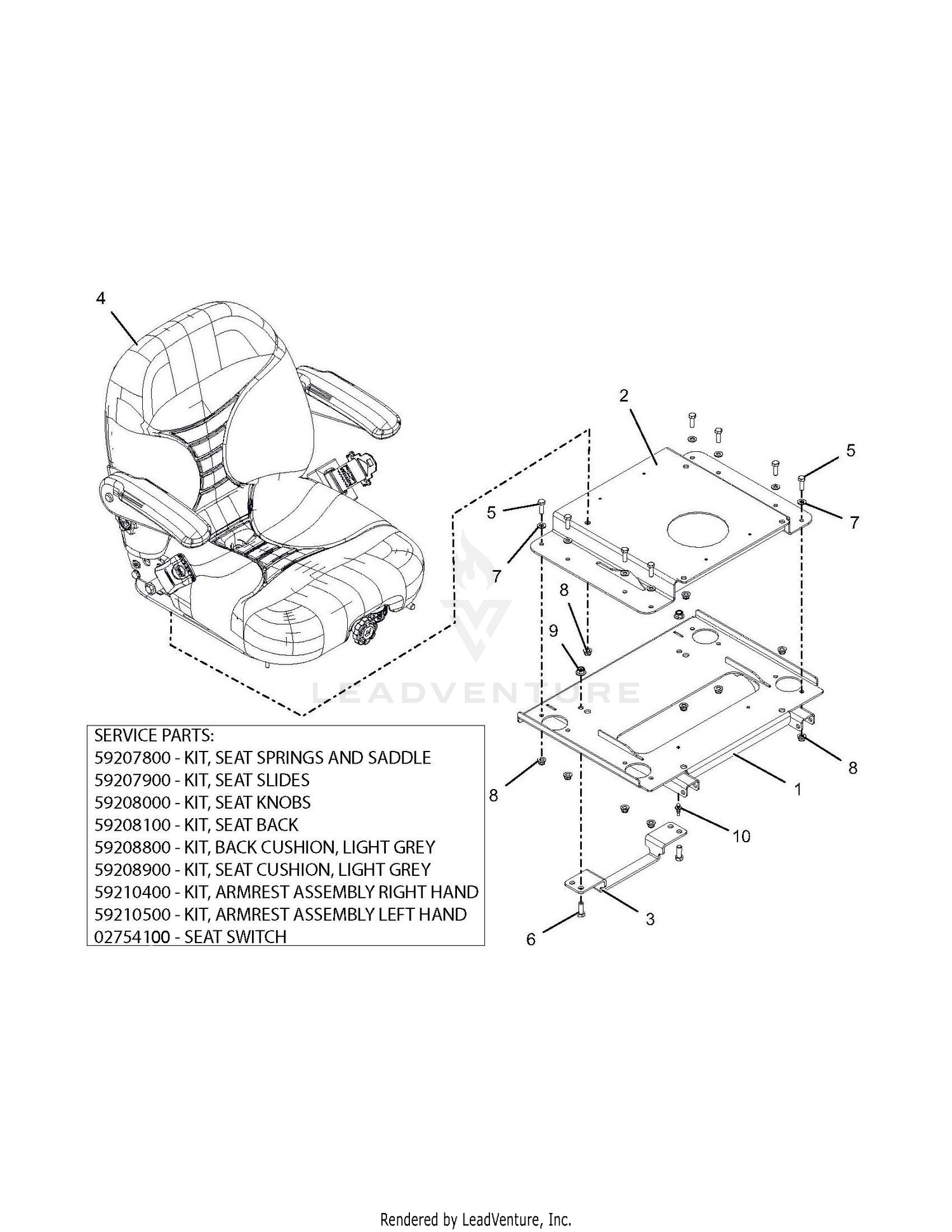

| Ref | Part Number | Description |
|---|
| 1 |
59220600 |
SEAT ISO MTG WMT W/SFTY DECAL Price: $91.95 |
| 2 |
05254653 |
WLDMT, SEAT PLATE (RED) This part replaces 04671153. Price: $173.45 |
| 3 |
03991551 |
BRACKET - SEAT LATCH Price: $14.95 |
| 4 |
02754100 |
SWITCH- SNAP MTG N.O. Price: $8.45 |
| 4 |
09680600 |
SEAT- FULL SUSPENSION This part replaces 04052900. Price: $744.95 |
| 4 |
59207800 |
KIT-SPRING AND SADDLE Price: $144.45 |
| 4 |
59207900 |
KIT-SEAT SLIDE Price: $172.45 |
| 4 |
59208000 |
KIT-SEAT KNOB Price: $26.95 |
| 4 |
59208100 |
KIT-SEAT BACK PANEL Price: $138.95 |
| 4 |
59208800 |
KIT-BACK CUSHION-LIGHT GRAY Price: $333.95 |
| 4 |
59208900 |
KIT-SEAT CUSHION-LIGHT GRAY Price: $203.95 |
| 4 |
59210400 |
KIT-RH ARMREST ASSEMBLY REPLAC Price: $109.95 |
| 4 |
59210500 |
KIT-LH ARMREST ASSEMBLY REPLAC Price: $109.95 |
| 5 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 6 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 7 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 8 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 9 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
