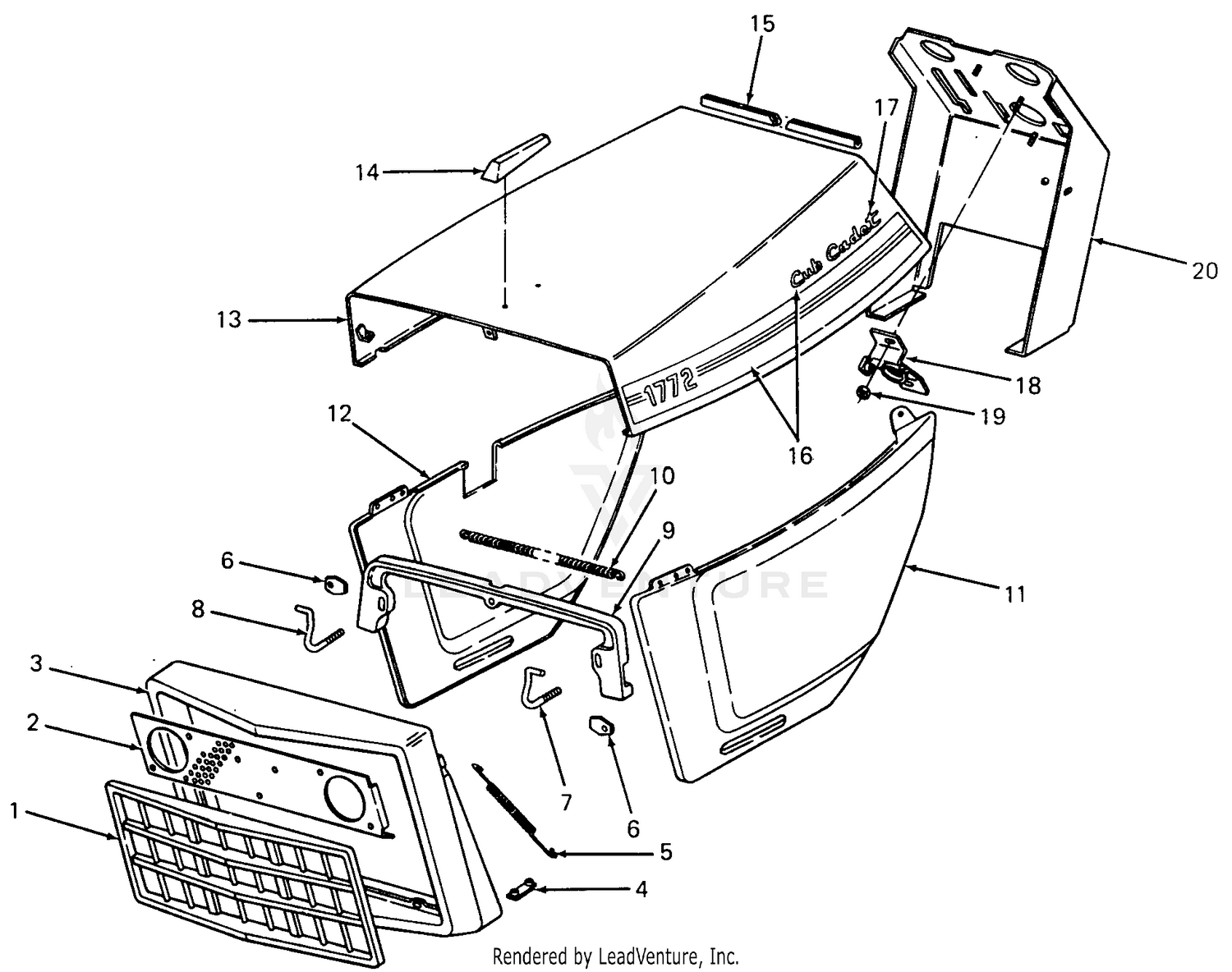

| Ref | Part Number | Description |
|---|
| 1 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 1 |
719-3003 |
Grille, Insert Price: Call Us |
| 2 |
703-0165 |
SCREEN, GRILLE Not Available Price: |
| 3 |
66-6390 |
DECAL-CAUTION Price: $27.63 |
| 3 |
719-3002 |
Housing, Grille Price: Call Us |
| 4 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 4 |
703-0008 |
GRILLE HOUSING RETAINER Not Available Price: |
| 5 |
32128-21 |
NUT-HF Price: $0.39 |
| 5 |
932-3001 |
EXTENSION SPRING This part replaces 732-3001. Price: $14.90 |
| 6 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 6 |
703-0063 |
PLATE-HOOD Not Available Price: |
| 7 |
3217-6 |
NUT-HEX Price: $1.19 |
| 7 |
747-3009 |
HINGE-HOOD (LH) Not Available Price: |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
947-3010 |
HOOD HINGE (RH) Not Available This part replaces 747-3010. Price: |
| 9 |
106-5190 |
BATTERY This part replaces 63-9230. Price: $170.85 |
| 9 |
703-1753 |
Support, Hood Price: Call Us |
| 10 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 10 |
932-3006 |
EXTENSION SPRING Not Available This part replaces 732-3006. Price: |
| 11 |
32103-2 |
NUT-WING Price: $0.68 |
| 11 |
703-1076 |
PANEL, LH - SIDE Not Available Price: |
| 12 |
28-1280 |
DISCONTINUED Price: Call Us |
| 12 |
703-1077 |
PANEL (RH) SIDE DIESEL Not Available Price: |
| 13 |
70-1180 |
DISCONTINUED Price: Call Us |
| 13 |
703-0947 |
HOOD ASSEMBLY Not Available Price: |
| 14 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 14 |
731-3059 |
Ornament, Hood Price: Call Us |
| 15 |
731-0511-29 |
TRIM STRIP 29" This part replaces 731-3003. Price: $42.94 |
| 16 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 17 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 17 |
931-3053A |
SCRIPT-CCC This part replaces 731-3053A. Price: $21.69 |
| 18 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 18 |
703-0260 |
Support, Steering Column Price: Call Us |
| 19 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 19 |
712-0324 |
Nut, Hex Insert Lock, 1/4-20 Price: $3.38 |
| 20 |
703-1008 |
Pedestal Price: Call Us |
| 20 |
92-7802 |
DECAL-INSTR., START Price: $22.12 |
| 21 |
92-7800 |
BATTERY COVER ASM Price: $65.49 |
| 22 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 24 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 25 |
2412-61 |
TINNERMAN CLIP Price: $4.93 |
| 26 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 27 |
98-3883 |
CLAMP-WIRE Price: $0.81 |
| 28 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 29 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 30 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 31 |
52-1321 |
DECAL-FUEL, DIESEL Price: $9.16 |
| 32 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 33 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 34 |
322-6 |
SCREW-HH Price: $0.45 |
| 35 |
2412-74 |
R-CLAMP Price: $2.37 |
| 36 |
93-3183 |
TOOL BOX ASM Price: $240.67 |
| 37 |
32128-20 |
NUT-HF Price: $0.99 |
| 38 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 39 |
32128-33 |
NUT-HF Price: $0.25 |
| 41 |
72-3690 |
DISCONTINUED Price: Call Us |
| 42 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 43 |
68-8610-01 |
EXTENSION-FENDER This part replaces 68-8610. Price: $186.20 |
| 44 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 45 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 46 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 47 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 48 |
88-0070-01 |
PLATE-FLOOR This part replaces 88-0070. Price: $169.68 |
| 50 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 51 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 52 |
18-2770 |
CABLE-GROUND Price: $47.33 |
| 53 |
92-7801 |
SHIELD-COVER, BATTERY Price: $12.83 |
| 54 |
93-3185 |
COVER ASM This part replaces 93-3184. Price: $144.25 |
| 503859901 |
503859901 |
STARTER SPRING Price: $24.99 |
| 503876301 |
503876301 |
STARTER PULLEY Price: $17.99 |
