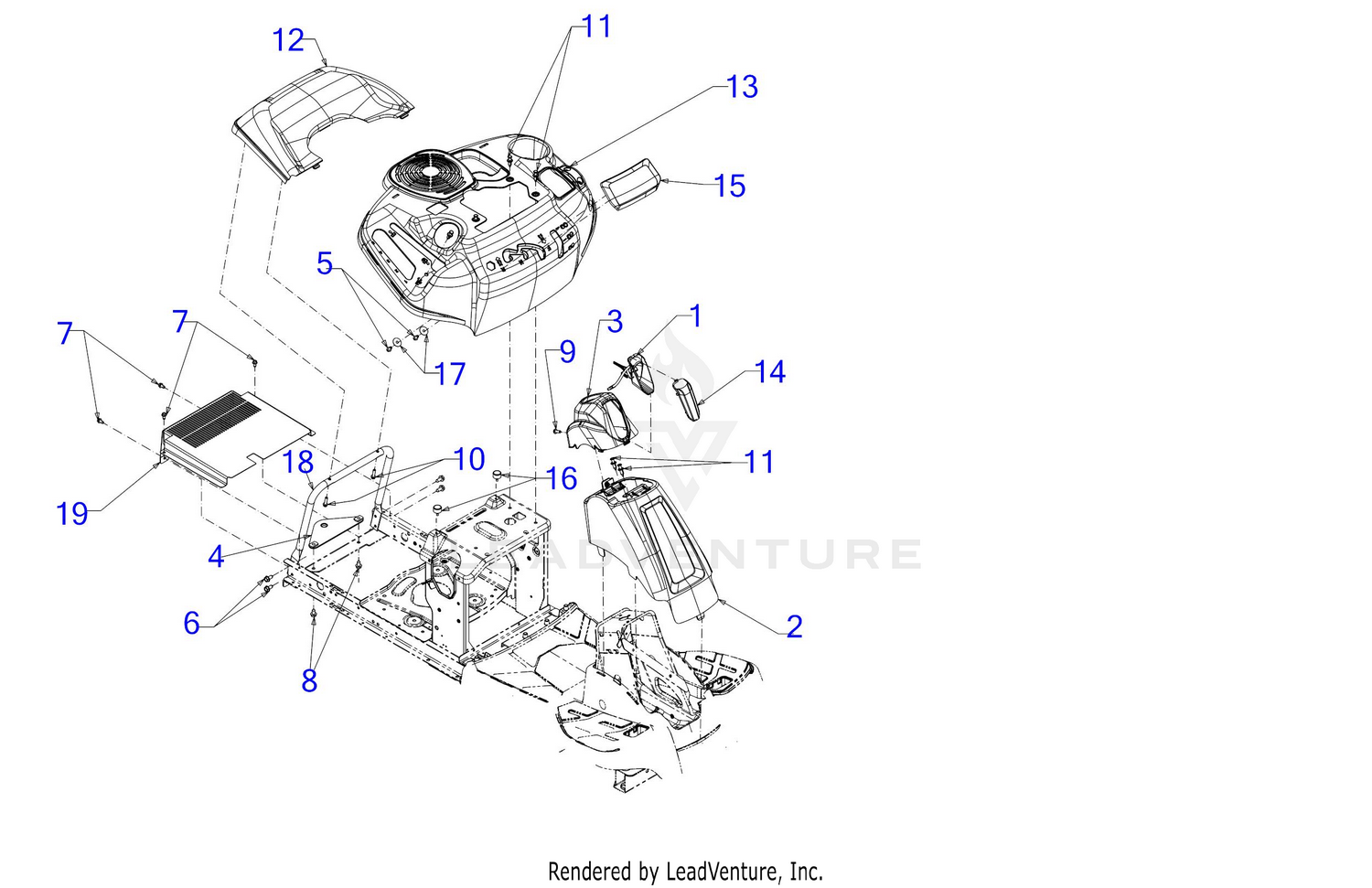

| Ref | Part Number | Description |
|---|
| 1 |
925-05119 |
HEADLIGHT HARNESS ASSEMBLY Price: $52.94 |
| 2 |
631-05038 |
COLUMN COVER ASSEMBLY (MTD RED) Price: $29.83 |
| 3 |
631-05369 |
STEERING COLUMN CAP (MTD RED) Price: $33.97 |
| 5 |
710-04187A |
HEX SCREW 1/4-15 x .50 Price: $5.99 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 8 |
710-0604A |
SCREW 5/16-18 x .625 Price: $3.96 |
| 9 |
710-0924 |
SCREW 1/4-20X.75 Price: $4.02 |
| 10 |
710-1241 |
SCREW 1/4-15 x 1.00 Price: $5.77 |
| 11 |
728-0199 |
PLASTIC RIVET Price: $4.08 |
| 12 |
731-08620A |
REAR COVER Price: $29.37 |
| 13 |
931-08708B |
FENDER (W/RMC) This part replaces 931-08708A. Price: $75.62 |
| 14 |
731-11484 |
LED HEADLIGHT LENS Price: $9.13 |
| 15 |
731-11496 |
FENDER COVER Price: $11.86 |
| 16 |
735-05006 |
BUMPER .62 DIA x .50 Price: $3.70 |
| 17 |
736-3092 |
FLAT WASHER Price: $3.68 |
