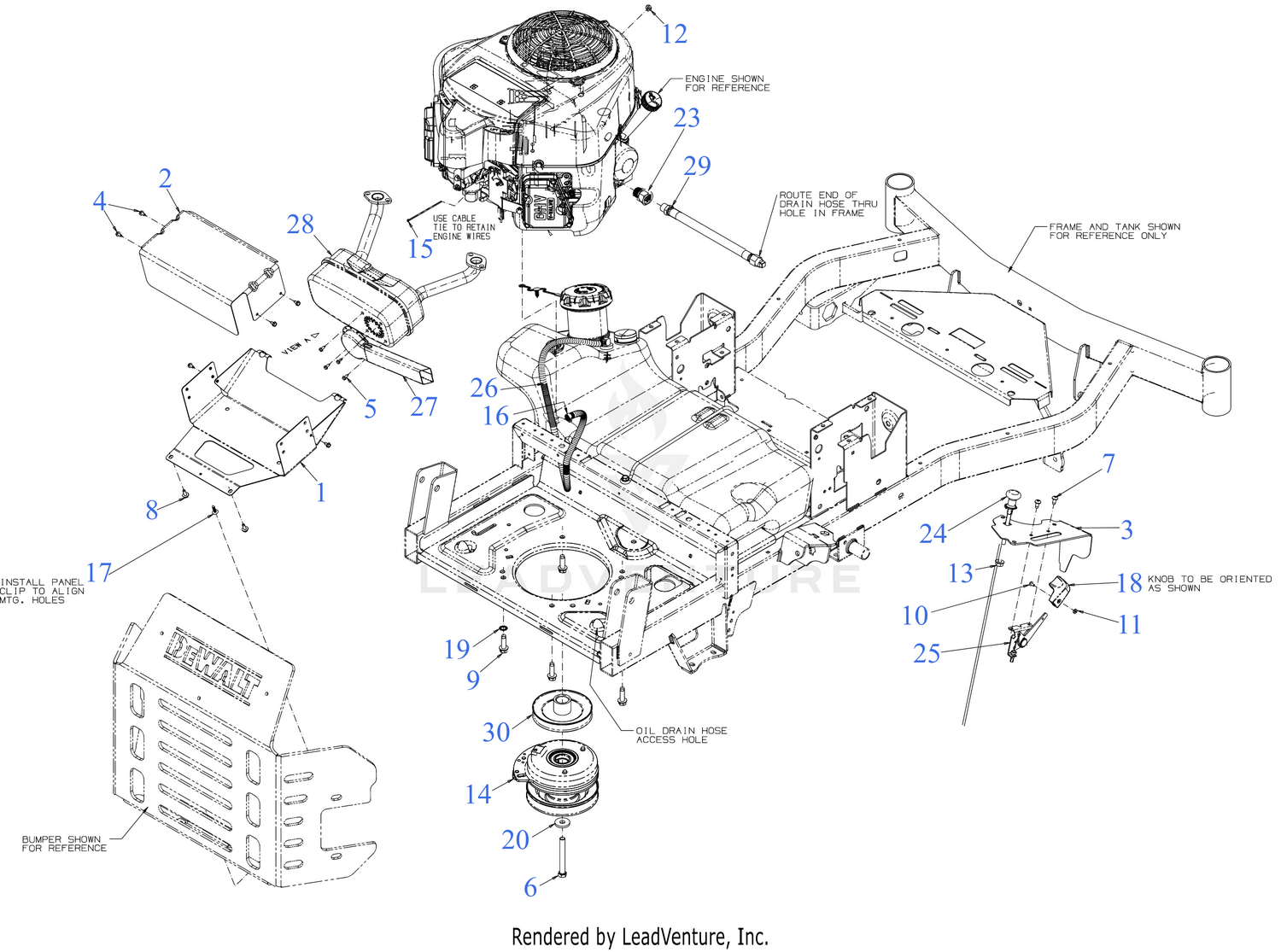

| Ref | Part Number | Description |
|---|
| 1 |
703-16041A |
MUFFLER SHIELD (LOWER) Price: $74.49 |
| 2 |
703-16042A |
MUFFLER SHIELD (TOP) Price: $42.34 |
| 4 |
910-0224 |
HEX SCREW AB-TAP #10 x .50 Price: $3.19 |
| 5 |
710-0227 |
HEX SCREW WASHER HD #8-18 x 0.500 Price: $3.90 |
| 6 |
710-04379A |
SCREW 7/16-20 x 3.5 GR5 Price: $5.35 |
| 7 |
710-05070A |
SCREW 1/4-20 x .5 Price: $6.01 |
| 8 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 9 |
710-1315 |
SCREW 3/8-16 X1.250 Price: $3.90 |
| 10 |
710-3217 |
SCREW #8-32X.38 LG Price: $5.94 |
| 11 |
712-0142 |
HEX NUT 8-32 Price: $3.90 |
| 12 |
712-05106 |
HEX NUT 1/4-20 Price: $2.72 |
| 13 |
712-3005 |
HEX FLANGE NUT Price: $5.99 |
| 14 |
717P06468 |
ELECTRIC PTO CLUTCH Price: $532.98 |
| 15 |
726-0197 |
CABLE TIE Price: $3.22 |
| 16 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 17 |
726-04099A |
RATCHET CLIP (.188 x .85) Price: $3.16 |
| 18 |
731-09637 |
THROTTLE CONTROL KNOB Price: $7.44 |
| 19 |
736-0148 |
LOCK WASHER 3/8 Price: $3.19 |
| 20 |
736-0322 |
FLAT WASHER .445 x 1.248 x .170 Price: $8.42 |
| 23 |
737-04138A |
OIL DRAIN FITTING (M20x2.5) Price: $22.64 |
| 24 |
746P04847A |
CHOKE CABLE 40.5 LG Price: $35.39 |
| 25 |
946-05131A |
THROTTLE CABLE 38.5" Price: $40.05 |
| 26 |
751-22813-36 |
FUEL HOSE 1/4-36" This part replaces 751-10349-28. Price: $41.21 |
| 27 |
751-11424A |
MUFFLER DEFLECTOR Price: $14.36 |
| 28 |
951-11471F |
EXHAUST MUFFLER (TWIN) This part replaces 951-11471E. Price: $132.01 |
| 29 |
751-15324B |
OIL DRAIN HOSE (11.37" 3/8x1/4 NPT) This part replaces 751-15324A. Price: $38.80 |
| 30 |
756-06203A |
TRANSMISSION DRIVE PULLEY This part replaces 756-06203. Price: $32.71 |
