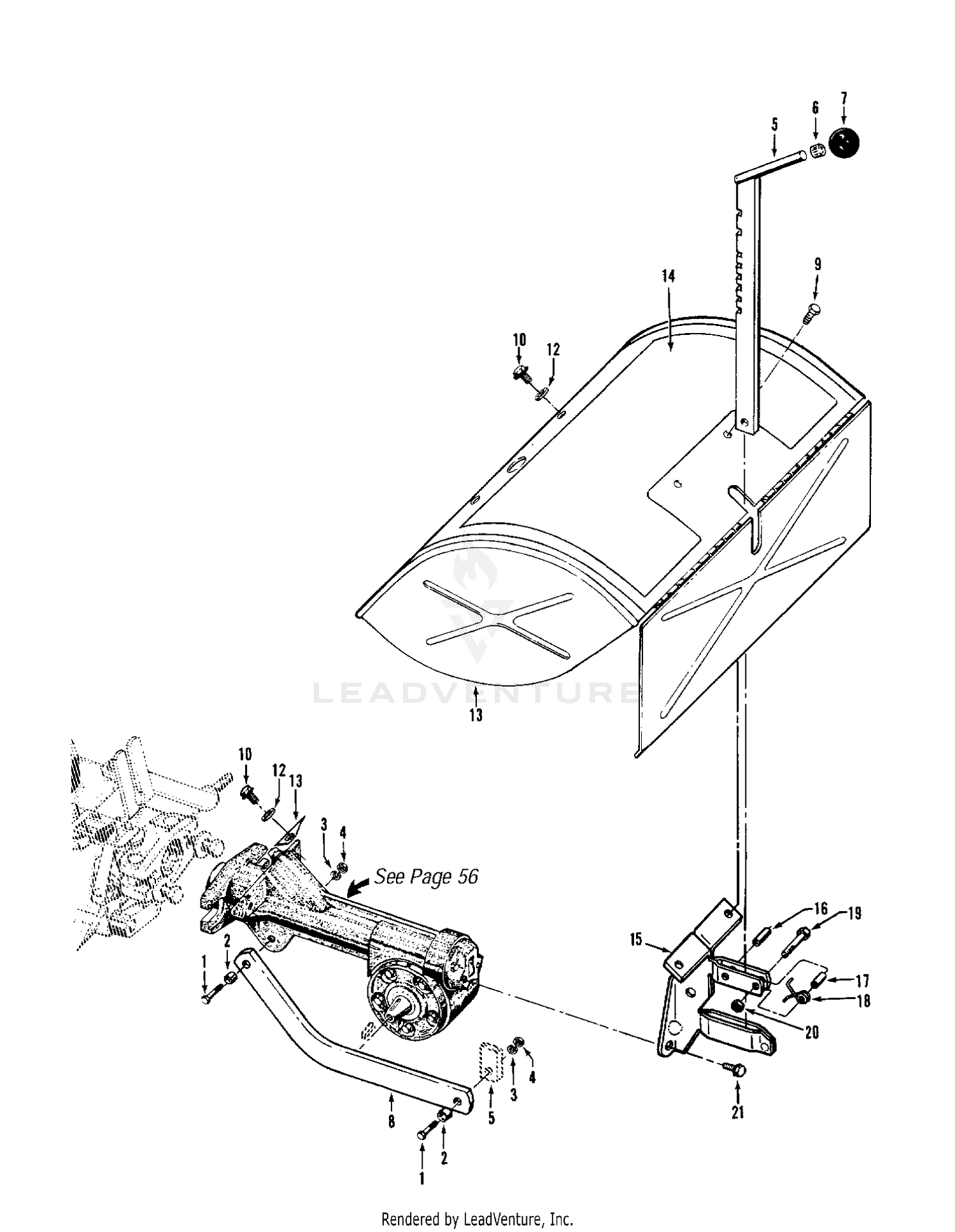

Depth Regulator & Tine Hood Assemblies

Depth Regulator & Tine Hood Assemblies

Parts (15)

RefPart NumberDescription
1 710-3005 SCREW 3/8-16 x 1.25 GR5 This part replaces 1100043. Price: $3.61
2 GW-1113-1099 BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces 1113-1. Price: $4.53
3 736-0169 L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33
4 712-3017 HEX NUT 3/8-16 GR5 This part replaces 1186231. Price: $3.90
6 GW-9120 RING- retaining (tolerance ring) This part replaces 9120. Price: $5.94
8 1900867001 Bar-drag, depth regulator Price: $29.89
9 710-0599 SCREW 1/4-20 X.500 This part replaces 9552. Price: $3.86
10 710-04043 SCREW 5/16-18 This part replaces 1186329. Price: $3.96
12 GW-9929 Flat Washer This part replaces 9929. Price: $3.15
14 1904543 DECAL-OPERATING IN Not Available Price:
16 715-0108 Pin, Sprg, 1/4 Dia x 1.00 This part replaces 9308. Price: $4.38
17 GW-9534 Spacer This part replaces 9534. Price: $3.70
18 732-04320 Torsion Spring This part replaces 9384. Price: $3.85
19 1100069 Bolt-hex hd., 1/4-20x1" Price: $3.66
20 712-0324 Hex Ins. L-Nut 1/4-20 Thd. This part replaces GW-9811. Price: $3.38
