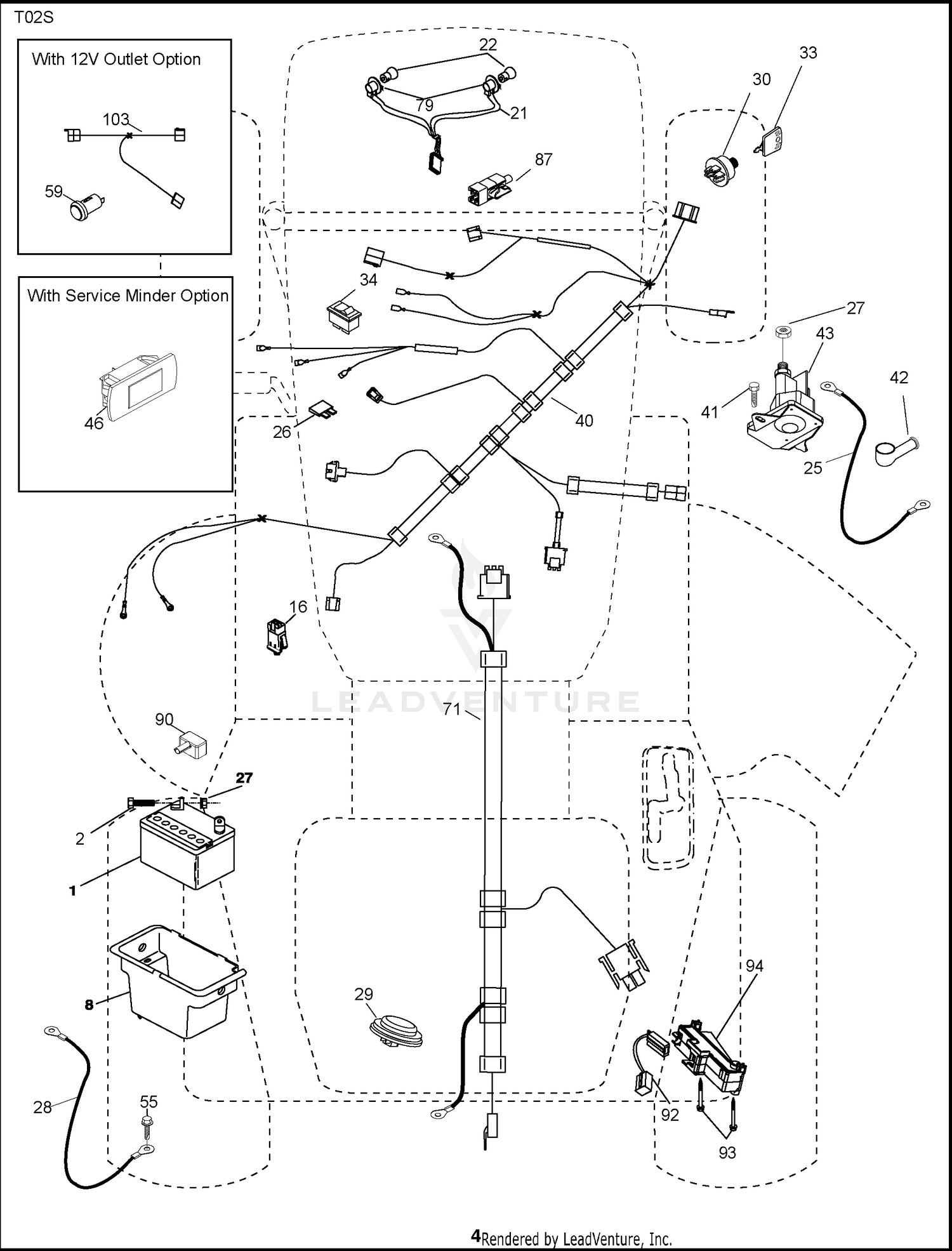

Electrical

Electrical

Parts (44)

RefPart NumberDescription
1 163465 Battery Price: Call Us
1 3256-24 WASHER-FLAT Price: $0.28
2 3234-13 SCREW-HHF Price: $0.77
2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4 Price: Call Us
3 66-2990 CAP-SPINDLE Price: $13.27
4 93-3196 DISCONTINUED Price: Call Us
5 10-8110 WASHER-THRUST Price: $1.09
6 32151-36 RING-RETAINING Price: $1.73
7 100-6598 PIVOT-STEERING Price: $314.27
8 193228 Box Battery Price: Call Us
8 21-0151 LH BALL JOINT ASM Price: $126.28
9 3220-12 NUT-HEX JAM LH Price: $1.83
10 63-6880 TIE ROD-STEERING Price: $50.74
11 21-0141 RH BALL JOINT ASM Price: $109.12
12 3220-5 NUT-JAM Price: $0.65
13 93-3195 DISCONTINUED Price: Call Us
14 256-121 WASHER-THRUST Price: $4.55
15 76-3000-03 REAR AXLE ASM This part replaces 76-3000. Price: $1,003.02
16 176138 Switch Interlock Price: Call Us
16 3220-3 NUT-HJ Price: $0.28
17 32151-77 RING-RETAINING, EXTERNAL Price: $4.07
18 76-2980 WASHER-THRUST Price: $5.08
19 56-2460 WASHER-FLAT Price: $3.32
21 183759 Harness Socket Light Price: Call Us
22 4152J Bulb, Light # 1156 Price: Call Us
25 401662 Cable Battery 6 Ga. Red 14.5 Price: Call Us
26 175158 Fuse Price: Call Us
27 73510400 Nut Keps Hex 1/4-20 unc Price: Call Us
28 198885 Cable Ground 18" Rear Battery Blk 6 Ga. Price: Call Us
29 401545 Switch Seat Price: Call Us
30 193350 Switch Ign Price: Call Us
33 411935 Key/Chain Price: Call Us
34 110712X Switch Light/Reset Price: Call Us
40 401098 Harness Ign Price: Call Us
41 17720408 Screw 1/4-20 unc x 1/2 Price: Call Us
42 131563 Cover Terminal Red Price: Call Us
43 192507 Solenoid Price: Call Us
55 17060512 Screw 5/16-18 x 3/4 Price: Call Us
71 400449 Harness Ign. Chass. Price: Call Us
79 175242 Socket Asm Bulb Twistlock Price: Call Us
87 197802 Switch Interlock Clutch Cable Price: Call Us
90 400725 Cover Terminal Price: Call Us
92 196615 Harness Pigtail ROS Price: Call Us
93 192540 Screw Plastic 10-14 x 2.0 Price: Call Us
