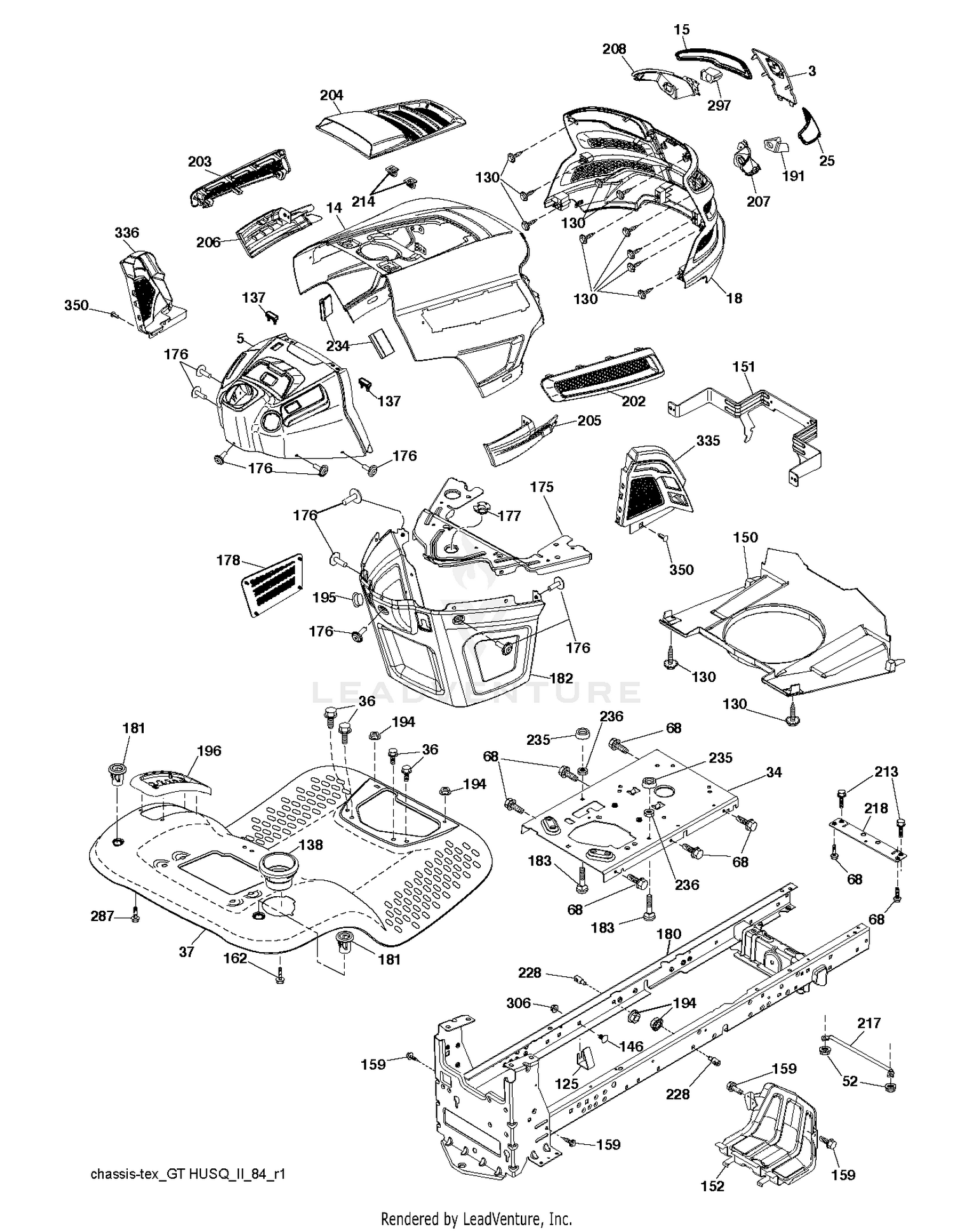

| Ref | Part Number | Description |
|---|
| 2 |
105-3992-03 |
BRACKET-BULKHEAD Price: $45.94 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 4 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 5 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 5 |
532437473 |
RP.DASH.UPP.GT2.SM.MC.CHOKE Price: $59.99 |
| 6 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 8 |
87-3470 |
BUMPER Price: $18.89 |
| 9 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 10 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 11 |
105-9827 |
SHAFT Price: $77.02 |
| 12 |
136-3385 |
NO.2 LIFTARM ASM This part replaces 105-9202. Price: $800.50 |
| 13 |
136-3387 |
NO. 3 LIFTARM ASM This part replaces 105-9203. Price: $800.50 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
127-6428 |
LIFT CYLINDER ASM Price: $655.93 |
| 17 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 18 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 18 |
597247201 |
Grilles This part replaces 532440653. Price: $84.99 |
| 19 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 20 |
92-7548 |
PIN-CYLINDER Price: $16.62 |
| 21 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 23 |
131-4201 |
PIN-PIVOT This part replaces 104-5525. Price: $20.50 |
| 24 |
323-7 |
SCREW-HH Price: $0.65 |
| 25 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 27 |
105-9839 |
STOP-ROTATION, NO. 2 AND 3 Price: $67.21 |
| 28 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 29 |
131-7765-0P |
SUPPORT-BUMPER, REAR This part replaces 131-7765-03. Price: $77.14 |
| 30 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 31 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 33 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 34 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 35 |
323-52 |
SCREW-HH Price: $3.63 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 36 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 37 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 37 |
597652401 |
SERVICE KIT FENDER.TLT.CPH.615 This part replaces 532441206. Price: $219.99 |
| 38 |
105-9822 |
SPACER Price: $3.16 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 138 |
532439747 |
HOLDER.CUP.LT.GREY Price: $4.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439731 |
AIR DUCT.GTV2(1.66"RING HEIGHT Price: $37.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
579841501 |
KITS.CHASSIS.WELD.SERVICE This part replaces 532195457. Price: $219.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. This part replaces 532439746. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
547634701 |
CONSOLE.DECKLIFT.GREY.PKG.KIT This part replaces 532439647. Price: $17.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 This part replaces 532435714. Price: $22.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
