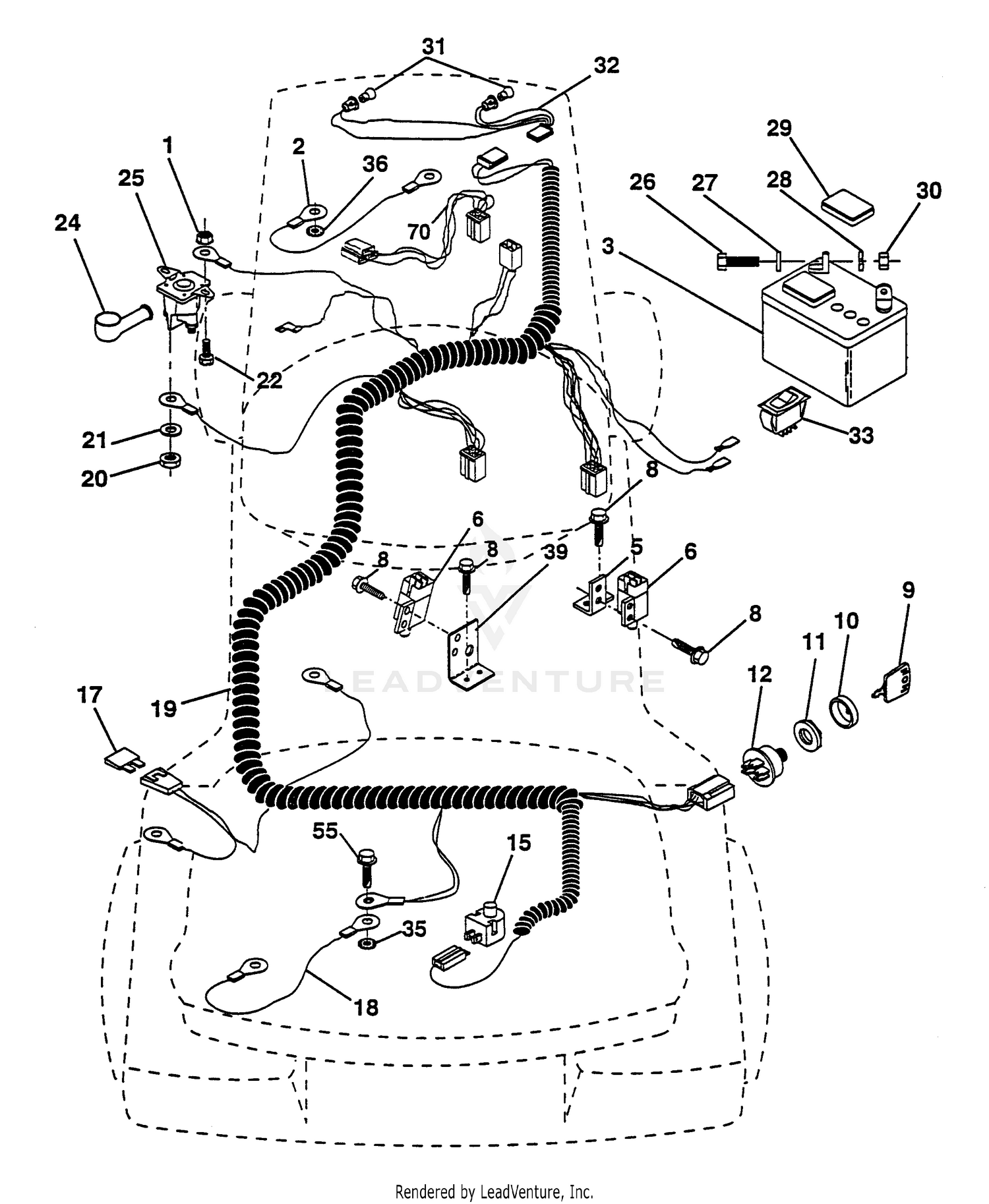

Electrical

Electrical

Parts (79)

RefPart NumberDescription
1 3296-23 NUT-LOCK, NI Price: $0.52
1 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99
2 32128-20 NUT-HF Price: $0.99
2 532108423 CABLE.BATTERY.6GA.16"RED Price: $6.99
3 3256-23 WASHER-PLAIN Price: $0.28
3 532123899 BATTERY.DRY.30.AMP This part replaces 532133909. Price: $149.99
4 322-17 SCREW-HH Price: $2.62
5 32128-44 NUT Price: $2.69
5 532108236 BRACKET LT Price: $2.99
6 539101080 SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99
6 83-9350 ROD-ADJUSTING Price: $83.93
7 61-3990-03 BRAKE-PARKING ASM This part replaces 61-3990. Price: $432.36
8 3234-5 SCREW-HHF Price: $0.42
8 817021008 SCREW Price: $3.99
9 5-7290 SPRING-TENSION Price: $23.15
9 532140401 KEY MLD GEN DELTA Price: $5.99
10 340-77 FITTING-ELBOW, 90 DEG Price: $24.95
10 532141226 COVER SWITCH KEY Price: $4.99
11 340-17 FITTING-ELBOW, 90 DEG Price: $42.29
11 532145774 KIT-WASHER/NUT This part replaces 532140400. Price: $3.99
12 532158913 KIT.SWITCH.IGNITION This part replaces 532140399. Price: $39.99
12 75-9990 HYD MOTOR ASM Price: $831.33
13 3296-42 NUT-LOCK, NI Price: $0.28
14 3256-16 WASHER-FLAT Price: $0.39
15 532421062 SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99
15 83-9340 SHIELD-BRAKE, GRASS Price: $9.96
16 321-5 SCREW-HH Price: $0.22
17 532108824 FUSE HYT Price: $4.99
17 70-9840 SHOE-BRAKE Price: $60.36
18 532128353 CABLE ASSY Price: $3.99
18 93-6838-03 HUB-WHEEL This part replaces 93-6838. Price: $72.59
19 10-6850 DRUM-BRAKE Price: $54.08
19 532143132 HARNESS IGN FEND Price: $68.45
20 144-3665 TIRE This part replaces 93-6879. Price: $109.83
20 532050675 NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99
21 596029801 WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99
21 93-6881 RIM ASM Price: $152.01
22 139-2564 NUT-LUG This part replaces 242-50. Price: $0.99
22 596437001 Screws This part replaces 874780408. Price: $2.99
23 85-6540 STUD-DRIVE Price: $7.41
24 3274-99 SCREW-HSH Price: $3.04
24 532154336 COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99
25 147-3595 BRACKET-BRAKE This part replaces 84-2000. Price: $8.08
25 532146154 KIT SOLENOID .95 This part replaces 532138406. Price: $19.99
26 874760412 BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99
26 93-6905-03 SHIELD-WHEEL This part replaces 93-6905. Price: $35.36
27 3272-6 PIN-COTTER Price: $0.25
27 596582301 Washers This part replaces 819091016. Price: $2.99
28 596029801 WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99
28 83-9310 RH BRAKE LEVER ASM Price: $67.19
29 532121264 CAP BATTERY NLA Price: $10.91
29 83-9270 DISCONTINUED Price: Call Us
30 32121-6 PIN-ROLL, SLOTTED Price: $0.28
30 532050675 NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99
31 283-1 PIN-CLEVIS Price: $1.63
31 532004152 LIGHTBULB Price: $3.99
32 532142881 HARNESS HEADLIGHT Price: $28.30
32 93-6850 LEVER-BRAKE Price: $59.75
33 282-2 YOKE Price: $30.04
33 532110712 SWITCH LT Price: $7.99
34 3220-2 NUT-JAM Price: $0.50
35 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99
35 84-1990 ROD-ADJUSTING Price: $17.37
36 3-6498 WASHER-THRUST Price: $4.58
36 811150400 Washer, Lock, Internal Tooth 1/4 Price: $2.99
37 83-9330 SHAFT-BRAKE Price: $81.90
38 93-6888 HYD MOTOR ASM Price: $1,132.26
39 532141735 BRACKET Price: $2.99
39 92-1715 SPACER Price: $7.99
40 26-3790 NUT-LOCK Price: $24.46
41 5108 VALVE This part replaces 232-27. Price: $6.29
42 70-9880 SPRING-RETURN Price: $11.81
43 104-7708 BRAKE CAM & E-RING ASM This part replaces 70-9860. Price: $42.42
44 70-9870 PLATE-BACKING Price: $183.14
45 237-22 O-RING Price: $2.43
46 237-42 O-RING Price: $2.78
47 237-80 O-RING Price: $6.10
48 237-65 O-RING Price: $2.50
55 596030701 Screws This part replaces 817490508. Price: $2.99
