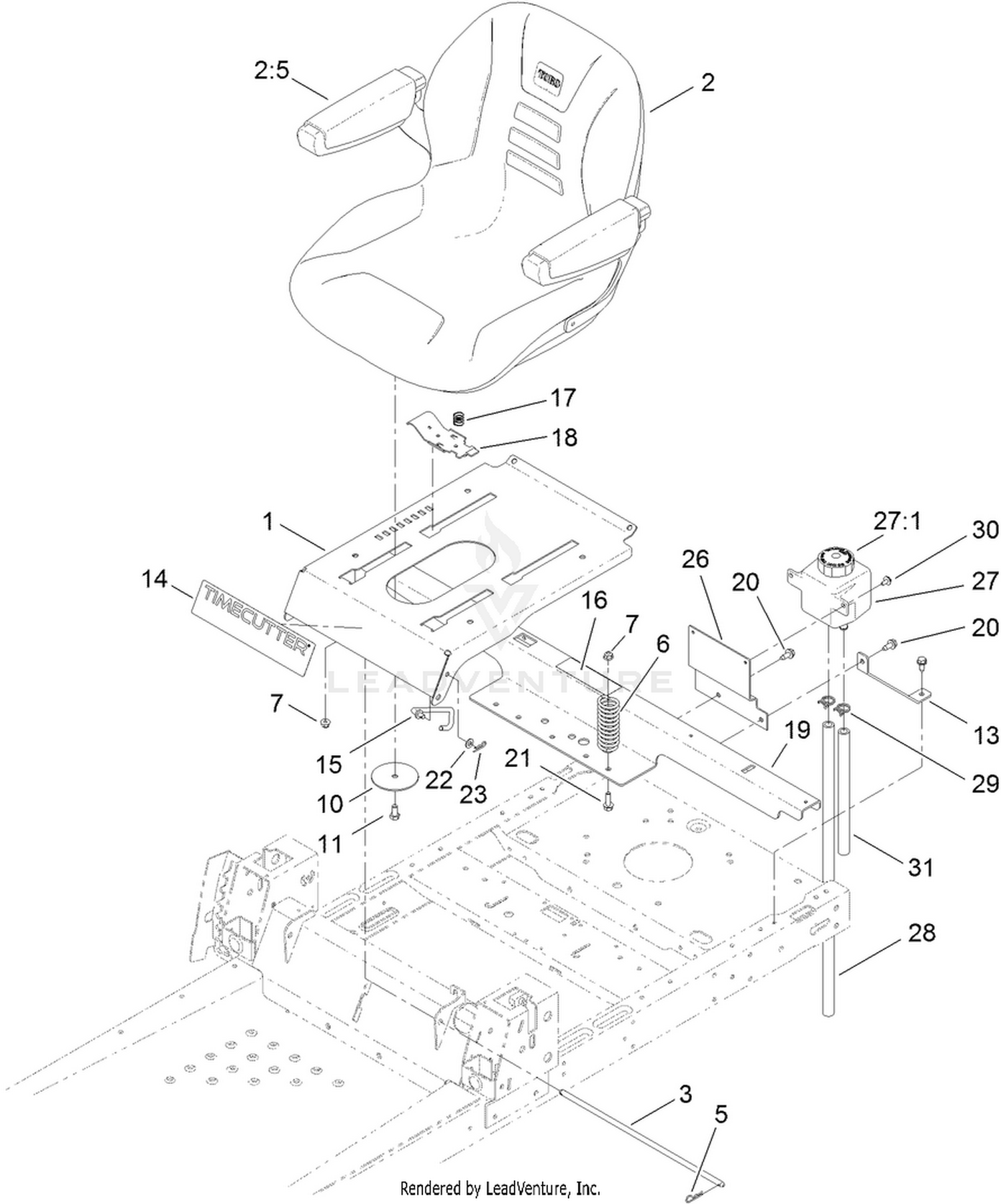

Seat Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-3390-03 | PAN-SEAT Price: $72.38 |
| 3 | 115-4966 | ROD-STOP Price: $12.44 |
| 5 | 3290-250 | PIN-COTTER Price: $5.59 |
| 6 | 92-7054 | SPRING-COMPRESSION Price: $13.32 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 10 | 117-5307 | WASHER-SEAT Price: $4.91 |
| 11 | 323-4 | SCREW-HH Price: $1.02 |
| 13 | 119-3431-03 | SUPPORT-TANK, REAR Price: $3.68 |
| 14 | 121-3019 | DECAL-TIMECUTTER Price: $6.35 |
| 15 | 119-8972 | STOP-SEAT Price: $4.80 |
| 16 | 106-8717 | DECAL-SERVICE, CE Price: $4.87 |
| 17 | 115-9624 | SPRING-COMPRESSION Price: $1.13 |
| 18 | 115-9623 | LATCH-SEAT Price: $12.49 |
| 19 | 119-3414-03 | SUPPORT-POD Price: $80.40 |
| 20 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 21 | 3234-29 | SCREW-HHF Price: $1.84 |
| 22 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 23 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 26 | 120-7970-03 | MOUNT-TANK Price: $16.73 |
| 27 | 109-2250 | TANK-HYD Price: $42.48 |
| 28 | 121-2951 | HOSE-OVERFLOW Price: $6.15 |
| 29 | 117-1193 | CLAMP-HOSE Price: $0.85 |
| 30 | 46-8560 | SCREW-HHFTF Price: $1.79 |
