Home / OPE / Riding Products / 02750, T4240 4-Wheel Drive 5-Plex Traction Unit, 2015 (SN 315000001-315999999) / MK3 Cutterhead 254mm

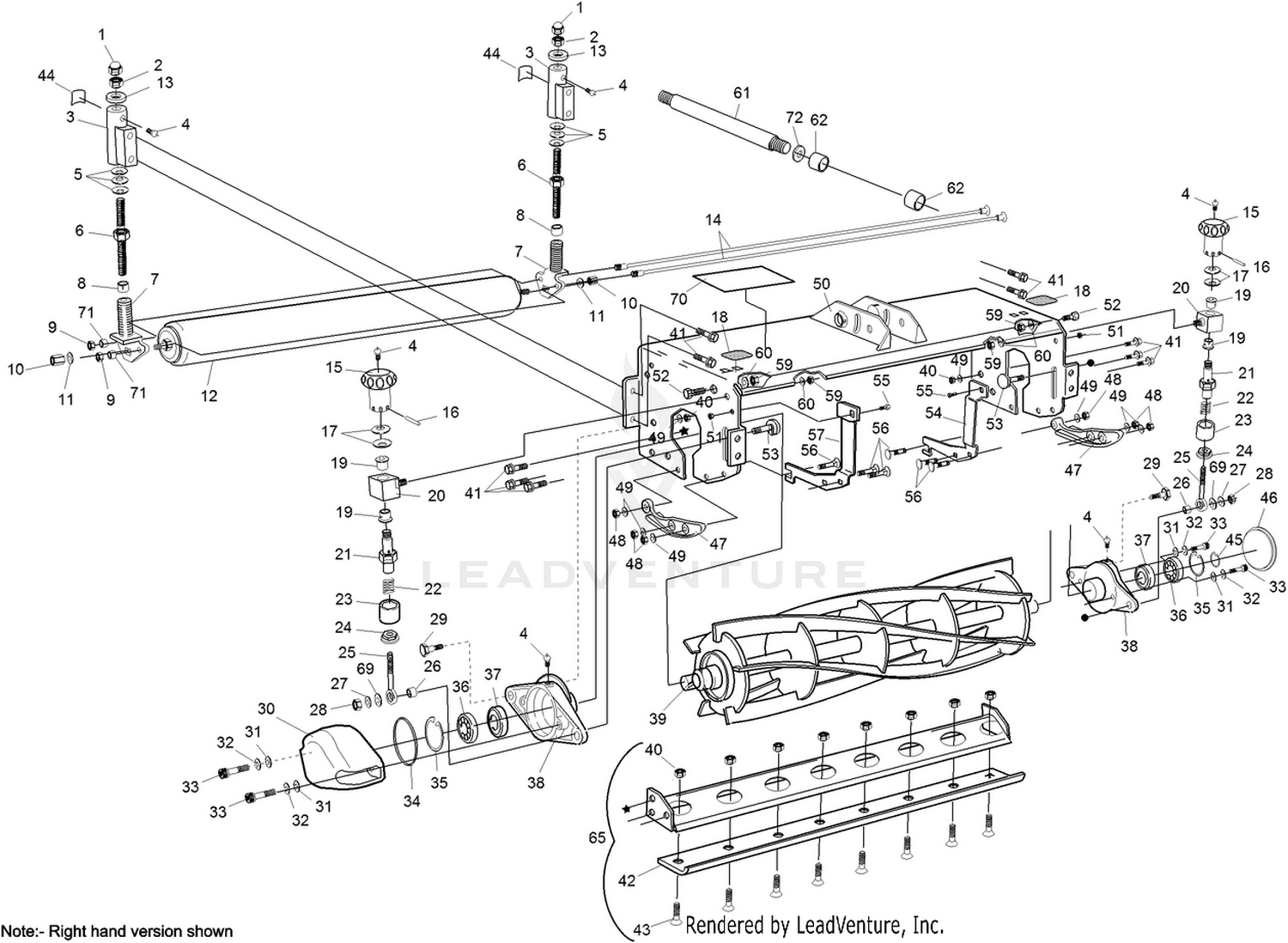

MK3 Cutterhead 254mm

MK3 Cutterhead 254mm

Parts (67)

RefPart NumberDescription
1 ZNK1L000U HEX.DOME NUT M12 Price: $1.88
2 ZNL1L000U HEX LOCKNUT M12 Price: $1.44
3 876064W ROLLER MOUNTING W/A Price: $91.66
4 10-11-017 GREASE NIPPLE 1/8BSP STR Price: $1.44
5 876099 DISC SPRING DIA 25* DIA 12,2*1,5MMTHK Price: $1.40
6 63-01-960 REAR ROLLER ADJUSTING STUD Price: $28.47
7 111-9450 SHAFT-ADJUSTER, ROLLER This part replaces 876027. Price: $63.35
8 63-02-123 REAR ROLLER ADJ SPACER Price: $10.76
9 09438 NUT M6 X 1.5 PLAIN Price: $1.39
10 876062 NUT ROLLER Price: $11.05
11 HY4200 WASHER Price: $1.34
12 876006 SMOOTH ROLLER (SERVICEABLE) Price: $153.04
13 876098 CAP PRESSURE CONTROL Price: $8.40
14 63-07-072 SCRAPER WIRE Price: $17.04
15 876013W HANDWHEEL Price: $18.57
16 09730 PIN SPIROL Price: $1.42
17 876034 DISC SPRING Price: $1.65
18 214053 DECAL HEIGHT OF CUT Price: $1.63
19 876082 BEARING Price: $5.65
20 876047 TRUNNION Price: $32.01
21 876085 SLEEVE ADJUSTER Price: $31.75
22 876003 SPRING COMPRESSION Price: $2.52
23 876053 CAGE BACKLASH Price: $20.69
24 876054 NUT BACKLASH Price: $13.28
25 876004 SWING BOLT Price: $21.66
26 876035 BEARING Price: $3.25
27 09599 WASHER Price: $1.42
28 09454 NUT M12 PLAIN HEX PLATED Price: $1.36
29 876022 PIN PIVOT Price: $8.77
30 876009W COUNTERWEIGHT Price: $44.64
31 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
32 09480 WASHER M10 SC SPRING Price: $1.36
33 09718 SCREW SOC HD CAP Price: $1.49
34 876032 O RING Price: $1.65
35 63-07-008 CIRCLIP INTERNAL 52DIA Price: $2.55
36 63-07-036 BEARING Price: $9.69
37 63-07-038 SEAL DOUB.LIP 30*52*10W Price: $10.87
38 876007W CASTING BEARING Price: $128.11
39 134-0494 REEL-10 IN,4 BLD,LH HELIX This part replaces 111-3418. Price: $351.20
39 134-0495 REEL-10 IN,6 BLD,LH HELIX This part replaces 111-3419. Price: $380.26
39 134-0496 REEL-10 IN, 8 BLADE(LH HELIX) This part replaces 111-3420. Price: $632.85
40 ZNB1J000U M10 BINX SELF LOCKING NUT Price: $1.27
41 63-11-019 HEX HD SCREW(DURLOCK) M10X16 Price: $2.47
42 134-8016 BLADE-BOTTOM This part replaces 111-3428. Price: $41.01
43 09740 SCREW SOC HD CS M10*25 Price: $1.36
44 63-13-039 DECAL HEIGHT OF CUT ADJ Price: $1.44
45 40-07-017 CIRCLIP EXT.25MM DIA Price: $1.40
46 861808 PLUG MOTOR HOUSING 11357 Price: $1.31
47 884024W SKID 10" MK3 Price: $34.32
48 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
49 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
50 884007C MAINFRAME MK3 W/A DIA 250 Price: $598.56
51 09438 NUT M6 X 1.5 PLAIN Price: $1.39
52 ZDH1L016U HEX HD.SET SCW.M12*16 Price: $1.35
53 876069 PIN BEARING ADJUSTER Price: $26.70
54 884015W BRACKET-GUARD, LH Price: $32.31
55 09362 SCREW M6 X 16 HEX HD ZINC Price: $1.42
56 09738 BOLT CARRIAGE Price: $1.42
57 884016W BRACKET GUARD RH Price: $31.24
59 ZNB1L000U HEX.NUT M12 BINX Price: $1.59
60 ZWP1L000U PLAIN WASHER M12 Price: $1.44
61 65-05-127 HEAD PIVOT PIN MK3 10"HD (400MM) Price: $38.34
62 876065 BUSH Price: $8.47
65 876060W BOTTOM BLADE ASSY Price: $280.94
69 HY09485 WASHER M12 PLAIN Price: $1.40
70 40-13-010 DECAL - C/HEAD MIND TOES&FING Price: $1.44
71 340154 BUSHING Price: $4.85
