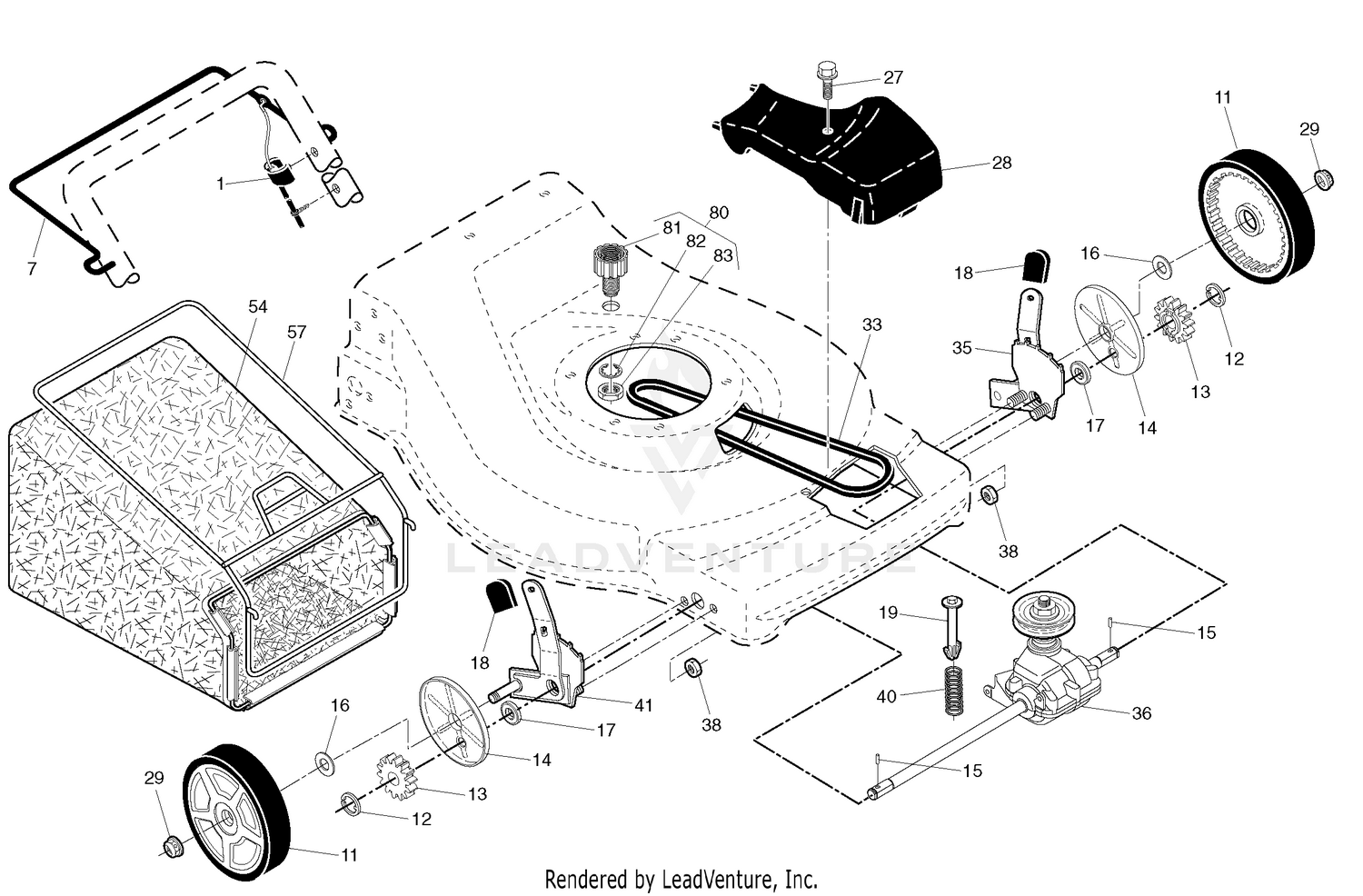

| Ref | Part Number | Description |
|---|
| 1 |
194653 |
Drive Control Cable Price: Call Us |
| 1 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 2 |
321-4 |
SCREW-HH Price: $0.99 |
| 3 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 4 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 6 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 7 |
194185X421 |
Bar, Drive Control Price: Call Us |
| 7 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 8 |
251-259 |
BEARING-BALL Price: $13.67 |
| 9 |
322-17 |
SCREW-HH Price: $2.62 |
| 10 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 11 |
193912X428 |
Wheel & Tire Assembly, Front Price: Call Us |
| 11 |
29-9790-03 |
DISCONTINUED Price: Call Us |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 12 |
321-9 |
SCREW-HH Price: $0.27 |
| 13 |
403849 |
Pinion Price: Call Us |
| 13 |
52-9070 |
PLATE-PUMP Price: $101.93 |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 14 |
52-8890-03 |
DISCONTINUED Price: Call Us |
| 15 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 15 |
404845 |
Pawl, Drive Price: Call Us |
| 16 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 16 |
67725 |
Washer, Flat 3/8 Price: Call Us |
| 17 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 17 |
421836 |
Bearing, Wheel Adjuster Assembly Price: Call Us |
| 18 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 18 |
701037X421 |
Selector Knob Price: Call Us |
| 19 |
150495 |
Retainer, Spring Price: Call Us |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 20 |
3219-2 |
NUT-HEX Price: $0.37 |
| 21 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 27 |
175262 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 28 |
401271X428 |
Drive Cover Price: Call Us |
| 29 |
409148 |
Locknut, Hex Price: Call Us |
| 33 |
146527 |
V-Belt Price: Call Us |
| 36 |
415226 |
Gear Case Assembly, Complete Price: Call Us |
| 38 |
73800400 |
Locknut 1/4-20 Price: Call Us |
| 40 |
137090 |
Spring Price: Call Us |
| 41 |
424200 |
Kit, Wheel Adjuster, RH Price: Call Us |
| 57 |
411952 |
Frame, Grassbag Price: Call Us |
| 80 |
421114 |
Water Washout Assembly Price: Call Us |
| 81 |
419735 |
Fitting, Hose, Water Washout Price: Call Us |
| 82 |
415585 |
Washer, Lock, Internal Tooth Price: Call Us |
