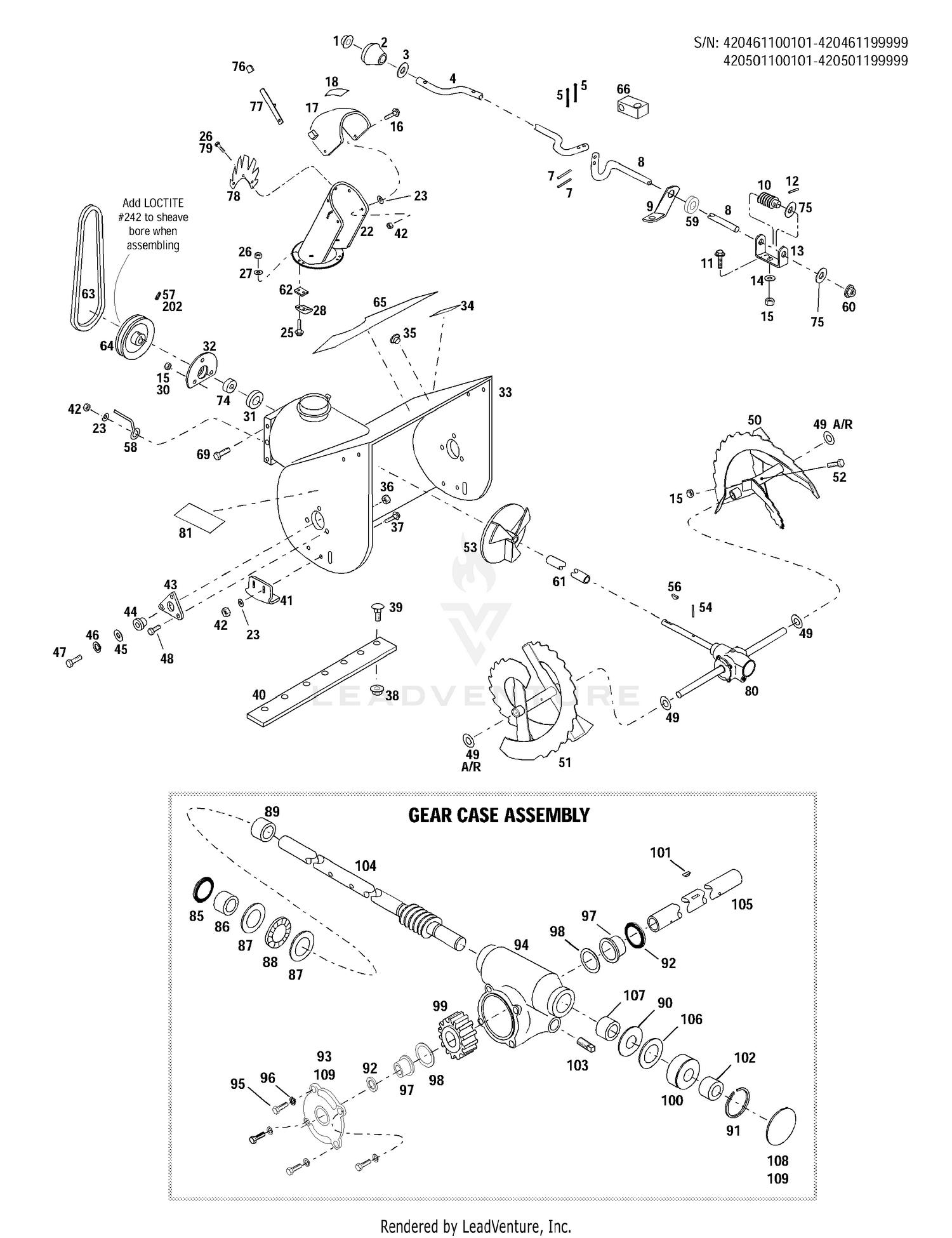

| Ref | Part Number | Description |
|---|
| 1 |
726-0100 |
Push Cap This part replaces 1724791. Price: $3.75 |
| 2 |
920-0171 |
Knob - Black This part replaces 1735868. Price: $13.76 |
| 3 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 1890945. Price: $6.20 |
| 4 |
1749283 |
CHUTE CRANK CONTRO Not Available Price: |
| 5 |
714-0111 |
Cotter Pin This part replaces 1185147. Price: $4.20 |
| 7 |
1177625 |
ROLL PIN .125 x .7 Not Available Price: |
| 8 |
1773919 |
SHAFT-CHUT Not Available Price: |
| 9 |
1918480 |
Crank Support Price: Call Us |
| 10 |
1724870 |
WORM GEAR (LH) Not Available Price: |
| 11 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 12 |
1724885 |
ROLL PIN Not Available Price: |
| 13 |
1735869 |
SUPPORT-GEAR ZP Not Available Price: |
| 14 |
736-0262 |
FLAT WASHER .385X.870X.090 This part replaces 1100255. Price: $3.66 |
| 15 |
1732499 |
Locknut, 5/16-18 Price: $3.49 |
| 16 |
710-0216 |
HEX SCREW 3/8-16 X .75 This part replaces 1100068. Price: $3.93 |
| 18 |
1750692 |
DECAL-WARNING CHUT Not Available Price: |
| 22 |
1771723010 |
ASSM-CHUTE Not Available Price: |
| 23 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 25 |
1752461 |
Sems Screw , #10-24 x 7/8 Price: $4.05 |
| 26 |
712-0161 |
Nut-Hex Ins L-#10- This part replaces 1772333. Price: $4.02 |
| 27 |
1103959 |
Flat Washer, #10 Price: $4.02 |
| 28 |
1724869099 |
HOLD-DOWN NYLON CLIP This part replaces 1724869. Price: $9.86 |
| 30 |
1103195 |
SCR-HH 5/1 Not Available Price: |
| 31 |
941-3006 |
BEARING This part replaces 1185809. Price: $87.06 |
| 32 |
1739488 |
BEARING RETAINER Not Available Price: |
| 34 |
1750691 |
DECAL-WARNING AUGE Not Available Price: |
| 35 |
1750969 |
PLUG Not Available Price: |
| 36 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 1734398. Price: $3.93 |
| 37 |
710-0389 |
Screw, Carriage, 3/8-16 x .75 This part replaces 1186126. Price: $3.89 |
| 38 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 39 |
710-0260A |
Carriage Bolt, 5/16-18 x .62 This part replaces 1712059. Price: $3.71 |
| 40 |
1749282001 |
SCRAPER BLADE 22.88" LG Not Available Price: |
| 41 |
1728567001 |
RUNNER (42010) Not Available This part replaces 1728567010. Price: |
| 42 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 43 |
1720922 |
BEARING-SUPPORT Not Available Price: |
| 44 |
1185846 |
FLANGE BUSHING Not Available Price: |
| 45 |
1100257 |
FLAT WASHER Not Available Price: |
| 46 |
736-0921 |
Lock Washer, 1/2 This part replaces 1100245. Price: $3.90 |
| 47 |
1100053 |
BOAT, 1/2-13 x 3/4 Not Available Price: |
| 48 |
1111599 |
Hex Hd. Screw, 1/4-20 x 5/8 Price: $3.63 |
| 49 |
1185816 |
Special Washer Price: $3.15 |
| 50 |
1918434001 |
Left Auger Blade Price: Call Us |
| 51 |
1918435001 |
AUGER-RT S Not Available Price: |
| 52 |
1750515 |
Shear Bolt, 5/16-18 Price: $7.19 |
| 53 |
1740462001 |
Assm-impel Not Available Price: |
| 54 |
715-0143 |
Spring Spiral Pin, .25 x 1.25 This part replaces 1185348. Price: $4.04 |
| 56 |
1200033 |
Key-hi Pro Not Available Price: |
| 57 |
1733185 |
SCREW-SET SQ HD 5/16 Not Available Price: |
| 58 |
1750703 |
BELT GUIDE Not Available Price: |
| 59 |
1714243 |
BUSHING-NYLON Not Available Price: |
| 60 |
1185984 |
NUT-HFK Not Available Price: |
| 61 |
1753356 |
SLEEVE-PVC Not Available Price: |
| 62 |
1752460 |
Shim Not Available Price: |
| 63 |
1917356 |
V-Belt Price: $28.25 |
| 64 |
1725282 |
SHEAVE-AUGER This part replaces 1755282. Price: $78.75 |
| 65 |
1757859 |
Logo Decal Price: Call Us |
| 66 |
1714782 |
Swivel Block Price: $22.11 |
| 69 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 1724491. Price: $3.34 |
| 74 |
1719271 |
SHIM-1.75X Not Available Price: |
| 75 |
1737957 |
BUSHING-NYLON Not Available Price: |
| 76 |
1737499 |
VACUCUT GRIP Not Available Price: |
| 77 |
1723643 |
ADJUSTING LEVER Not Available Price: |
| 78 |
1771274 |
CHUTE-DEFLECTOR Not Available Price: |
| 79 |
1737940 |
SCR-TR HD Not Available Price: |
| 81 |
1757861 |
DECAL-HOUSING SIDE Not Available Price: |
| 85 |
1185224 |
Oil Seal Price: $13.35 |
| 86 |
741-0665 |
Needle Bearing This part replaces 1185374. Price: $18.80 |
| 87 |
1185841 |
RACE-THRUS Not Available Price: |
| 88 |
IH-324105-R92 |
Thrust Bearing, .75 x 1.25 x .078 This part replaces 1185431. Price: $9.94 |
| 89 |
1741774 |
Spacer Price: $9.93 |
| 90 |
1185842 |
WASHER Not Available Price: |
| 91 |
1118726 |
RETAINING RING INTERNAL Not Available Price: |
| 92 |
721-0175 |
SEAL Not Available This part replaces 1773207. Price: |
| 93 |
1773170001 |
COVER-FLAN Not Available Price: |
| 94 |
1735894001 |
CASE ONLY- Not Available Price: |
| 95 |
710-0433 |
Hex Head Screw, 1/4-20 x .625 This part replaces 1741832. Price: $4.02 |
| 96 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 97 |
1185728 |
BUSHING-FLANGE SIN Not Available Price: |
| 98 |
736-0745 |
WASHER 1.010X1.560X.060 This part replaces 1185815. Price: $11.28 |
| 99 |
1720933 |
WORM GEAR 20 TEETH Not Available Price: |
| 100 |
1720763 |
SPACER-1.503X.749X.56 Not Available Price: |
| 101 |
1100276 |
WOODRUFF KEY .25 Not Available Price: |
| 102 |
1185568 |
BEARING-NE Not Available Price: |
| 103 |
1105620 |
Pipe Plug, 1/4-18 Price: $3.66 |
| 104 |
1740468 |
Assm-shaft Not Available Price: |
| 105 |
1917108 |
SHAFT-AUGE Not Available Price: |
| 106 |
1185840 |
RACE-THRUST Not Available Price: |
| 107 |
1741775 |
SPACER-.81 Not Available Price: |
| 108 |
1112634 |
EXPANSION PLUG Not Available Price: |
