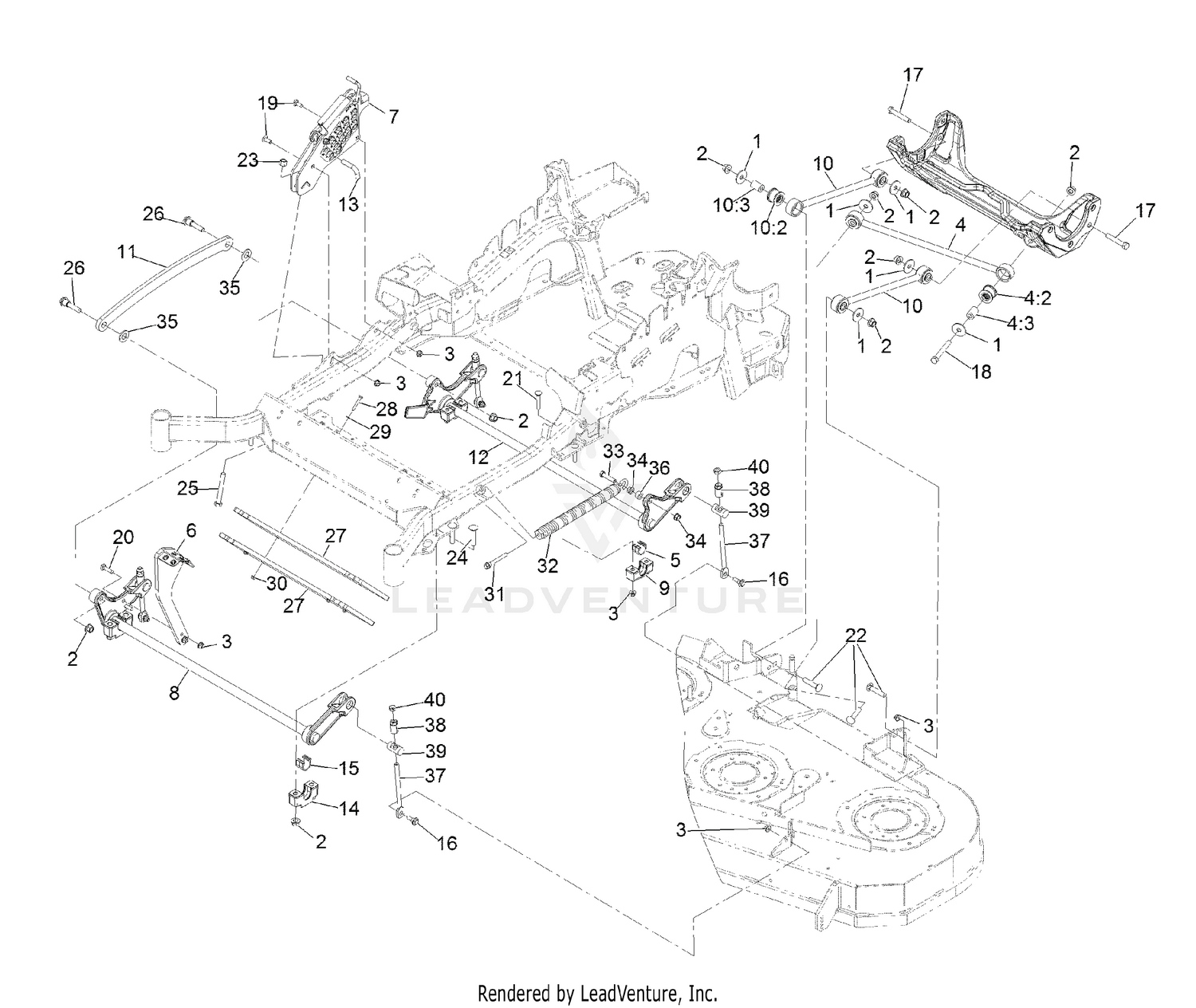

| Ref | Part Number | Description |
|---|
| 1 |
86-1990 |
WASHER-THRUST Price: $3.69 |
| 2 |
99-5107 |
Nut-Lock 1/2-13 Price: $1.69 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.19 |
| 4 |
109-5013 |
PANHARD ROD ASM Price: $135.99 |
| 5 |
109-7173 |
BEARING-CROSS SHAFT, REAR Price: $4.79 |
| 6 |
131-8812-01 |
LEVER-FOOT Price: $70.99 |
| 7 |
109-7438 |
HOC ASM Price: $261.99 |
| 8 |
126-2477-03 |
DECKLIFT-FRONT Price: $224.99 |
| 9 |
127-0553 |
SUPPORT-CROSS SHAFT, BEARING REAR Price: $13.99 |
| 10 |
109-7952 |
DECK STRUT ASM Price: $138.99 |
| 11 |
116-0797-03 |
LINK-LIFT, DECK Price: $126.99 |
| 12 |
116-2645-03 |
LIFT-DECK, REAR Price: $384.99 |
| 13 |
116-5584 |
PIN-HOC Price: $4.69 |
| 14 |
109-9409 |
SUPPORT-CROSS SHAFT, BEARING Price: $13.99 |
| 15 |
109-9410 |
BEARING-CROSS SHAFT, FRON Price: $4.79 |
| 16 |
109-9840 |
SCREW-SHOULDER, HHF Price: $4.79 |
| 17 |
325-12 |
SCREW-HH Price: $5.69 |
| 18 |
325-17 |
SCREW-HH Price: $5.69 |
| 19 |
3231-2 |
BOLT-CARR Price: $1.69 |
| 20 |
3231-4 |
SCREW-CARR Price: $3.59 |
| 21 |
3231-7 |
Bolt-Carriage 3/8-16 X 2 1/4 Price: $6.49 |
| 22 |
3233-34 |
SCREW-CARR Price: $8.99 |
| 23 |
3296-23 |
NUT-LOCK, NI Price: $0.89 |
| 24 |
116-1700 |
Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck Price: $4.79 |
| 25 |
116-0559 |
BOLT-TAP Price: $5.89 |
| 26 |
116-2022 |
SCREW-HHF, SHOULDER Price: $8.29 |
| 27 |
140-4963-01 |
Weight-Toe Board This part replaces 132-5075-01. Price: $128.99 |
| 28 |
321-10 |
SCREW-HH Price: $1.29 |
| 29 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 30 |
104-7201 |
NUT-HF Price: $1.29 |
| 31 |
92-7674 |
BOLT-SHOULDER Price: $2.59 |
| 32 |
116-0000 |
SPRING-EXTENSION Price: $130.99 |
| 33 |
109-9065 |
SCREW-HH Price: $3.09 |
| 34 |
32128-37 |
NUT-HF Price: $3.89 |
| 35 |
3256-28 |
WASHER-FLAT Price: $3.29 |
| 36 |
116-2695 |
SPACER Price: $17.99 |
| 37 |
109-8007 |
LINK-ADJUSTER, DECK LIFT Price: $14.99 |
| 38 |
109-7840 |
ADJUSTER-LIFT, DECK Price: $7.09 |
| 39 |
109-8353 |
TRUNNION Price: $13.99 |
