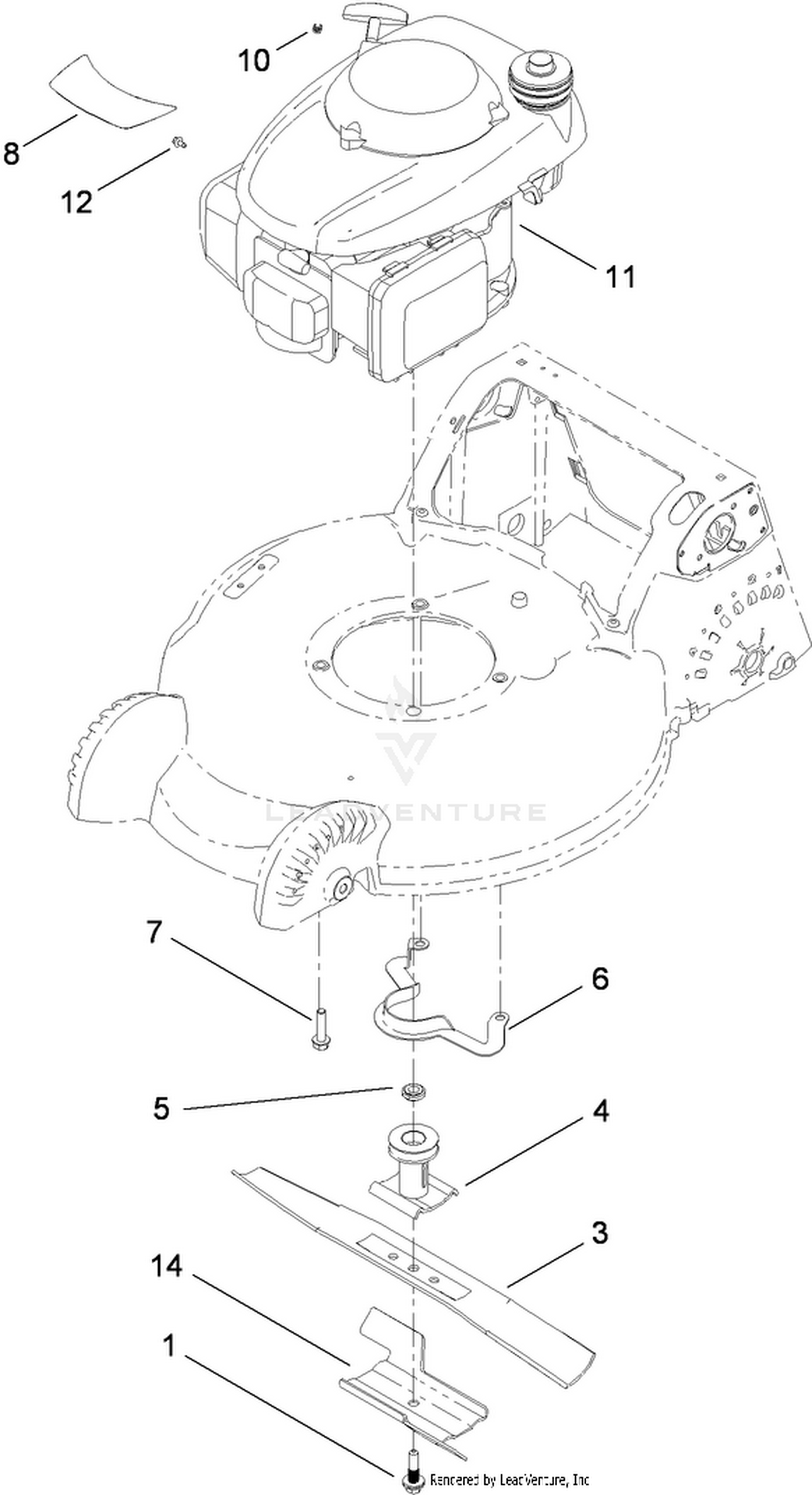

Engine and Blade Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 145-5695 | BOLT-BLADE, SEMS This part replaces 117-5270. Price: $3.19 |
| 3 | 133-8182-03 | BLADE-21IN This part replaces 108-0954-03. Price: $24.99 |
| 4 | 114-2774 | DRIVER-BLADE Price: $32.99 |
| 5 | 106-3999 | SPACER-DRIVER Price: $3.19 |
| 6 | 108-8110-03 | GUIDE-BELT Price: $14.99 |
| 7 | 32144-102 | SCREW-HWH Price: $3.19 |
| 8 | 120-1949 | DECAL-ENGINE Price: $15.99 |
| 10 | 2210-316 | STOP-ROPE This part replaces 92-1701. Price: $6.49 |
| 12 | 98-1394 | SCREW-HWH Price: $3.49 |
