Home / OPE / *Legacy / Tractors / Attachments / 50333 33" Tiller Attachment / Gear Case Assembly

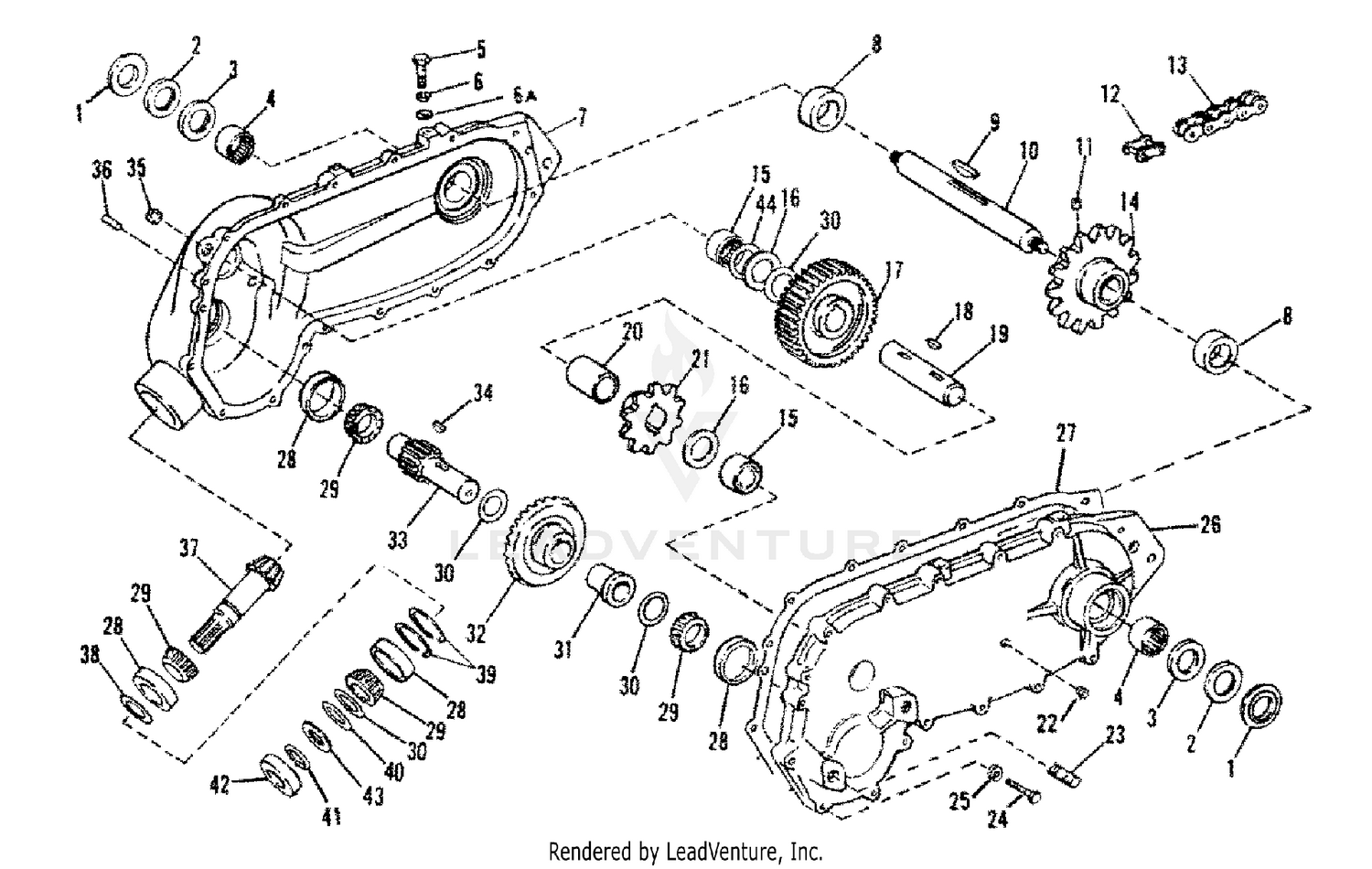

Gear Case Assembly

Gear Case Assembly

Parts (38)

RefPart NumberDescription
1 1718153 Seal Washer Price: Call Us
2 GW-9618099 OIL SEAL -TILLERSHA This part replaces 1185630. Price: $17.95
3 721-0110 OIL SEAL -1.25 ID x 2.004 OD Not Available This part replaces 1185629. Price:
4 1185721 Needle Bearing Price: Call Us
6A N/A UNKNOWN
8 1723961 WASHER-THRUST 2X1.27X.433 Not Available Price:
9 1723622 KEY-HI PRO .31X2.0 Not Available Price:
10 1727908 Tine Shaft Price: Call Us
11 1103494 SCR-SET 3/ Not Available Price:
12 1718152 CHAIN-ROLL Not Available Price:
13 1718151 CHAIN-ROLL Not Available Price:
15 1185720 Needle Bearing Price: Call Us
16 1723960 THRUST WASHER Not Available Price:
17 1718393 GEAR-39TOOTH Not Available Price:
18 1723959 KEY-.312 SQ X 1.063 Not Available Price:
19 1723955 SHAFT Not Available Price:
20 1723956 SPACER-1.3 Not Available Price:
21 1718147 SPROCKET-1 Not Available Price:
22 737-04178 PIPE PLUG 1/8-27 HEX SOC Not Available This part replaces 1185741. Price:
23 1113755 STUD Not Available Price:
27 1718389 GASKET Not Available Price:
28 1177343 BEARING-CU Not Available Price:
29 1177262 Bearing Cone Price: Call Us
30 1718781 SHIM-.005 Not Available Price:
31 1723954 SPACER-1.6 Not Available Price:
32 1718391 BEVEL GEAR Not Available Price:
33 1723953 Pinion and Shaft Price: Call Us
34 1708382 WOODRUFF KEY .25X1 Not Available Price:
35 1105678 PIPE PLUG Not Available Price:
36 1185206 PIN-DRIVE Not Available Price:
37 1718390 PINION-13 TOOTH Not Available Price:
38 1719443 SHIM-2.313X1.87X.0 Not Available Price:
39 1185733 RETAINING RING Not Available Price:
40 736-0246 FLAT WASHER 1.25 ID x 2.0 OD x .060 Not Available This part replaces 1720529. Price:
41 1185732 RING-RET Not Available Price:
42 1185734 OIL SEAL Not Available Price:
43 1732288 THRUST-RAC Not Available Price:
44 1719271 SHIM-1.75X Not Available Price:
